Home
>>
Ford Truck
>>
2012
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Diagrams
>>

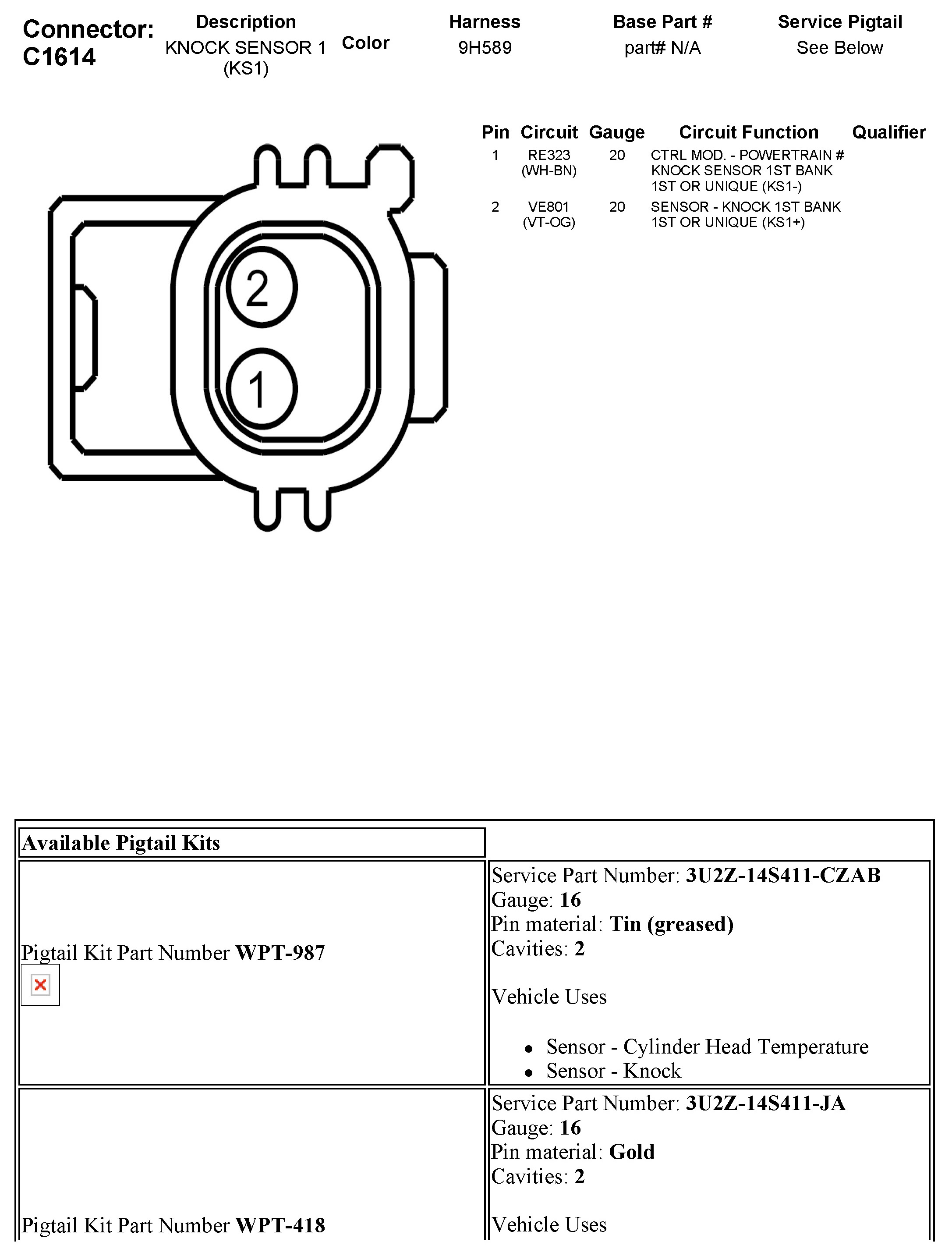

C1614 Knock Sensor (KS) 1
C1614 Knock Sensor (KS) 1
