Ford Truck
>>
2012
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

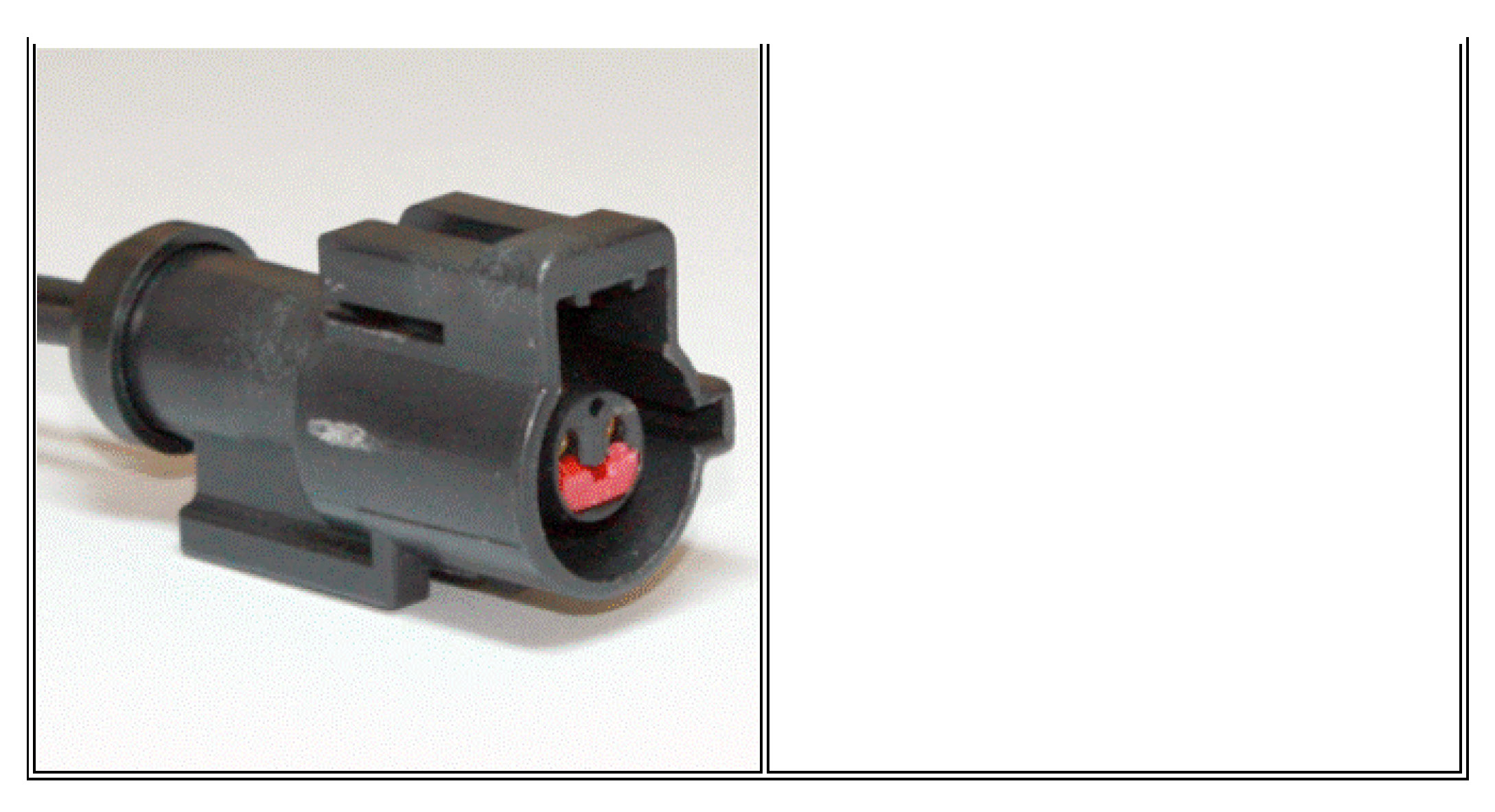

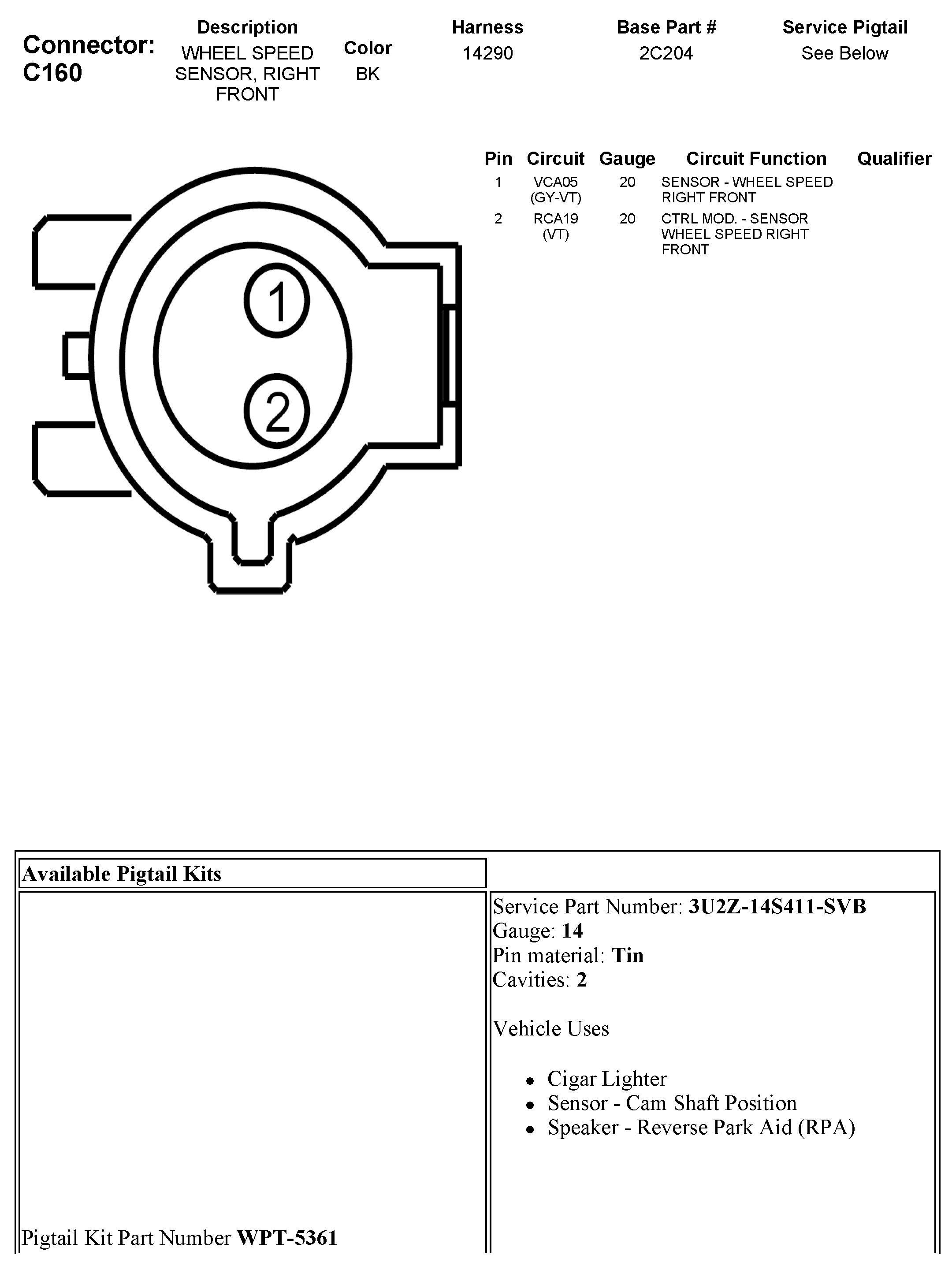

C160 Wheel Speed Sensor, Right Front
C160 Wheel Speed Sensor, Right Front
