Ford Truck
>>
2012
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>

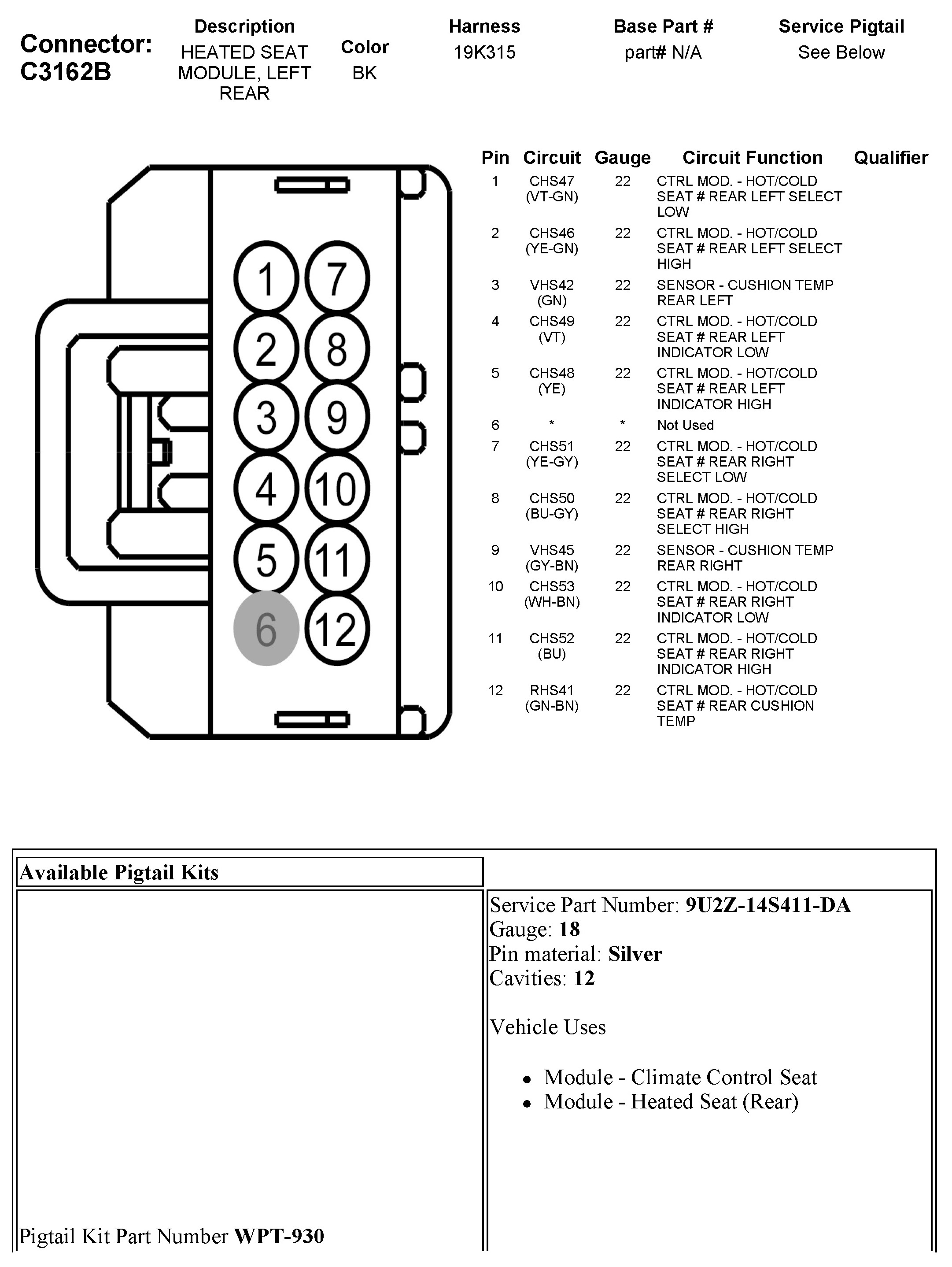

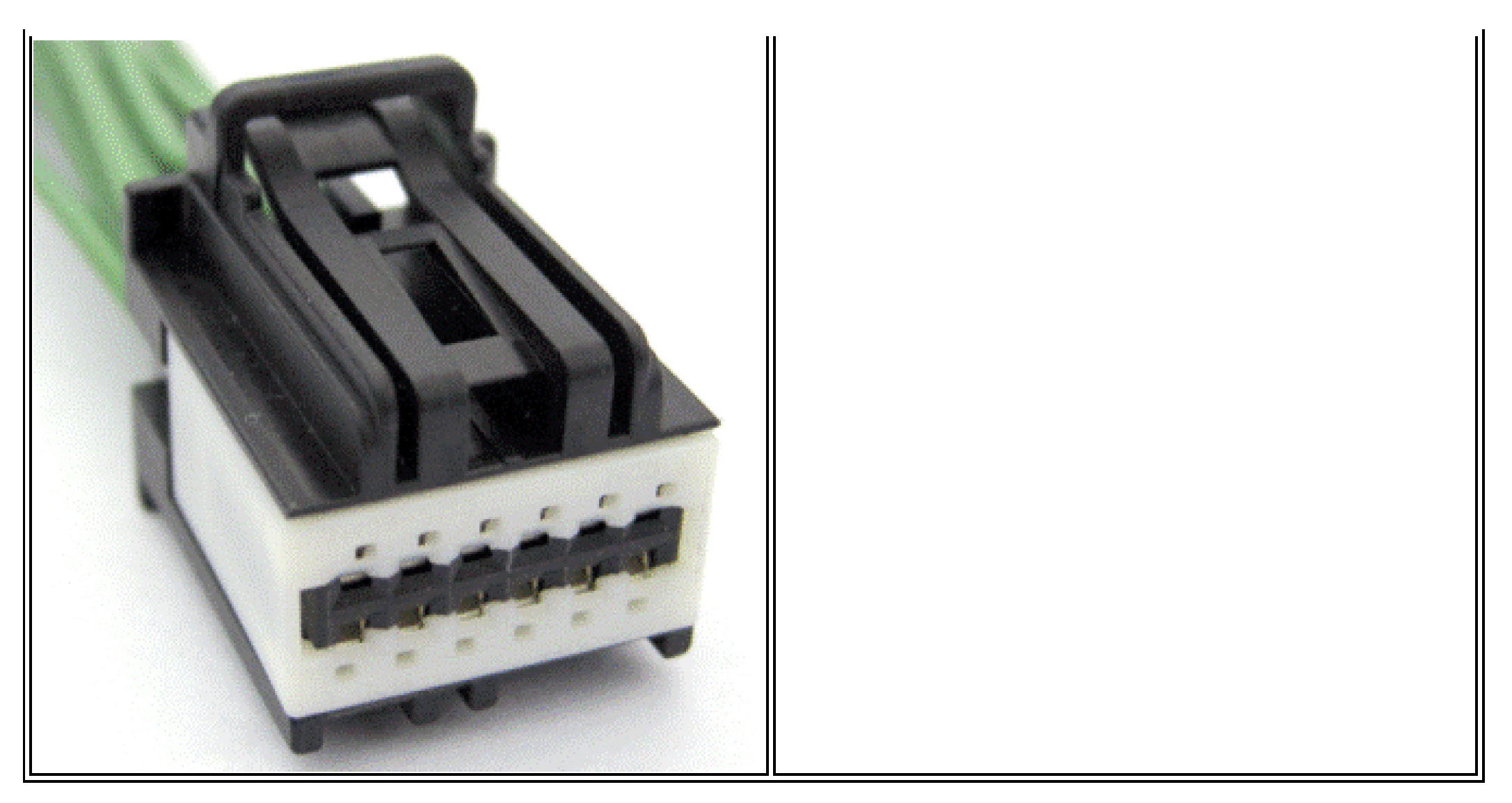

C3162B Heated Seat Module, Left Rear
C3162B Heated Seat Module, Left Rear
