Home
>>
Ford Truck
>>
2012
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
>>

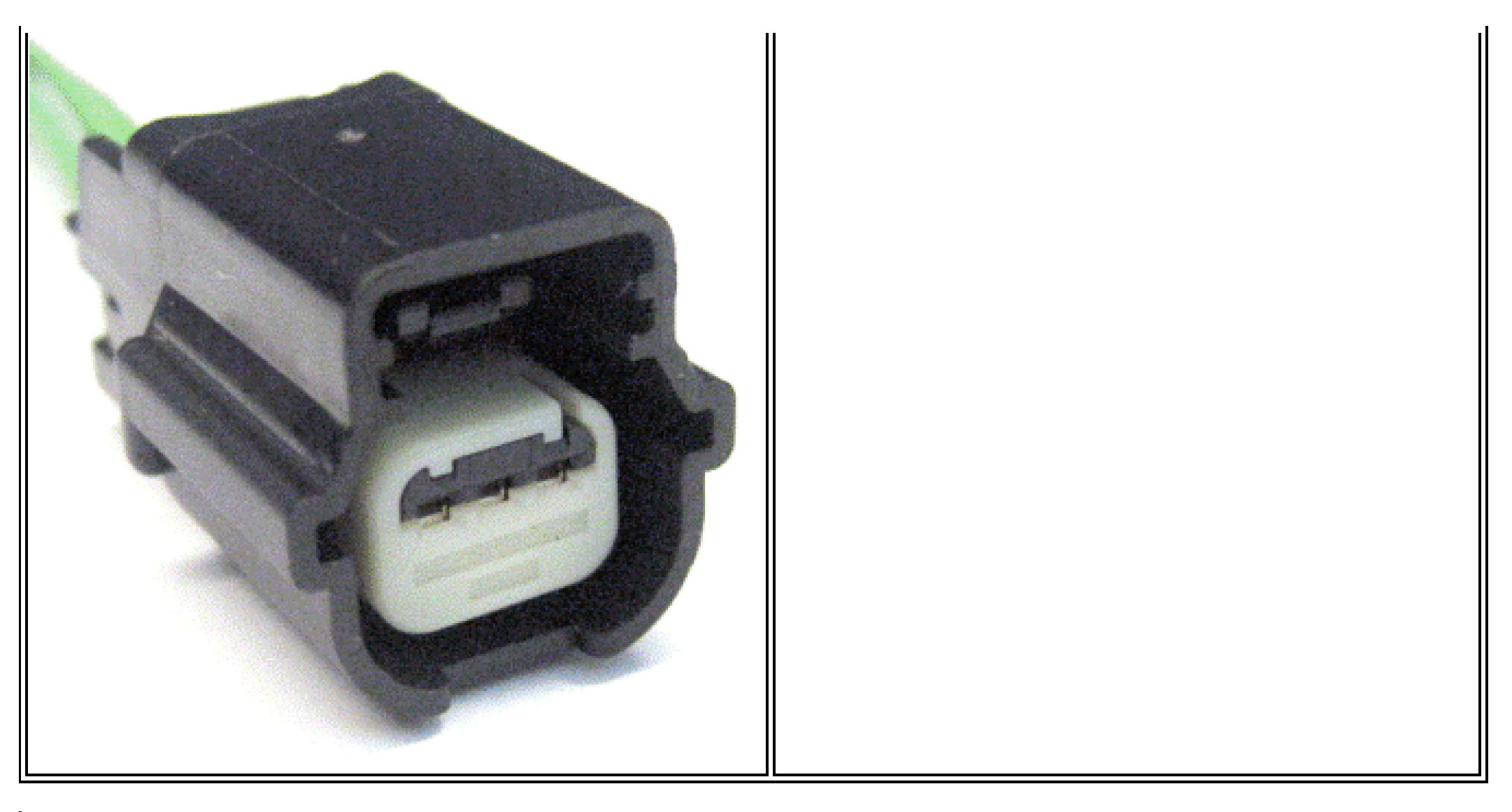

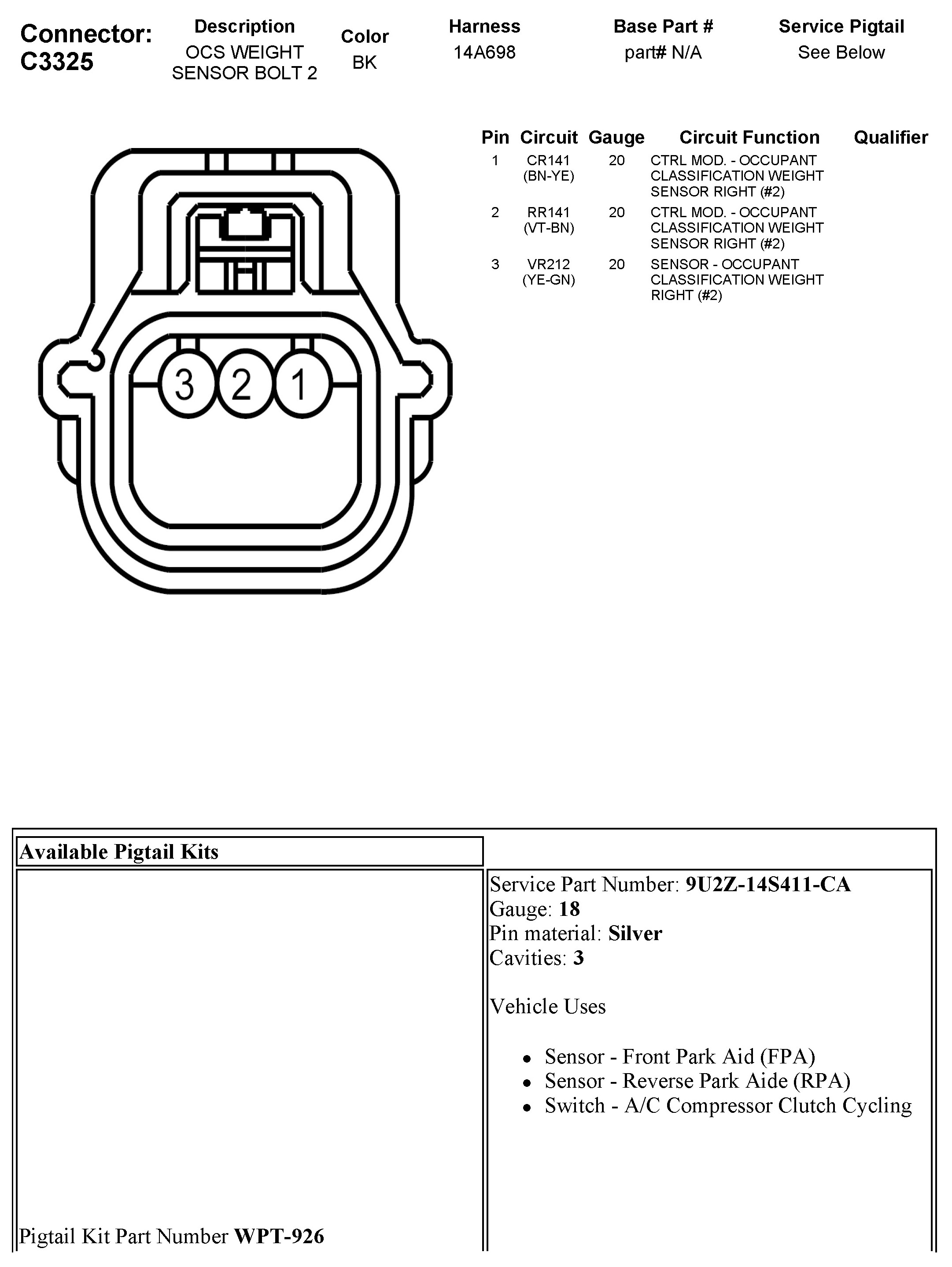

C3325 OCS Weight Sensor Bolt 2
C3325 OCS Weight Sensor Bolt 2
