Home
>>
Ford Truck
>>
2012
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
>>

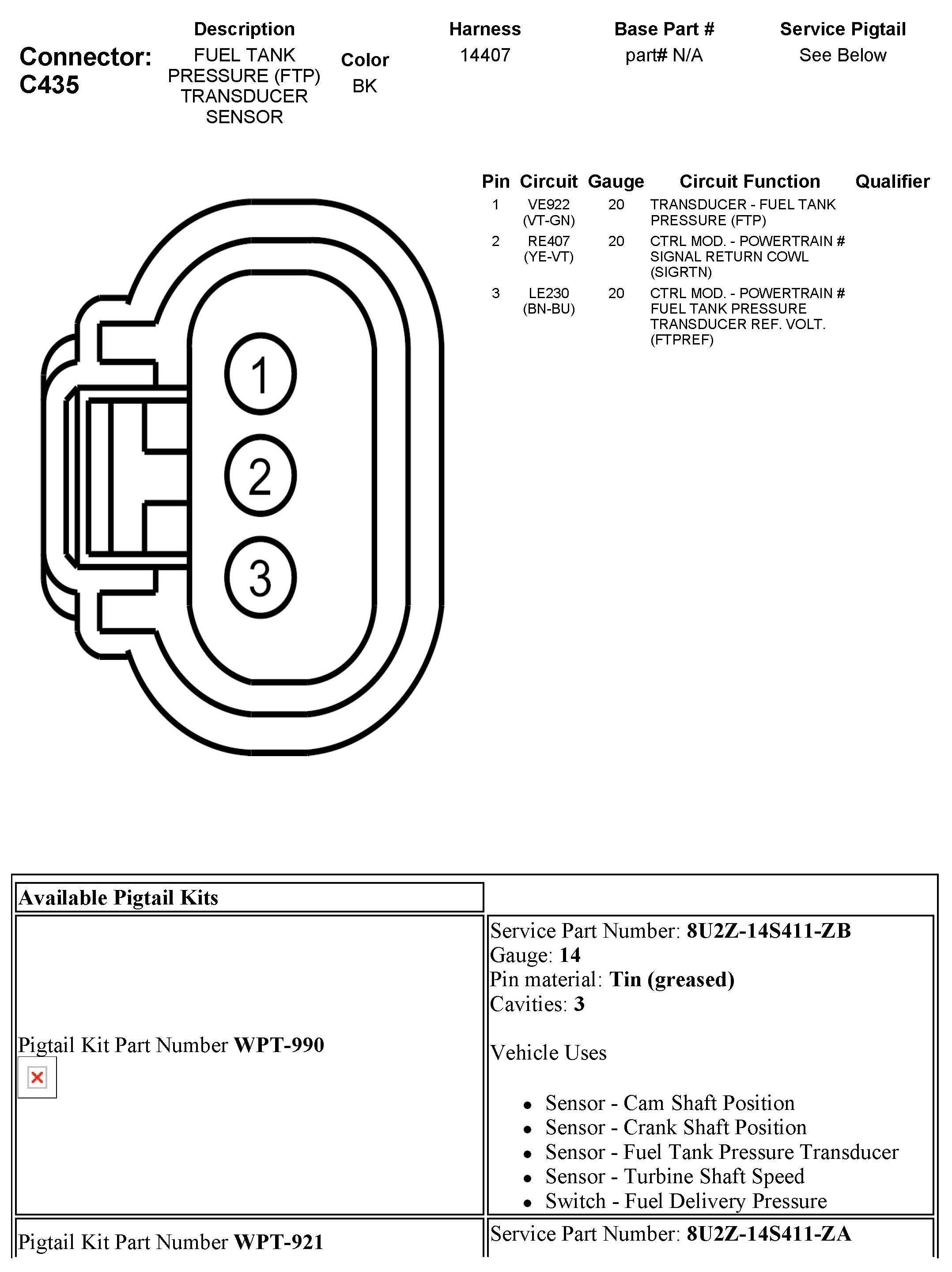

C435 Fuel Tank Pressure (FTP) Transducer Sensor
C435 Fuel Tank Pressure (FTP) Transducer Sensor
