Impact Sensor
>>

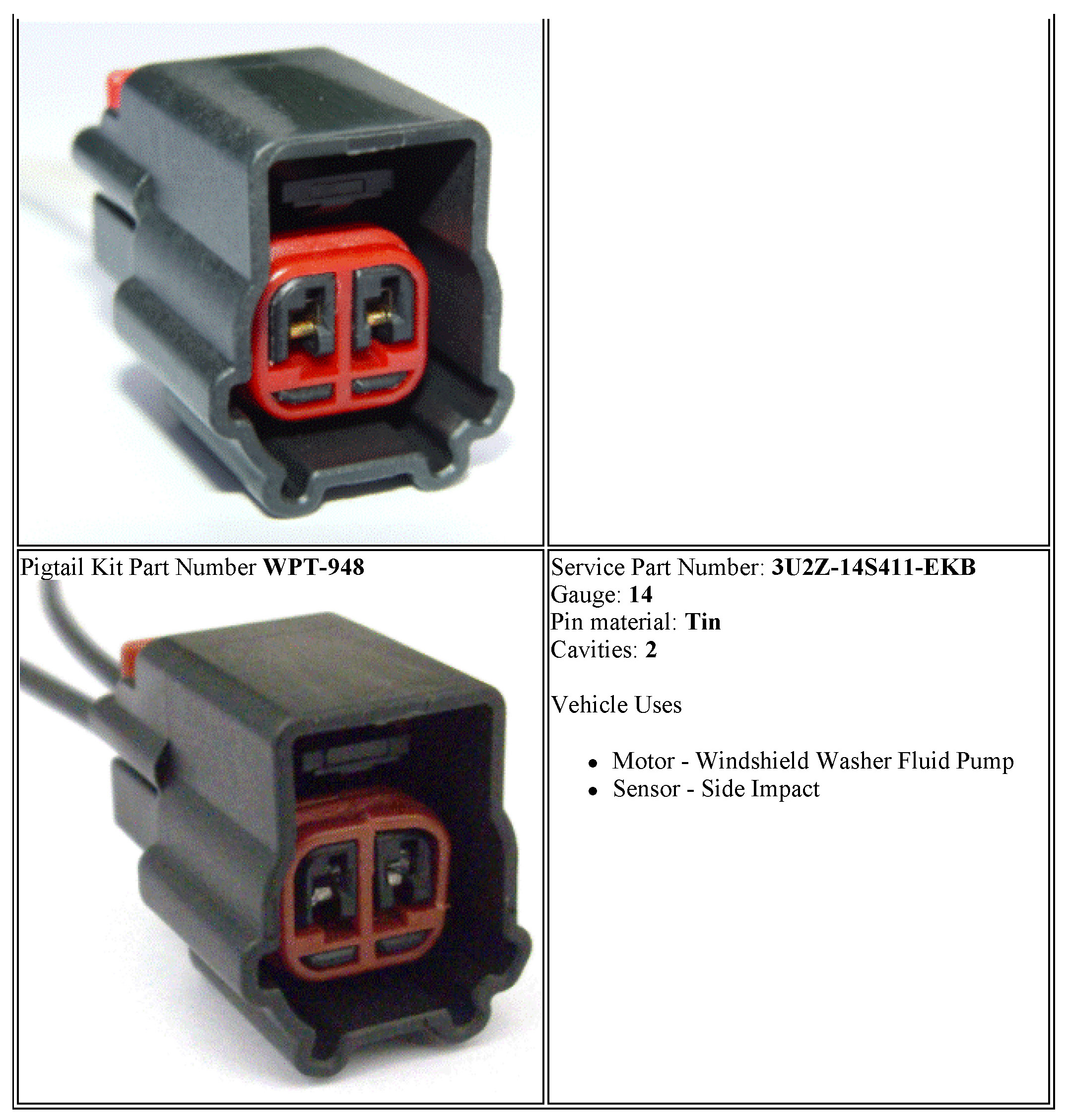

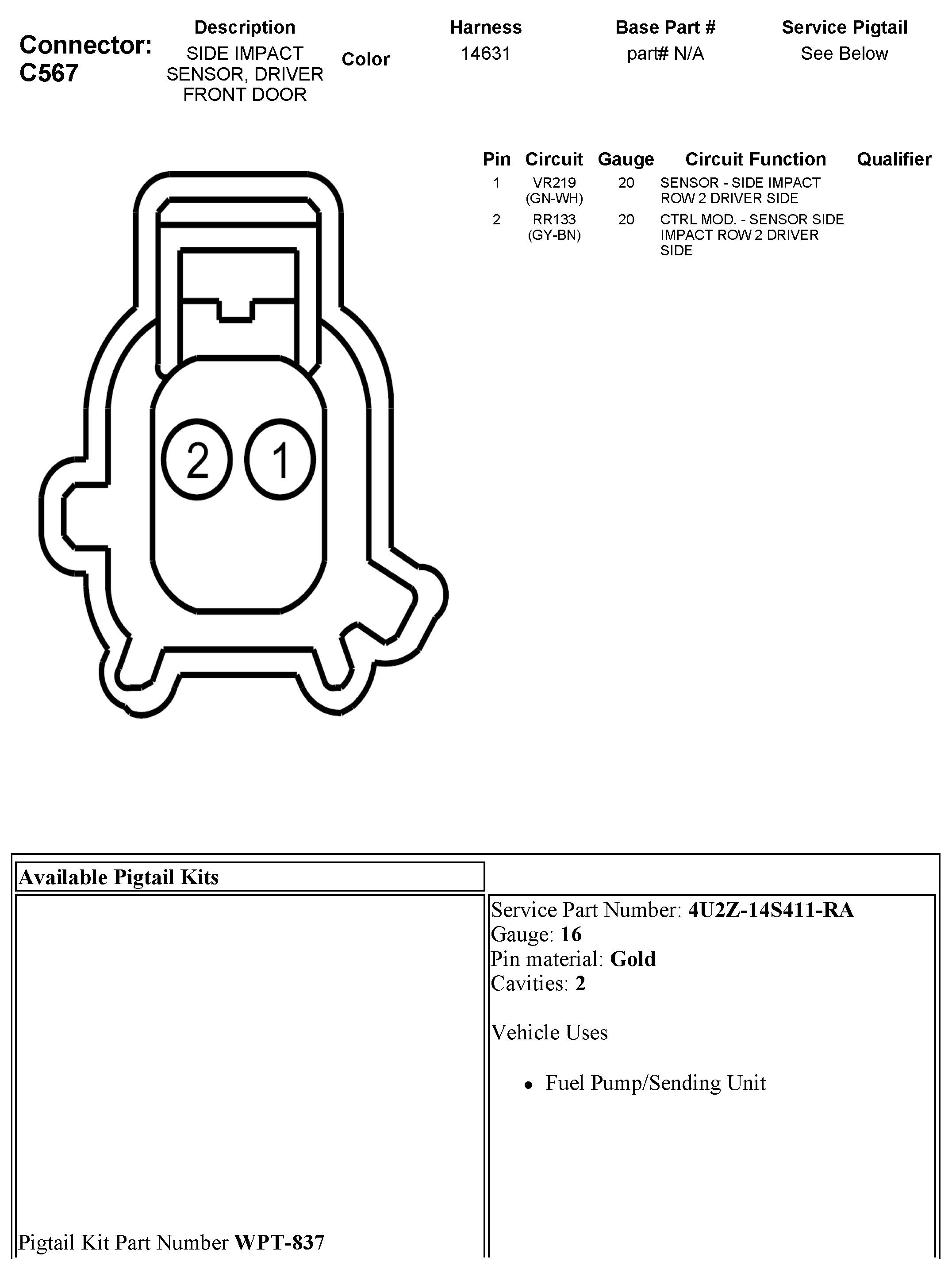

C567 Side Impact Sensor, Driver Front Door
C567 Side Impact Sensor, Driver Front Door
