Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

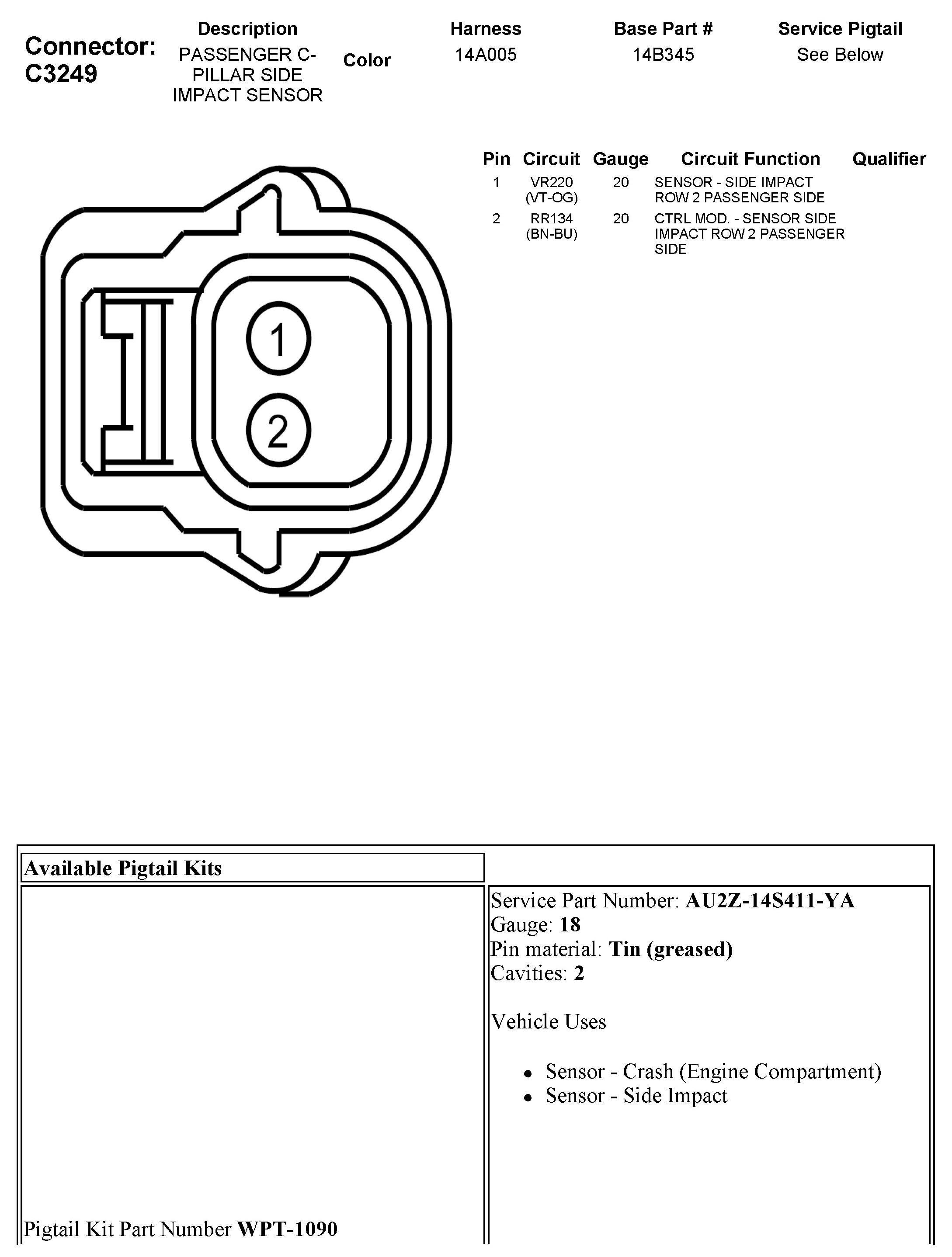

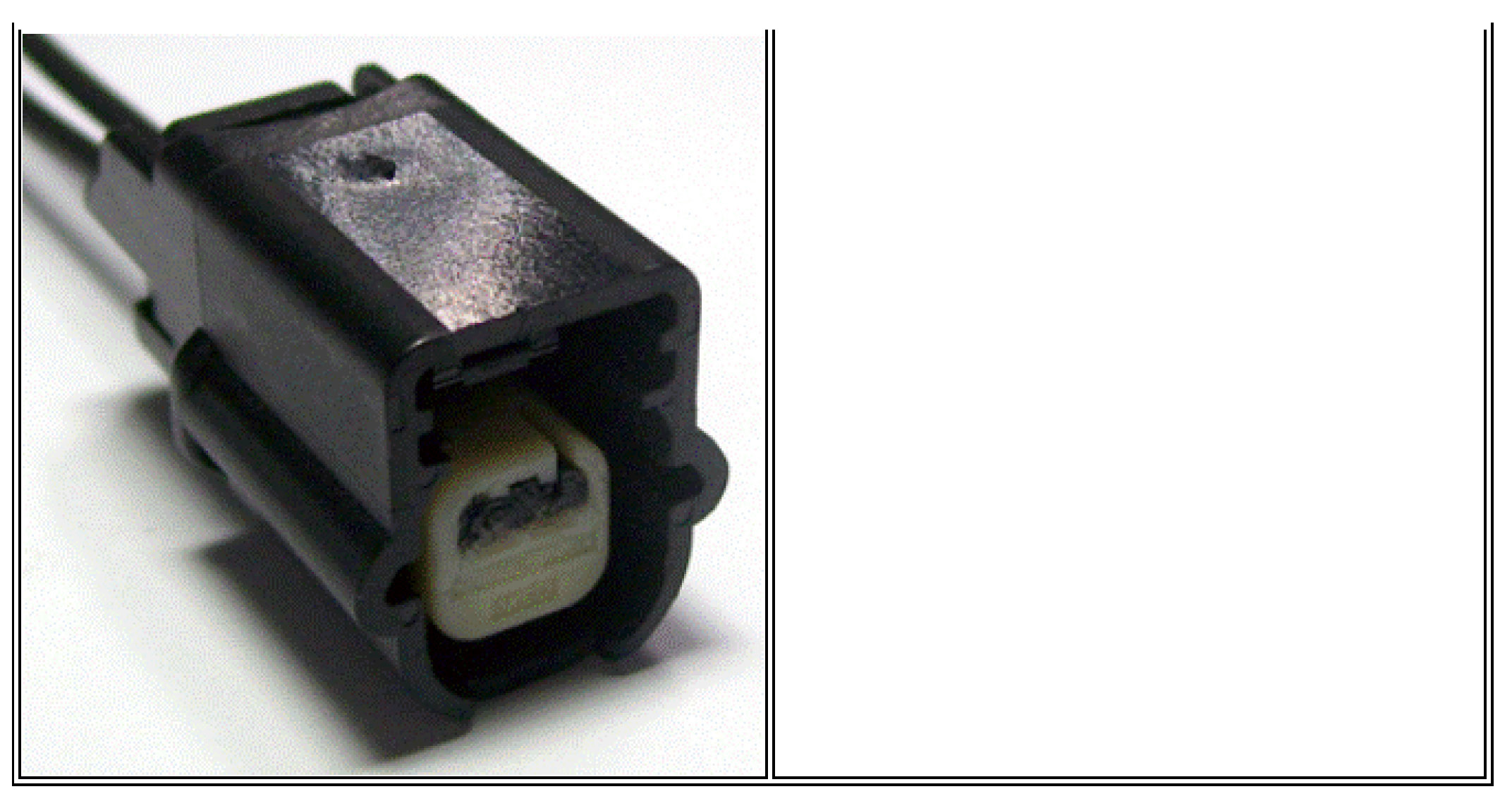

C3249 Passenger C-Pillar Side Impact Sensor
C3249 Passenger C-Pillar Side Impact Sensor
