Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Gauge Sender
>>

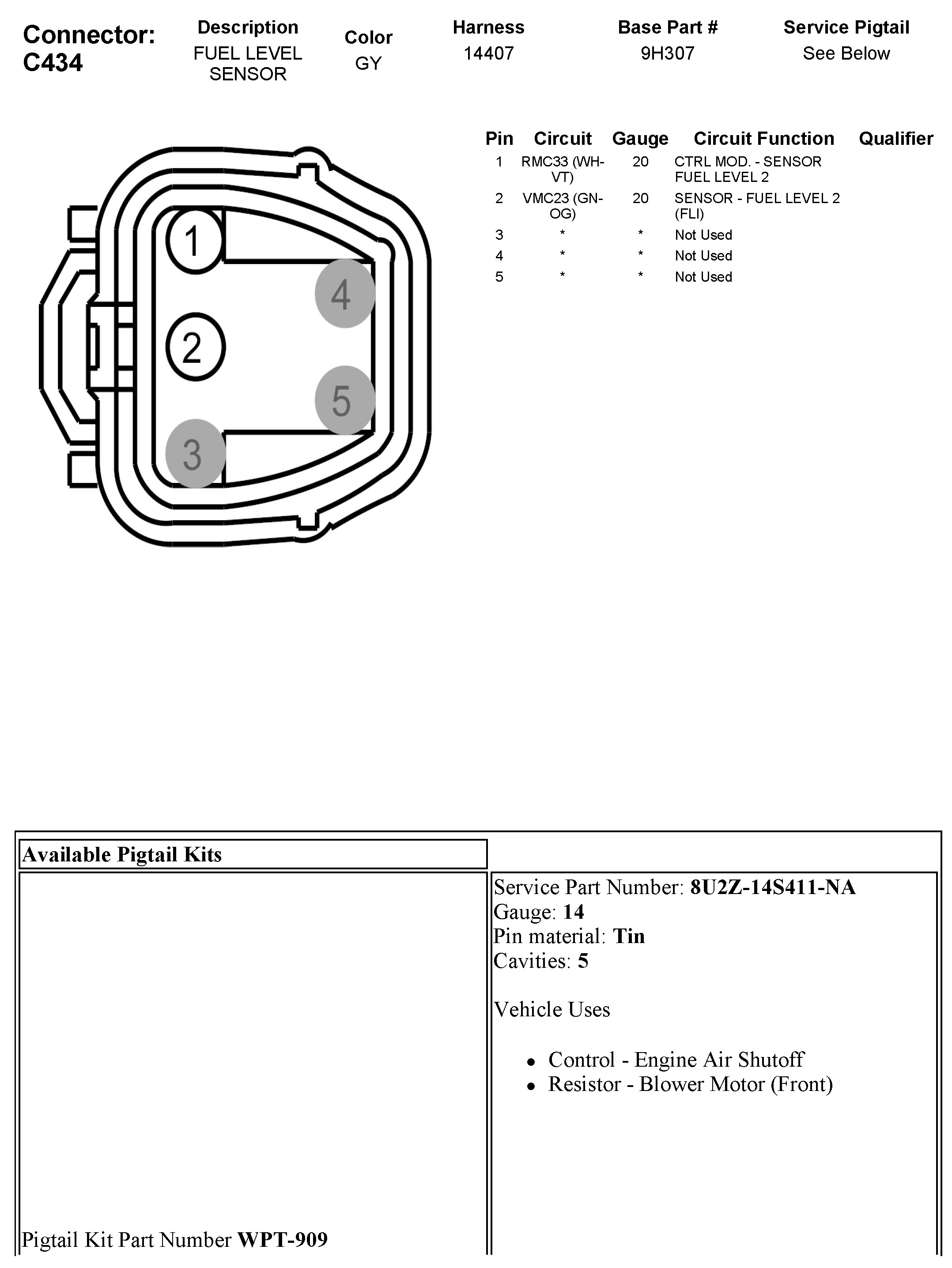

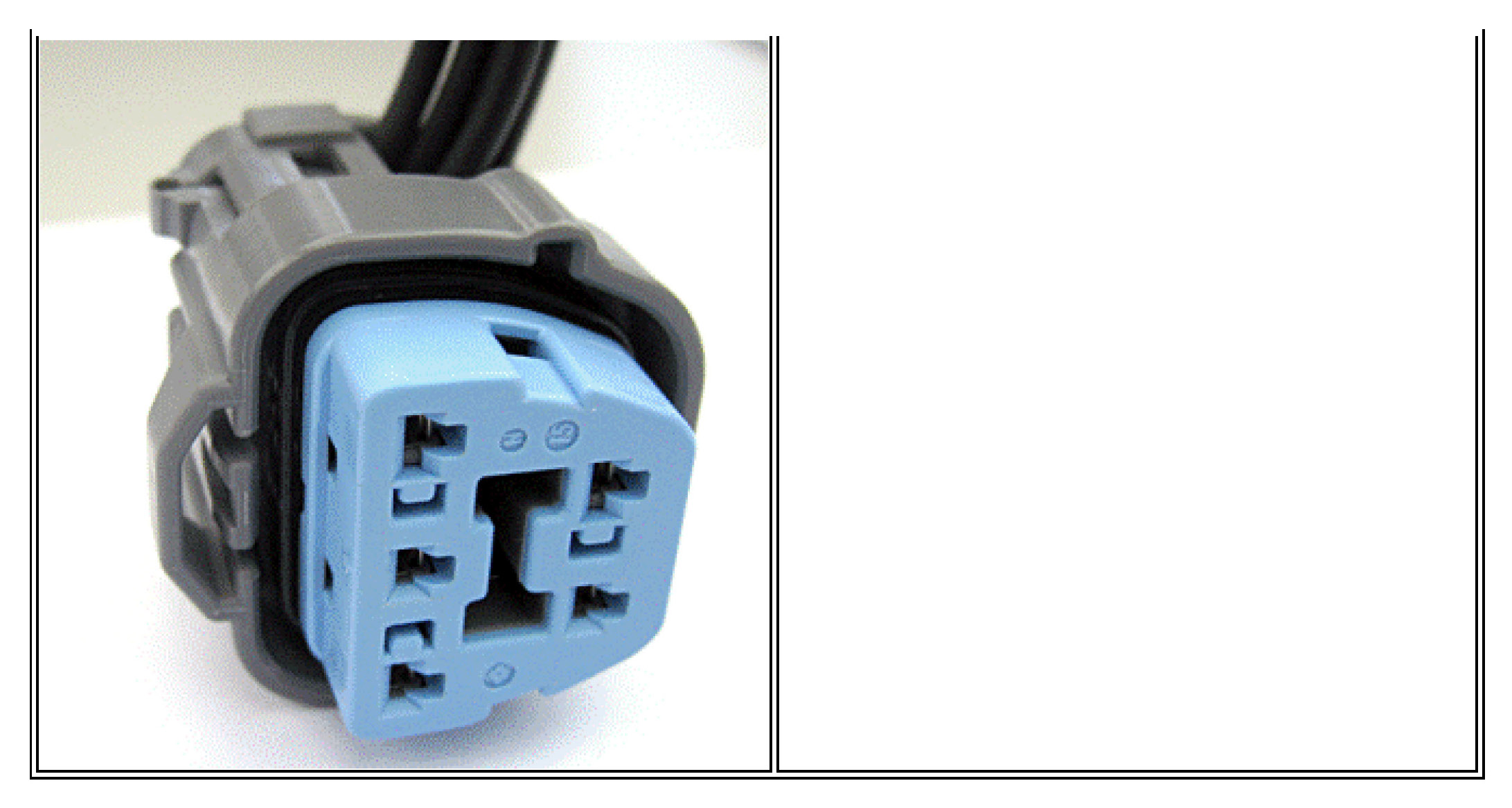

C434 Fuel Level Sensor
C434 Fuel Level Sensor
