Ford Truck
>>
2011
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Wheels and Tires
>>
Tire Monitoring System
>>
Tire Pressure Module
>>
Diagrams
>>

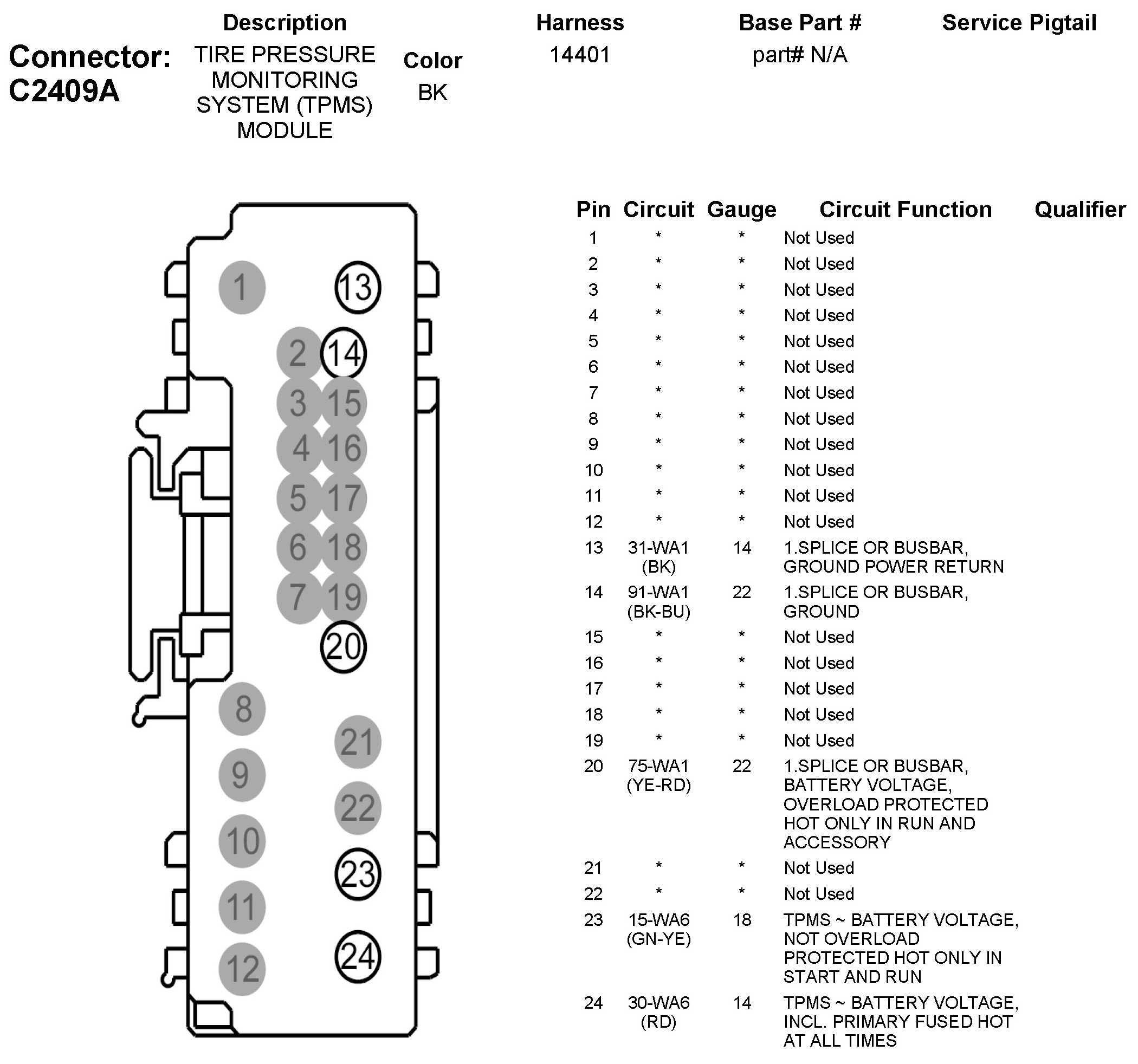

C2409A Tire Pressure Monitoring System (TPMS) Module
C2409A Tire Pressure Monitoring System (TPMS) Module
