Ford Truck
>>
2011
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>

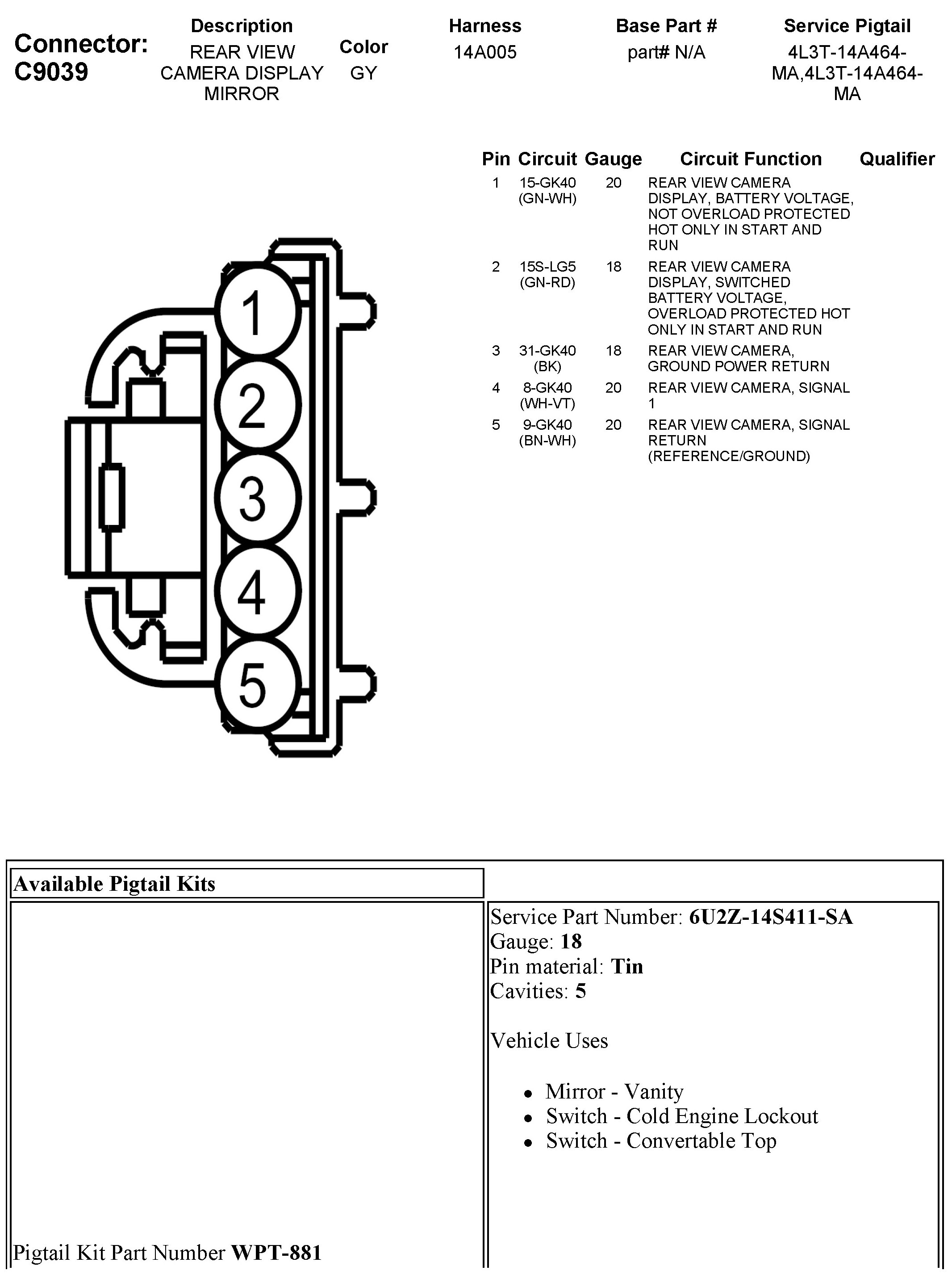

C9039 Rear View Camera Display Mirror
C9039 Rear View Camera Display Mirror
