Home
>>
Ford Truck
>>
2011
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>

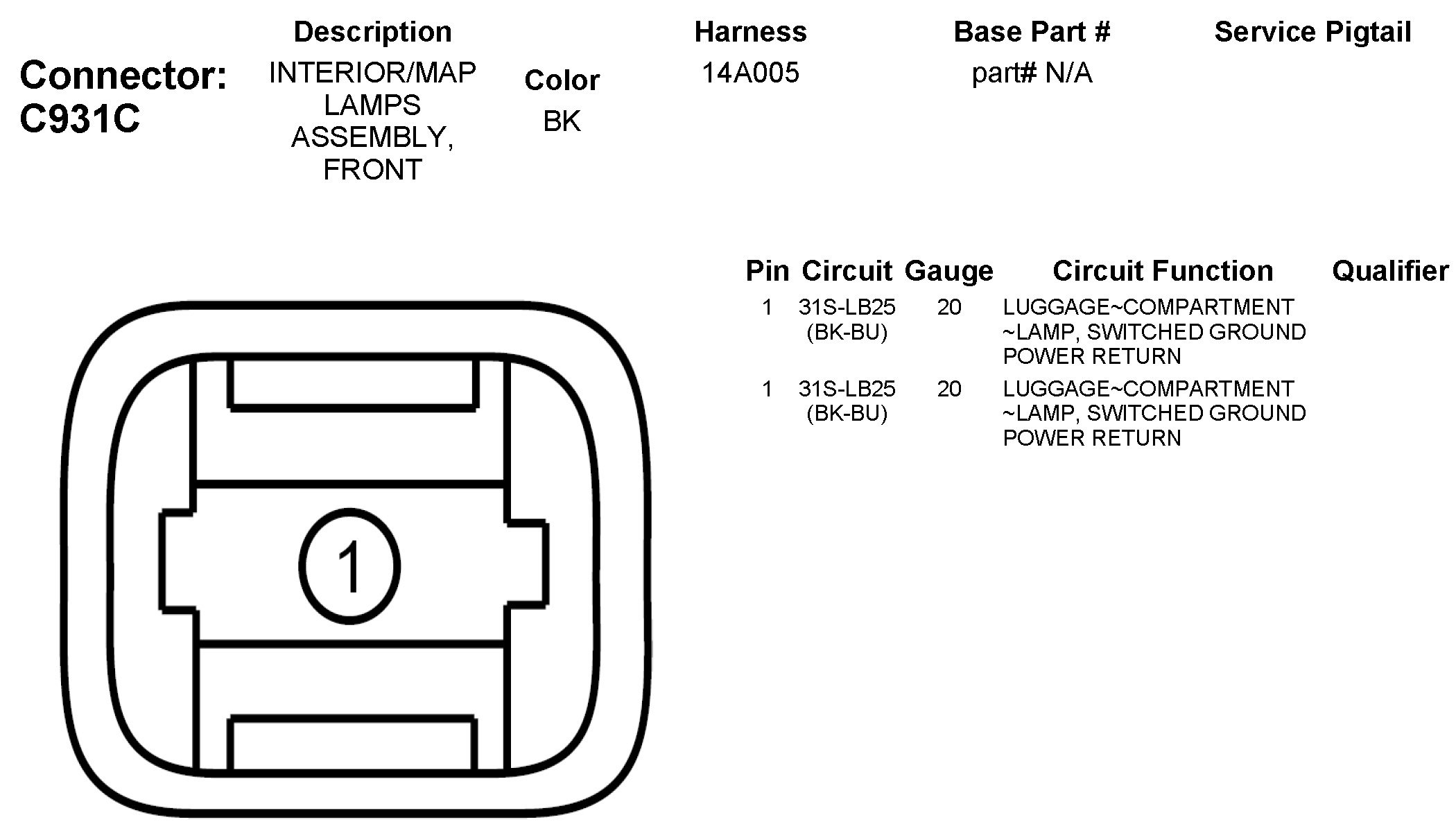

C931C Interior/MAP Lamps Assembly, Front
C931C Interior/MAP Lamps Assembly, Front
