Ford Truck
>>
2011
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
>>

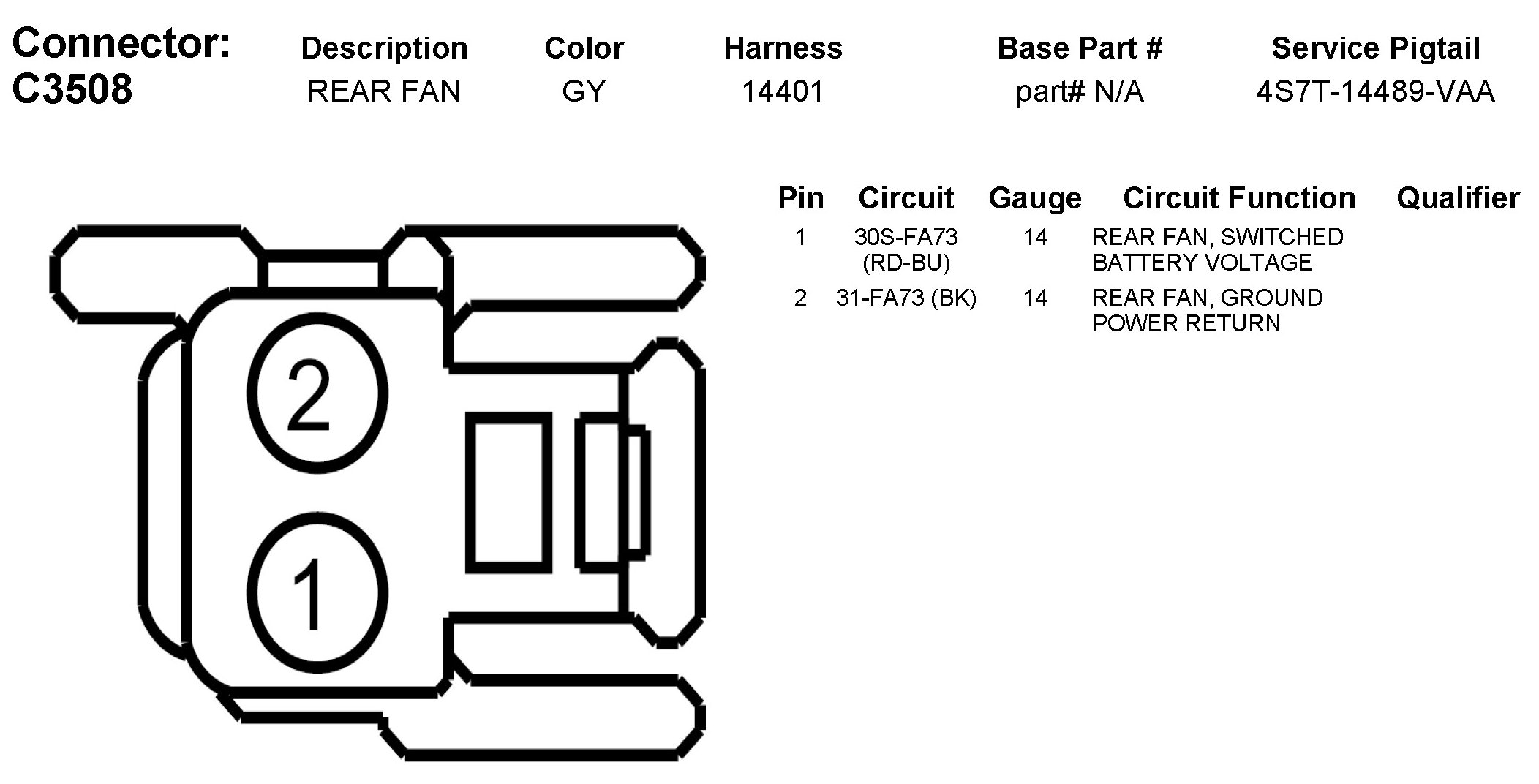

C3508 Rear Fan
C3508 Rear Fan
