Power Steering Pump Pulley

Power Steering Pump Pulley - 2.3L













Removal

1. Remove the air cleaner outlet pipe. For additional information, refer to Intake Air Distribution and Filtering [1][2]Diagrams.

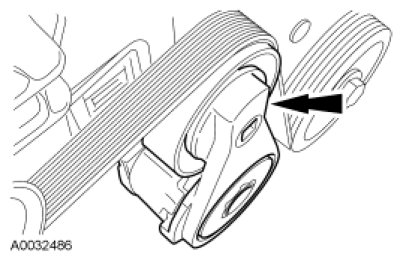

2. Rotate the accessory drive belt tensioner counterclockwise and position the accessory drive belt aside.





3. NOTICE: Do not install a power steering pump pulley that has been removed and installed twice or pulley failure and/or pump damage may occur. Inspect the pulley for paint marks in the web area near the hub. If there are 2 paint marks, discard the pulley and install a new one. If there is 1 paint mark or no paint marks, use a paint pencil to mark the web area of the pulley near the hub.

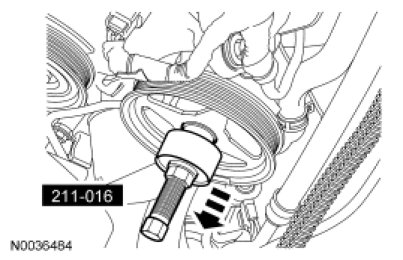

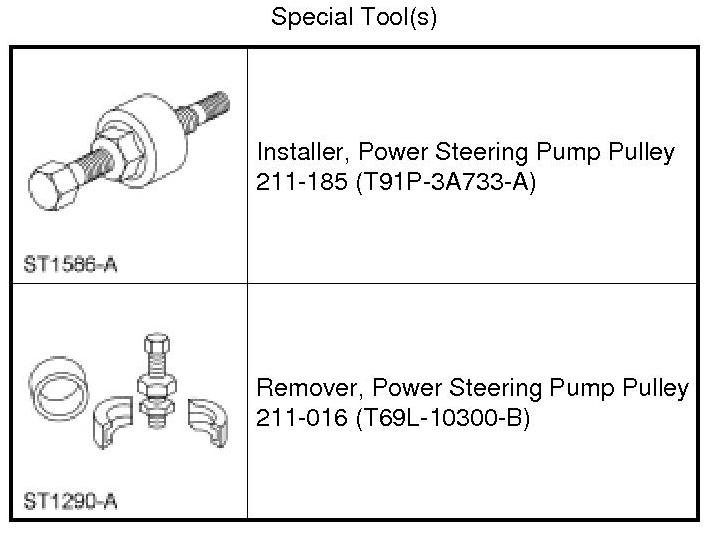

Using the Power Steering Pump Pulley Remover, remove the power steering pump pulley.





Installation

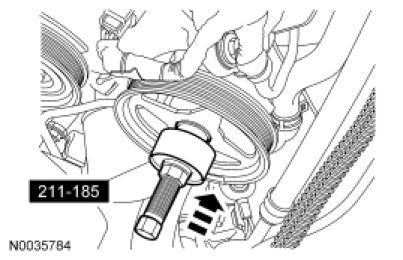

1. Using the Power Steering Pump Pulley Installer, install the power steering pump pulley.

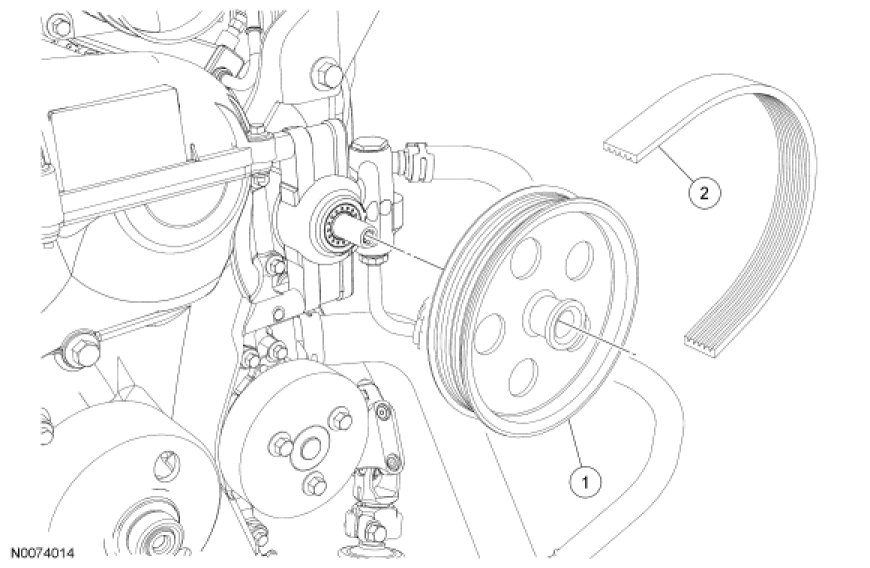

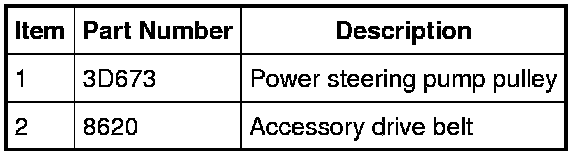

2. NOTE: For additional information on accessory drive belt routing, refer to Accessory Drive [1][2]Diagrams.

Rotate the tensioner counterclockwise and position the belt on the power steering pump pulley.





3. Install the air cleaner outlet pipe. For additional information, refer to Intake Air Distribution and Filtering [1][2]Diagrams.
