Home
>>
Ford Truck
>>
2011
>>
Ranger 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

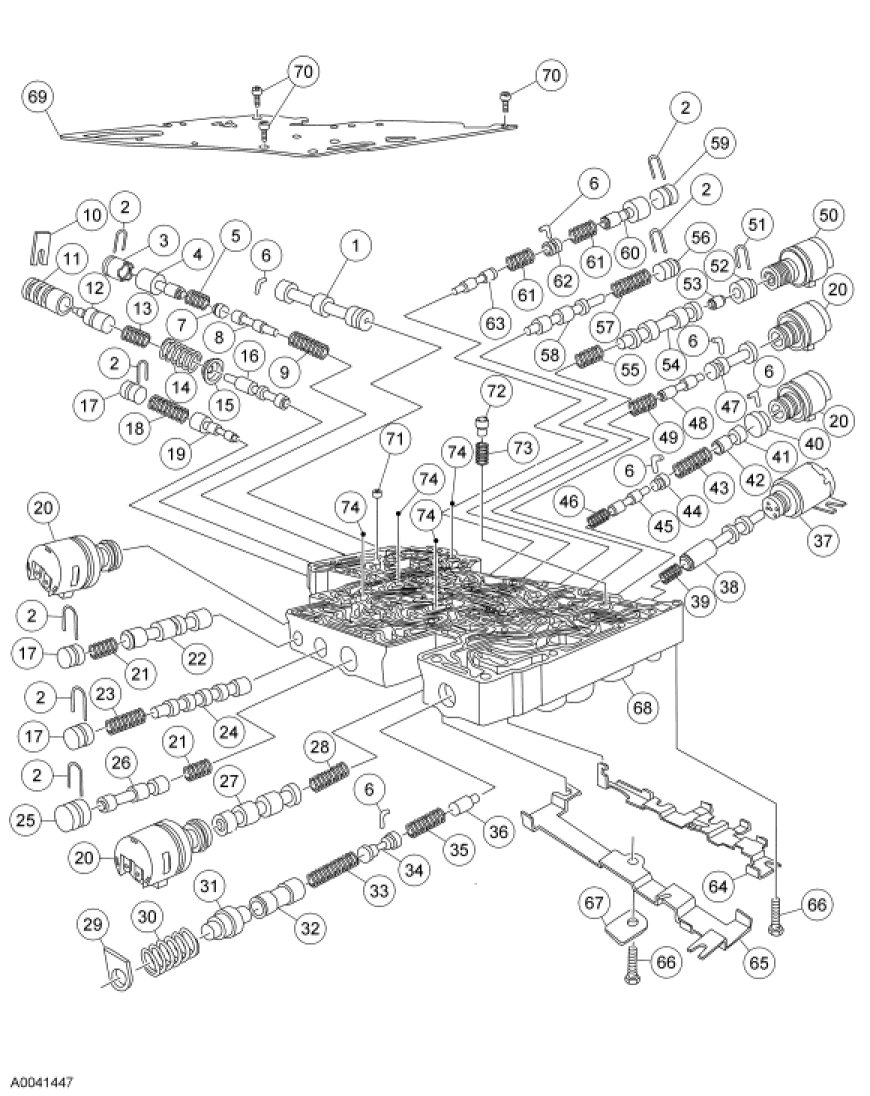

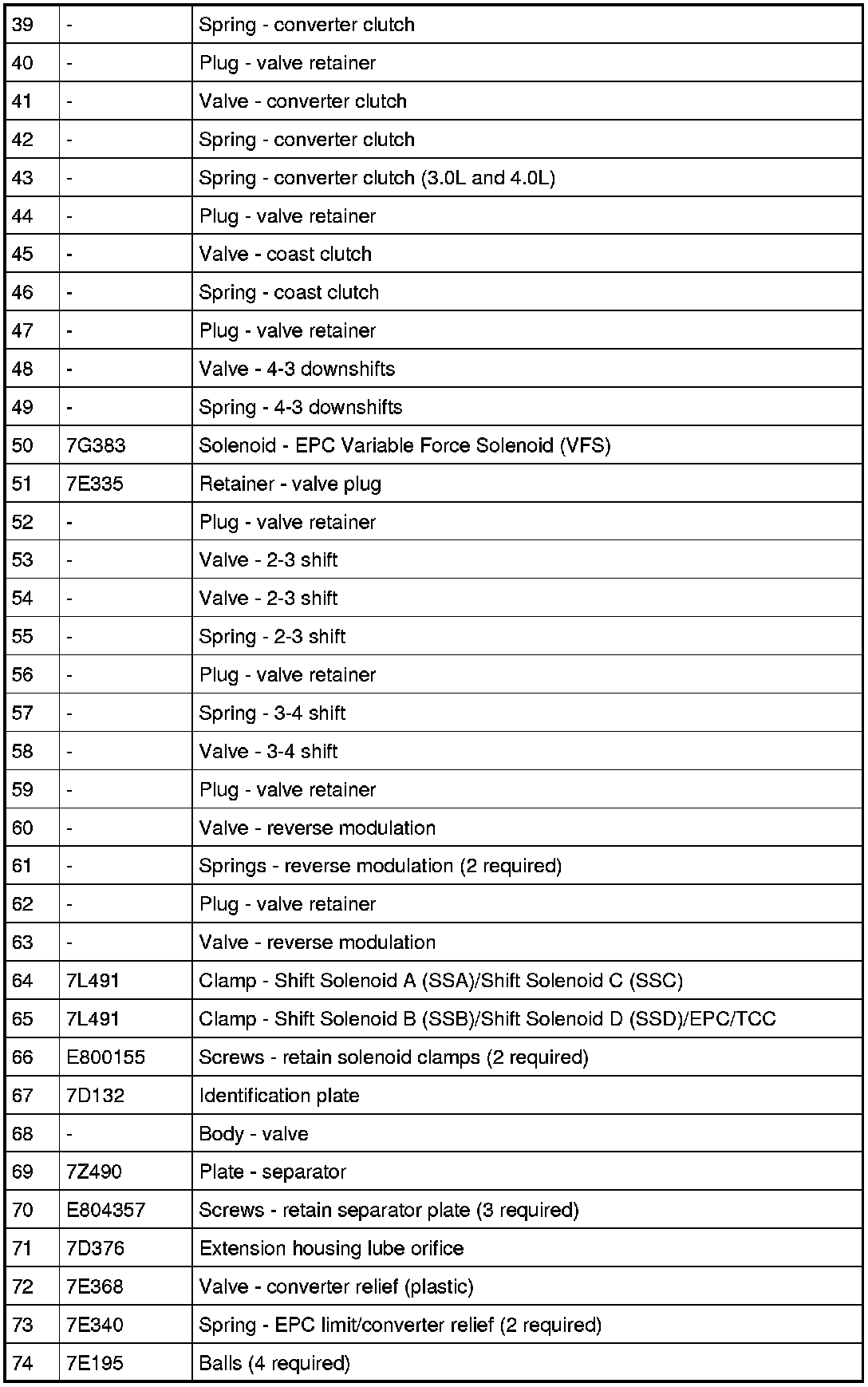

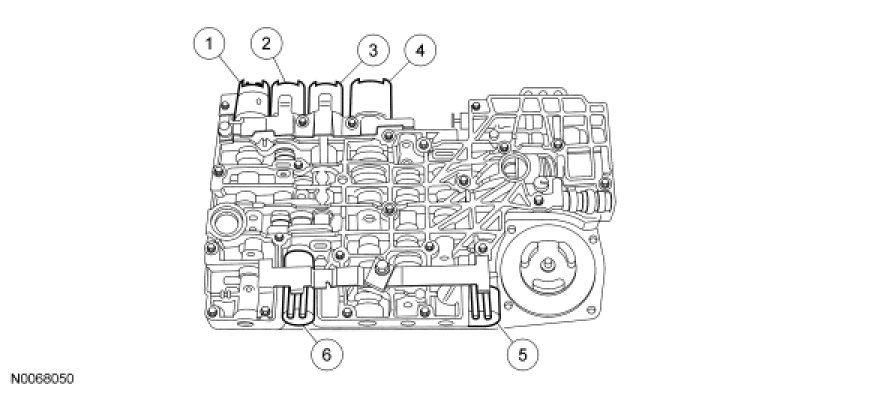

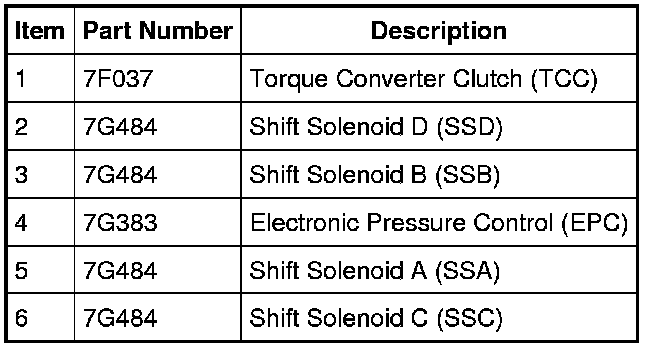

Main Control Valve Body
