Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2011
>>
Ranger 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
>>

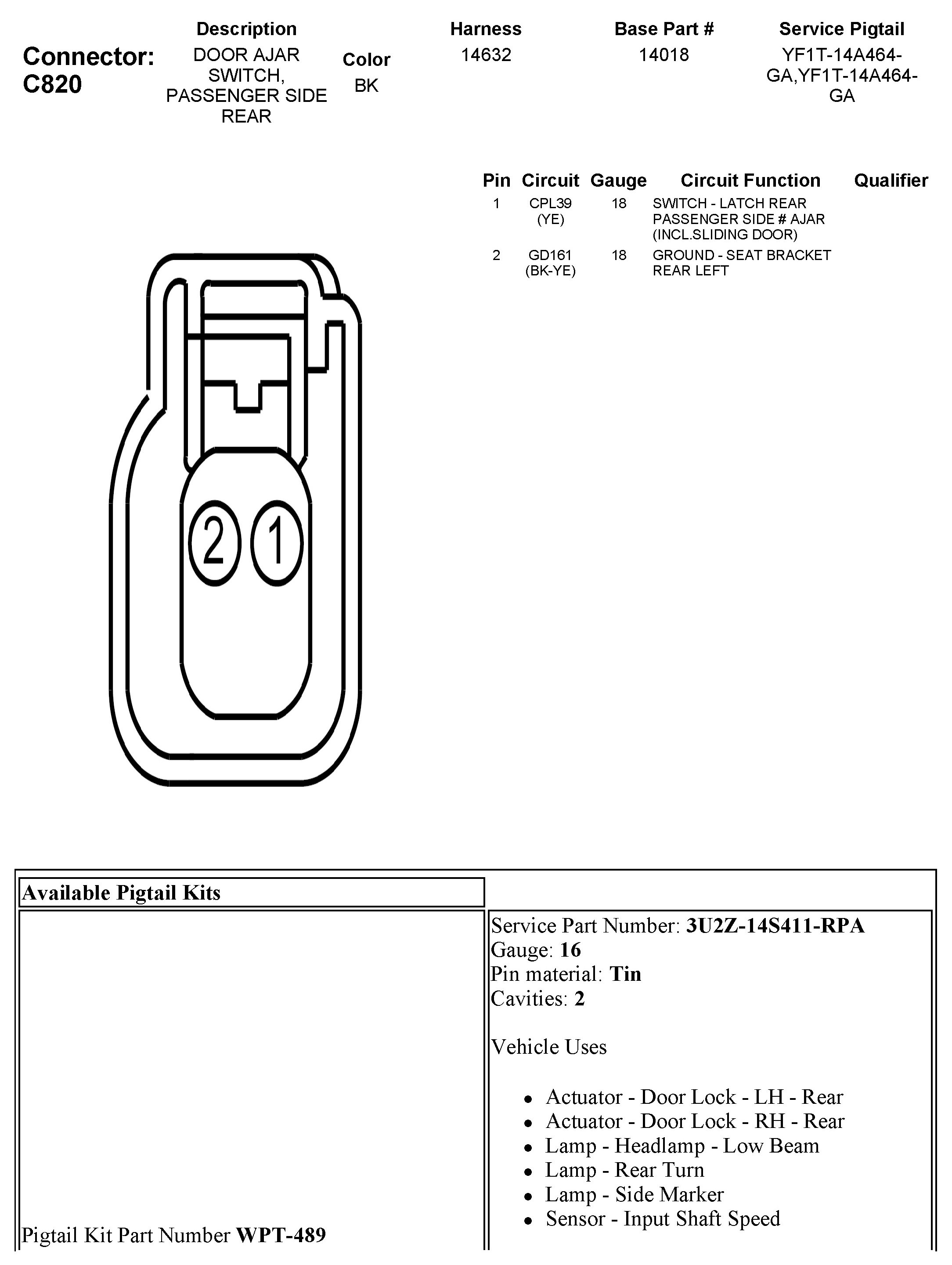

C820 Door Ajar Switch, Passenger Side Rear
C820 Door Ajar Switch, Passenger Side Rear
