Register - Passenger Side

Register - Passenger Side









Removal and Installation

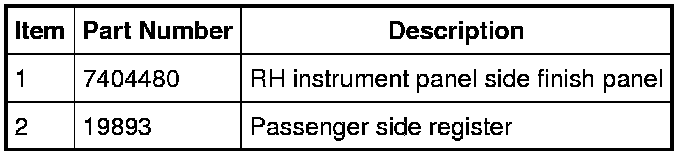

1. Remove the RH instrument panel side finish panel.





2. Release the 2 glove compartment bumpers and lower the glove compartment.





3. Working through the RH instrument panel end panel opening, remove the RH demister duct screw.





4. Release the 4 passenger side register clips and remove the register.

5. To install, reverse the removal procedure.
