Home
>>
Ford Truck
>>
2011
>>
Flex FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>

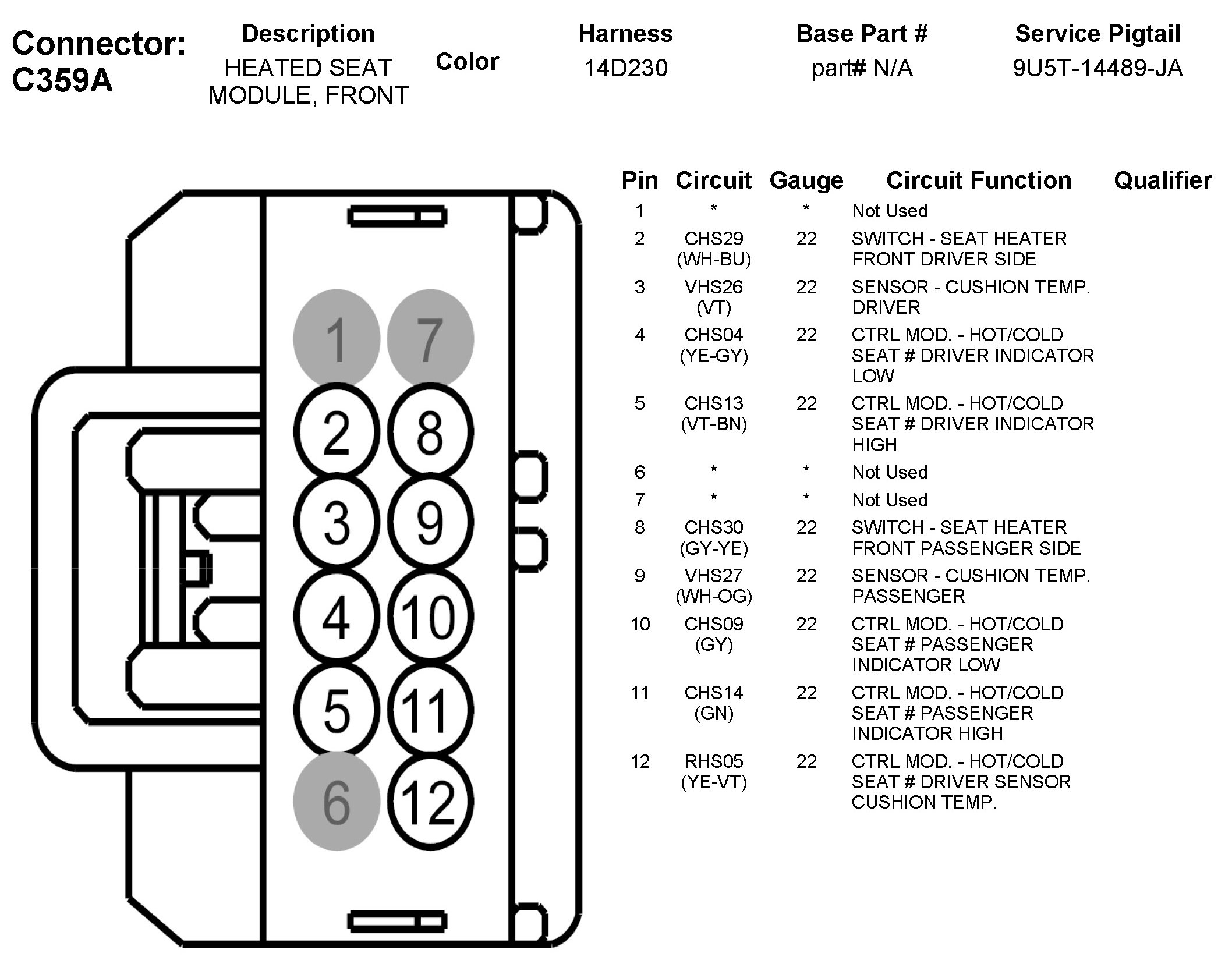

C359A Heated Seat Module, Front
C359A Heated Seat Module, Front
