Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2011
>>
Flex FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

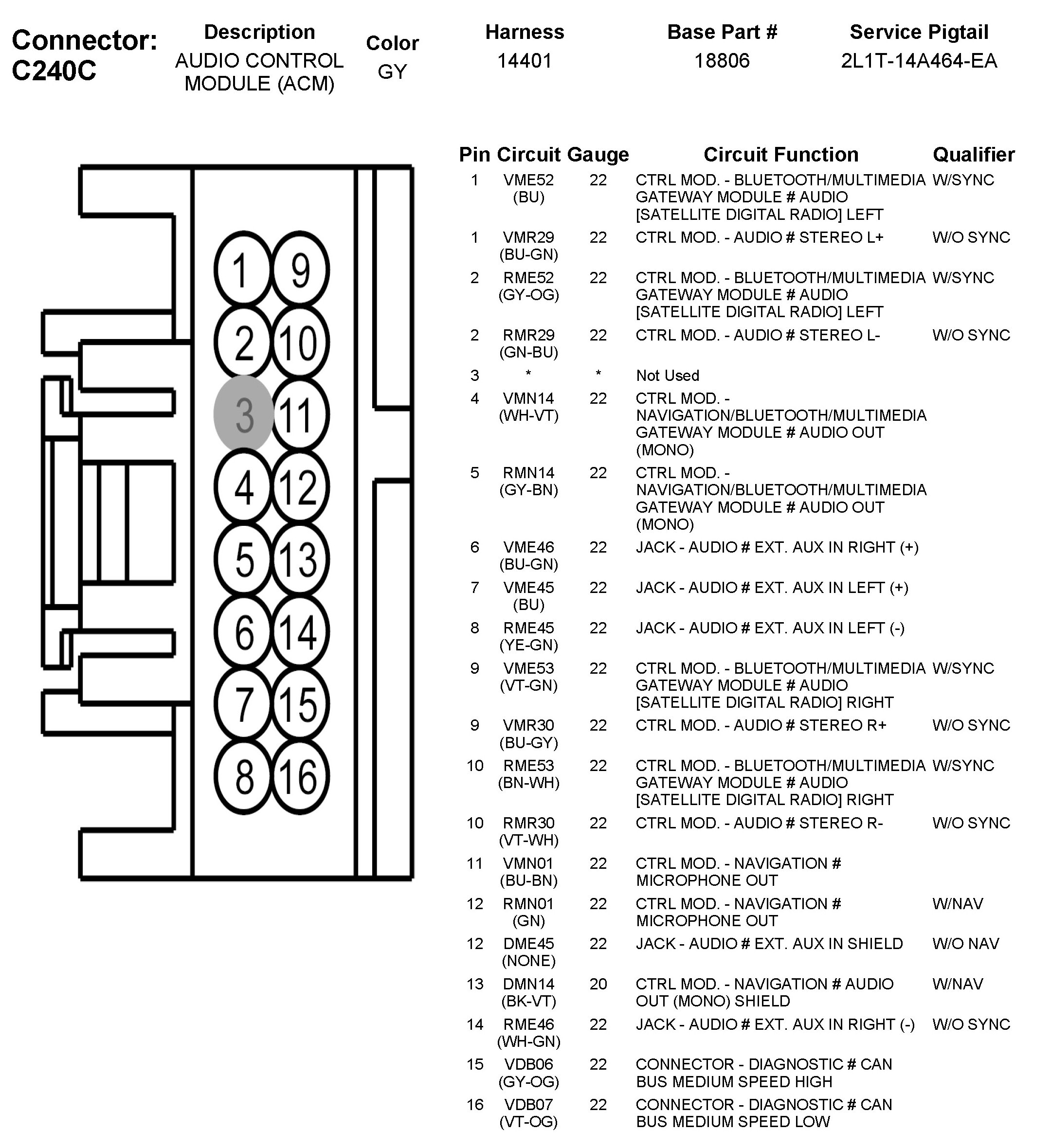

C240C Audio Control Module (ACM)
C240C Audio Control Module (ACM)
