Home
>>
Ford Truck
>>
2011
>>
Flex AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>

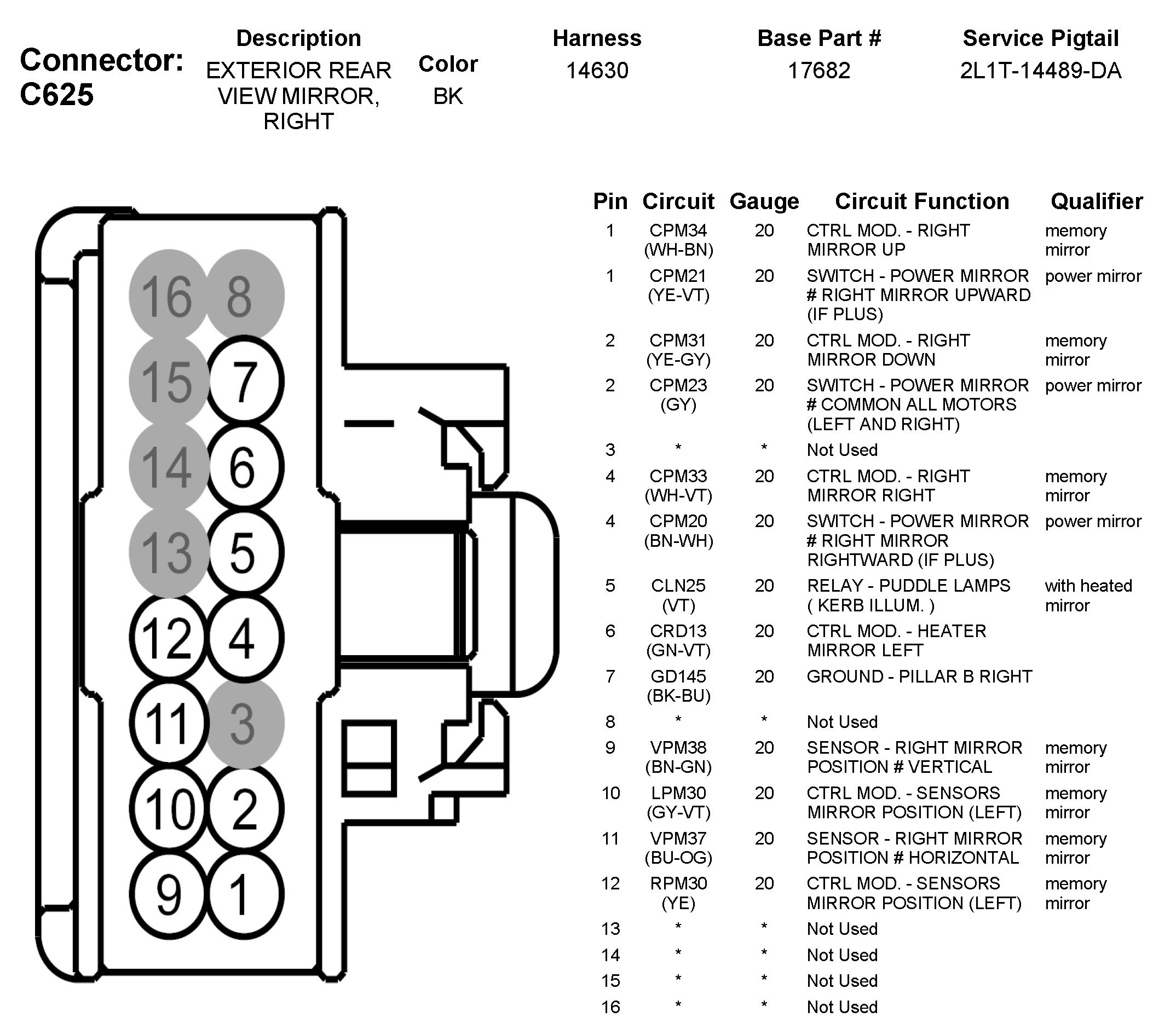

C625 Exterior Rear View Mirror, Right
C625 Exterior Rear View Mirror, Right
