Entertainment System Control Module
>>

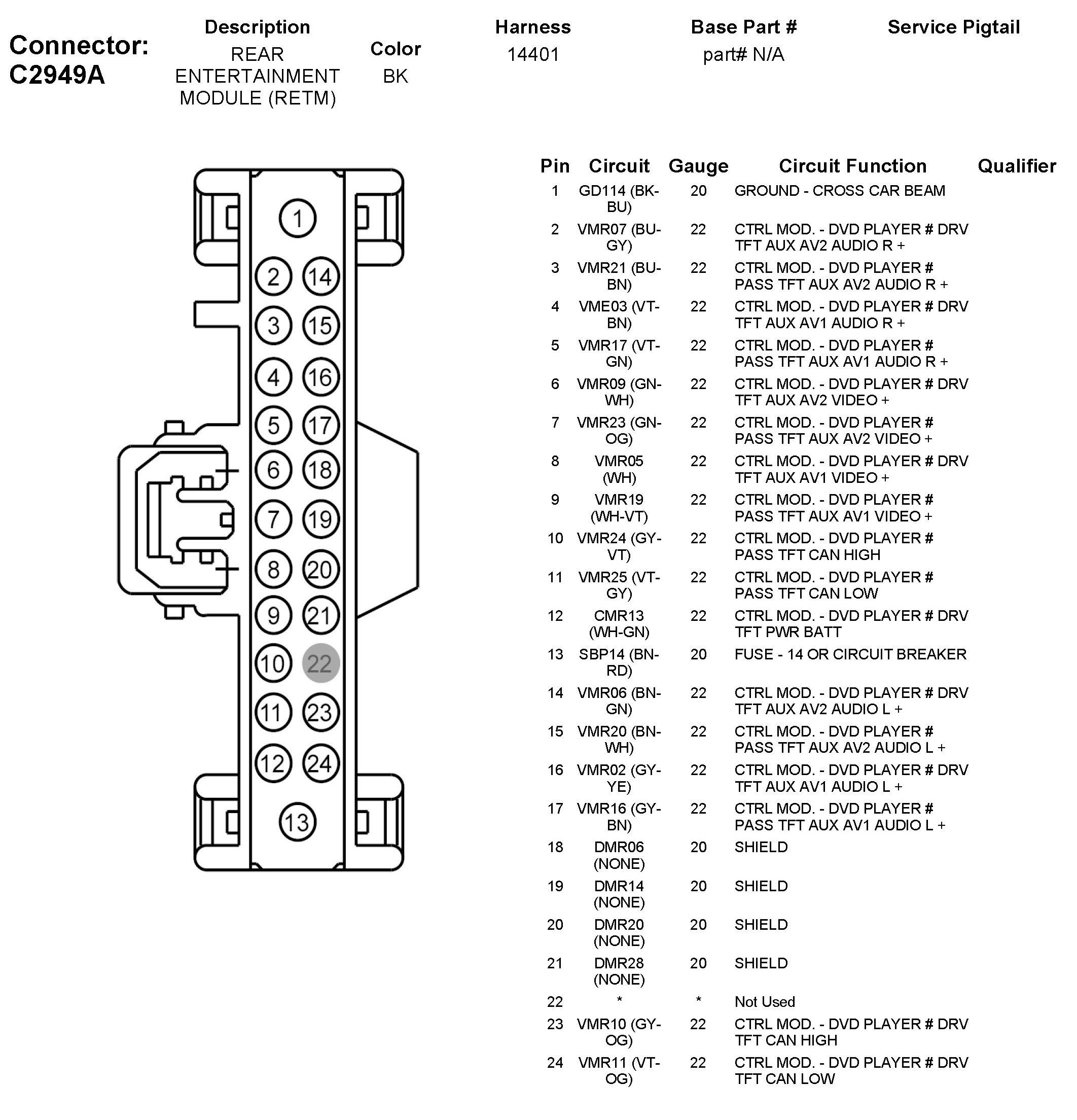

C2949A Rear Entertainment Module (RETM)
C2949A Rear Entertainment Module (RETM)
