Blower Motor: Service and Repair

Blower Motor









Removal and Installation

1. Remove the Body Control Module (BCM). For additional information, refer to Multifunction Electronic Modules Service and Repair.

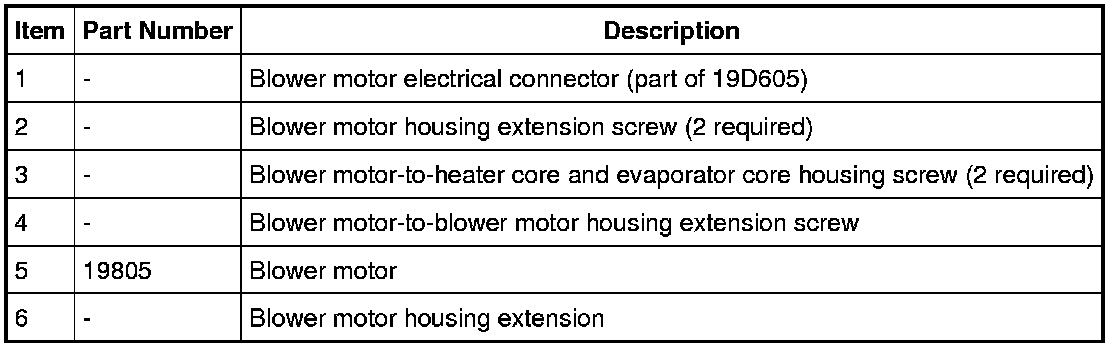

2. Disconnect the blower motor electrical connector.

3. Remove the blower motor-to-blower motor housing extension screw.

4. Remove the 2 blower motor-to-heater core and evaporator core housing screws.

5. Remove the 2 blower motor housing extension screws.

6. Remove the blower motor and blower motor housing extension.

7. To install, reverse the removal procedure.
