Wheel Speed Sensor - Rear, Four-Channel

Wheel Speed Sensor - Rear, Four-Channel

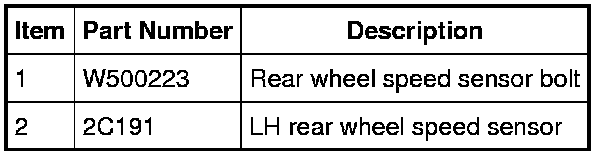

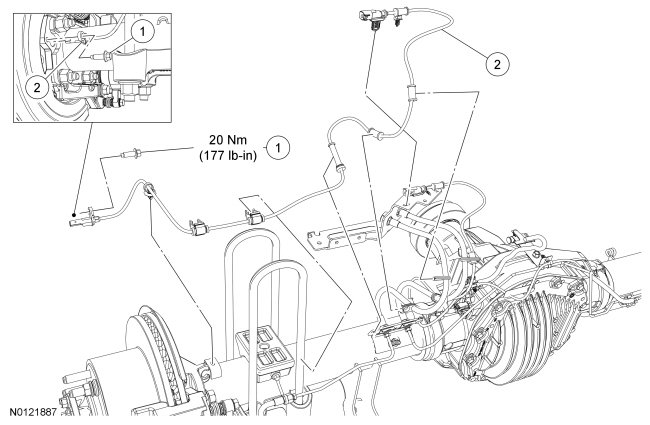

LH Wheel Speed Sensor

NOTE: F-350 shown, F-250 similar.

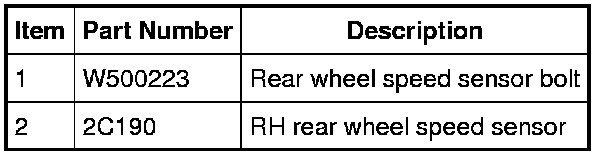

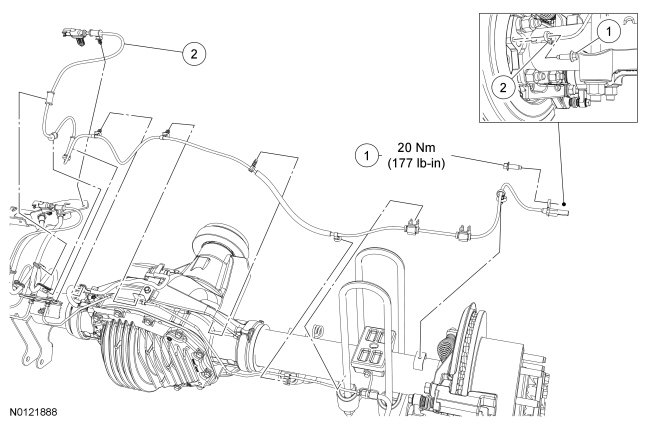

RH Wheel Speed Sensor

NOTE: F-350 shown, F-250 similar.









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Disconnect the wheel speed sensor electrical connector.

3. Detach the wheel speed sensor harness from the rear axle.

4. Remove the wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten to 20 Nm (177 lb-in).

5. To install, reverse the removal procedure.
