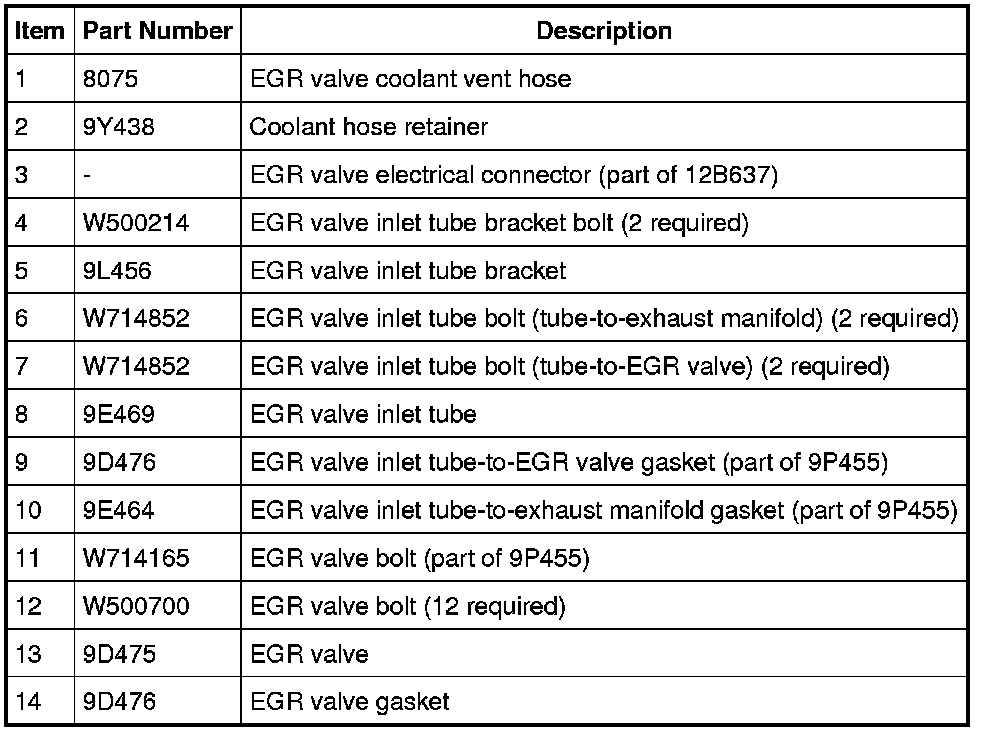

Exhaust Gas Recirculation (EGR) Valve - Exploded View

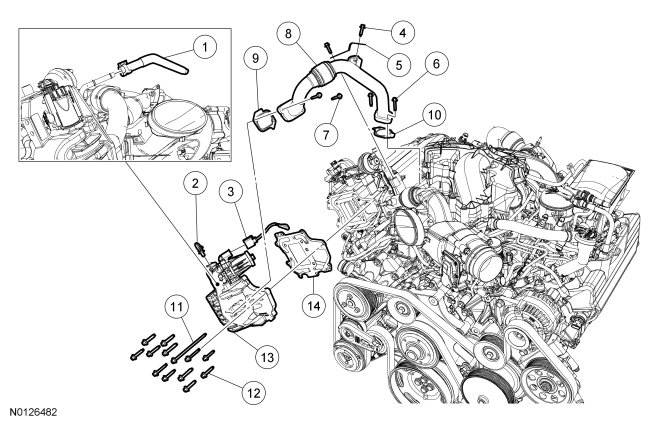

Exhaust Gas Recirculation (EGR) Valve - Exploded View, 6.7L Diesel









1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
