Differential Lock: Service and Repair

Electronic Locking Differential (ELD) Field Coil









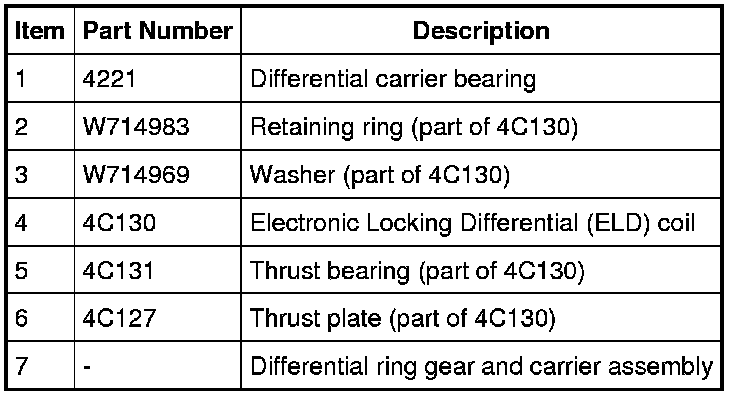

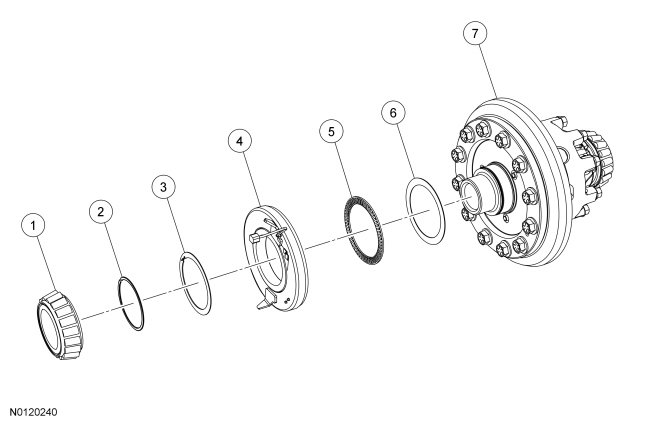

Removal and Installation

1. Remove the differential carrier. For additional information, refer to Differential Case Differential Case.

2. Remove the LH differential carrier bearing. For additional information, refer to Differential Bearings Differential Bearings.

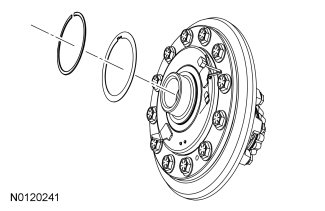

3. Remove the ELD retaining ring and washer.

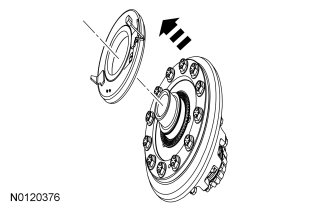

4. Remove the ELD coil.

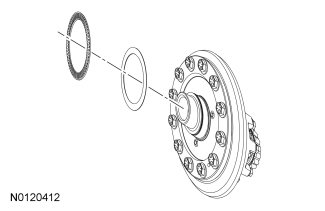

5. Remove the thrust bearing and thrust plate.





6. To install, reverse the removal procedure.
