Air Duct: Service and Repair

Footwell Duct - Rear









Removal and Installation

1. Remove the front seats. For additional information, refer to Seating Front Seat.

2. Remove the floor console. For additional information, refer to Instrument Panel and Console Service and Repair.

3. Remove the RH and LH lower cowl trim panels and front door sill plates.

4. NOTE: Position the carpet to allow access to the 2 rear footwell duct pin-type retainers.

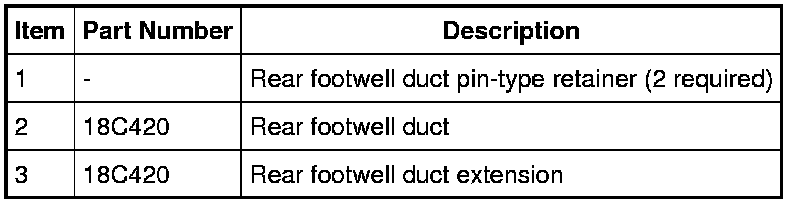

Remove the 2 rear footwell duct pin-type retainers.

5. Remove the rear footwell duct.

6. Remove the rear footwell duct extension.

7. To install, reverse the removal procedure.
