Home
>>
Ford Truck
>>
2011
>>
F 450 2WD Super Duty V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Emission Control Systems
>>
EGR Temperature Sensor
>>

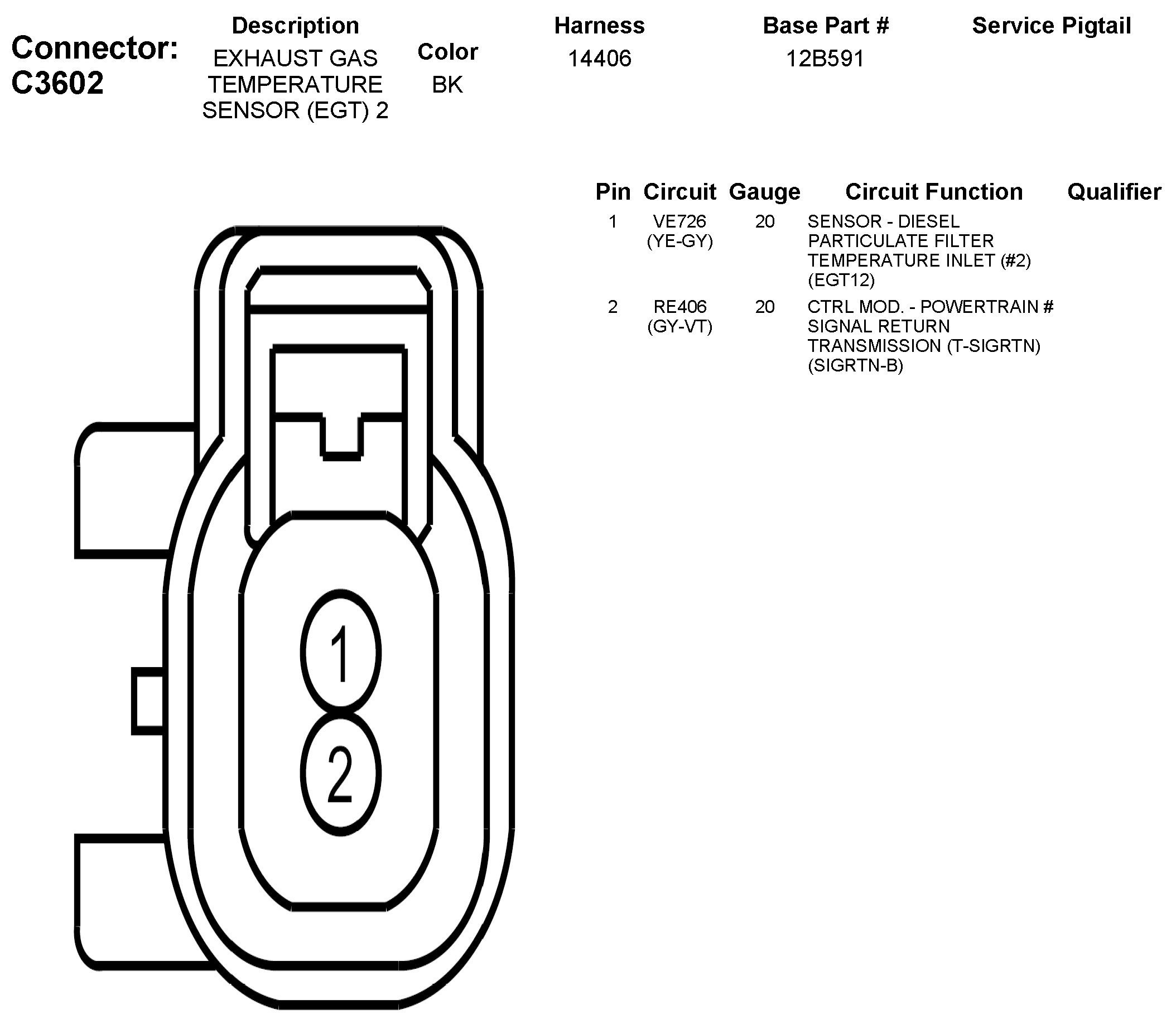

C3602 Exhaust Gas Temperature Sensor (EGT) 2
C3602 Exhaust Gas Temperature Sensor (EGT) 2
