Ford Truck
>>
2011
>>
F 350 2WD Super Duty V8-6.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Cabin Heater Control Module
>>

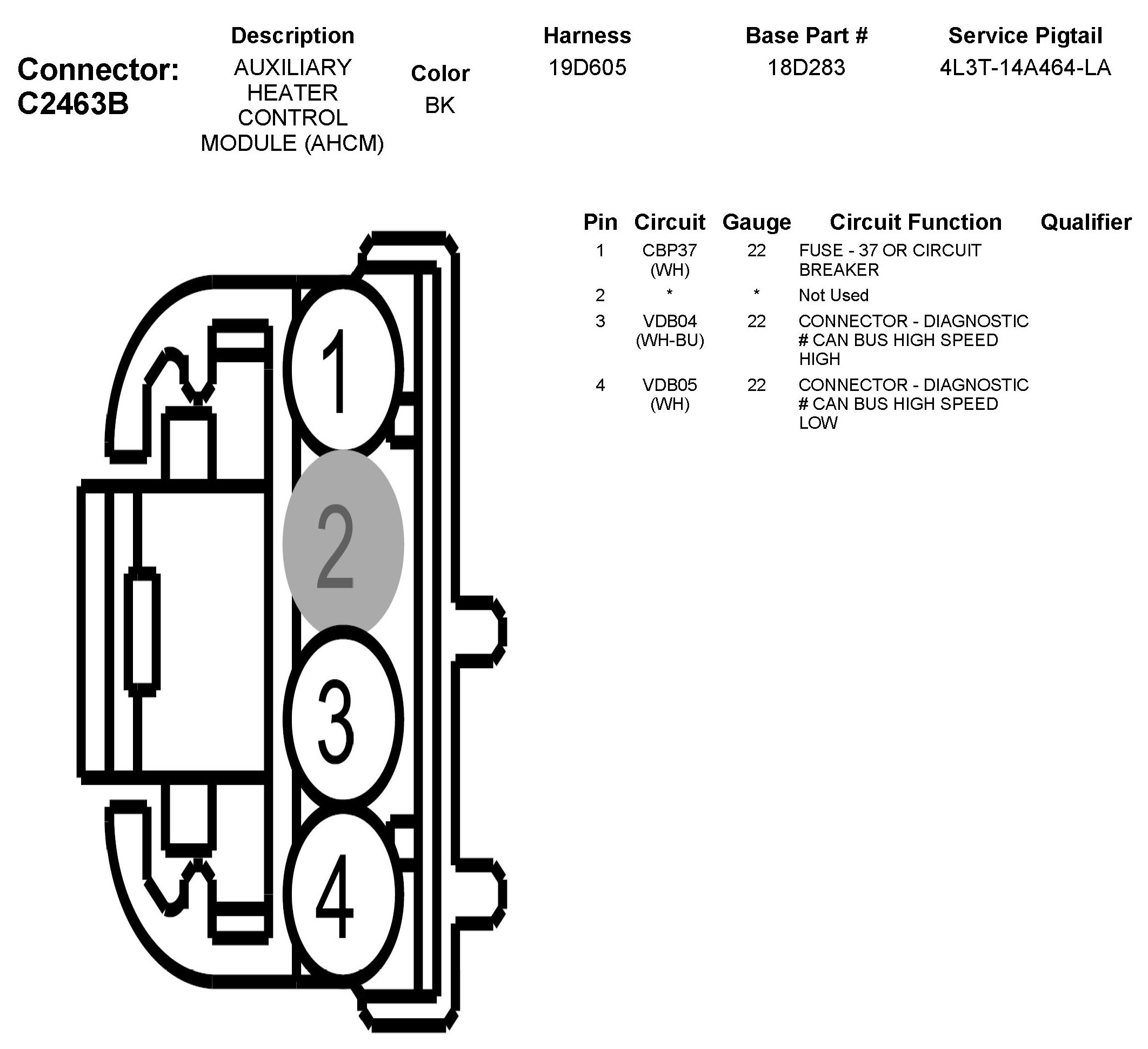

C2463B Auxiliary Heater Control Module (AHCM)
C2463B Auxiliary Heater Control Module (AHCM)
