Ford Truck
>>
2011
>>
F 250 2WD Super Duty V8-6.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Emission Control Systems
>>
Diesel Emissions Fluid Heating Element
>>

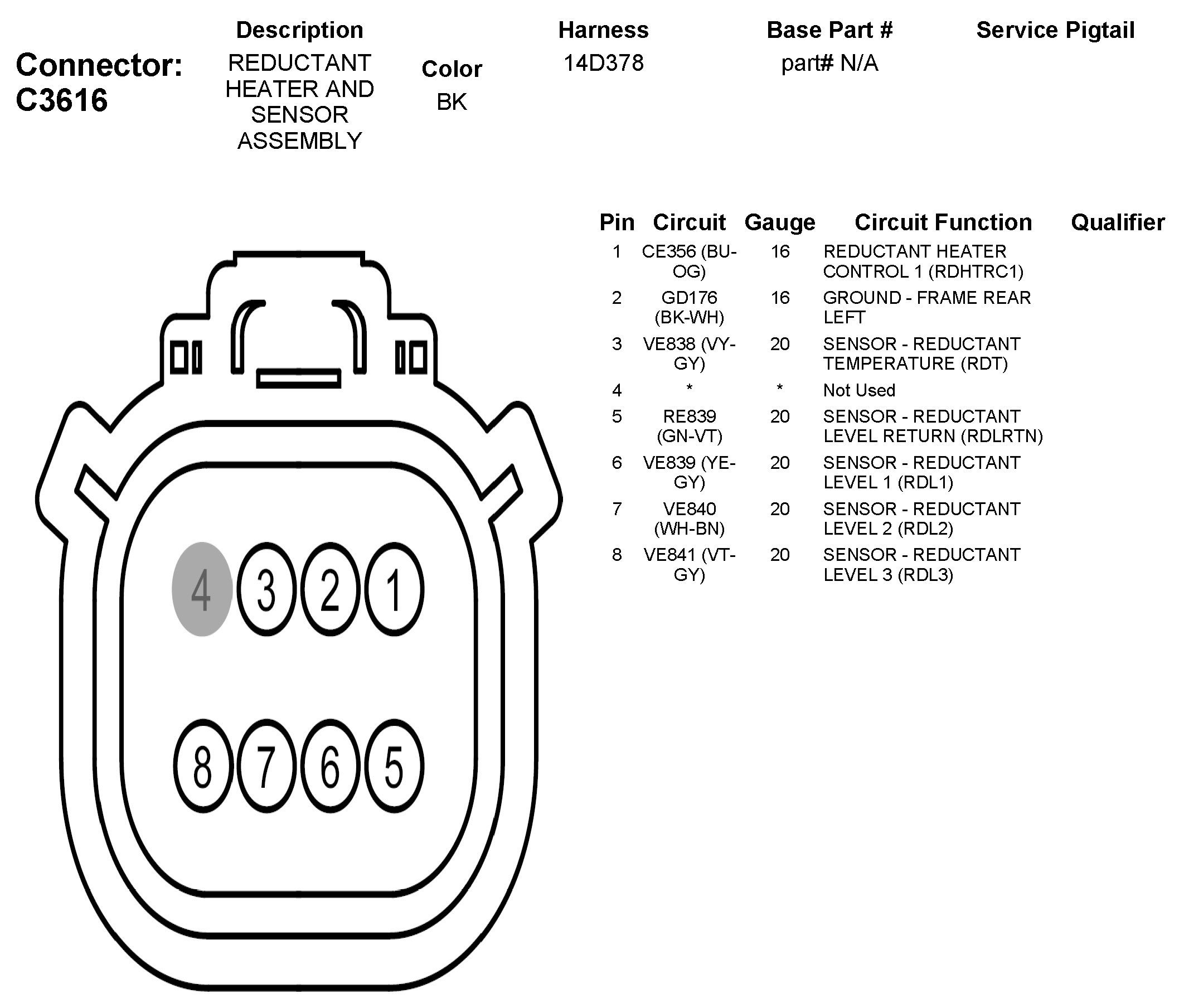

C3616 Reductant Heater and Sensor Assembly
C3616 Reductant Heater and Sensor Assembly
