Steering Wheel

Steering Wheel

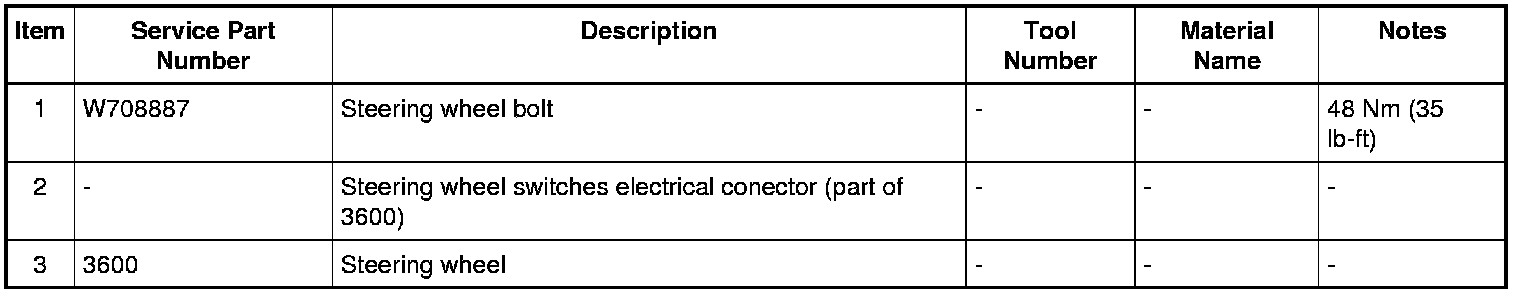

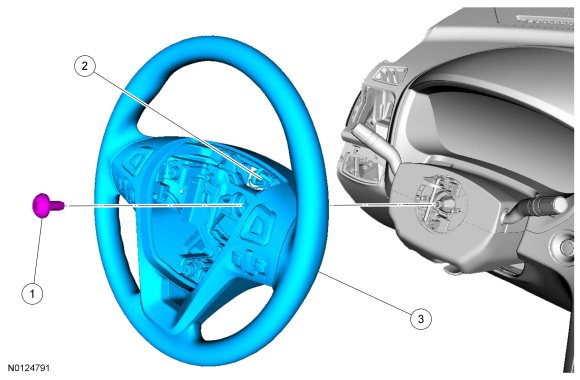

Exploded View










Removal

1. Remove the driver air bag module. REFER to Driver Air Bag Module Driver Air Bag Module.

2. NOTE: Mark the steering wheel and column shaft for reference during installation.

Remove the steering wheel bolt.

3. Disconnect the steering wheel switches electrical connector.

4. NOTICE: Do not remove the steering wheel by hitting the shaft with a hammer. Damage to the column may occur.

Remove the steering wheel.

5. Tape the clockspring center rotor to the outer housing to keep it from rotating.





Installation

1. Remove the tape from the clockspring.





2. Install the steering wheel and the steering wheel bolt.

- Tighten to 48 Nm (35 lb-ft).

3. Connect the steering wheel switches electrical connector.

4. Install the driver air bag module. REFER to Driver Air Bag Module Driver Air Bag Module.
