Ford Truck
>>
2011
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>

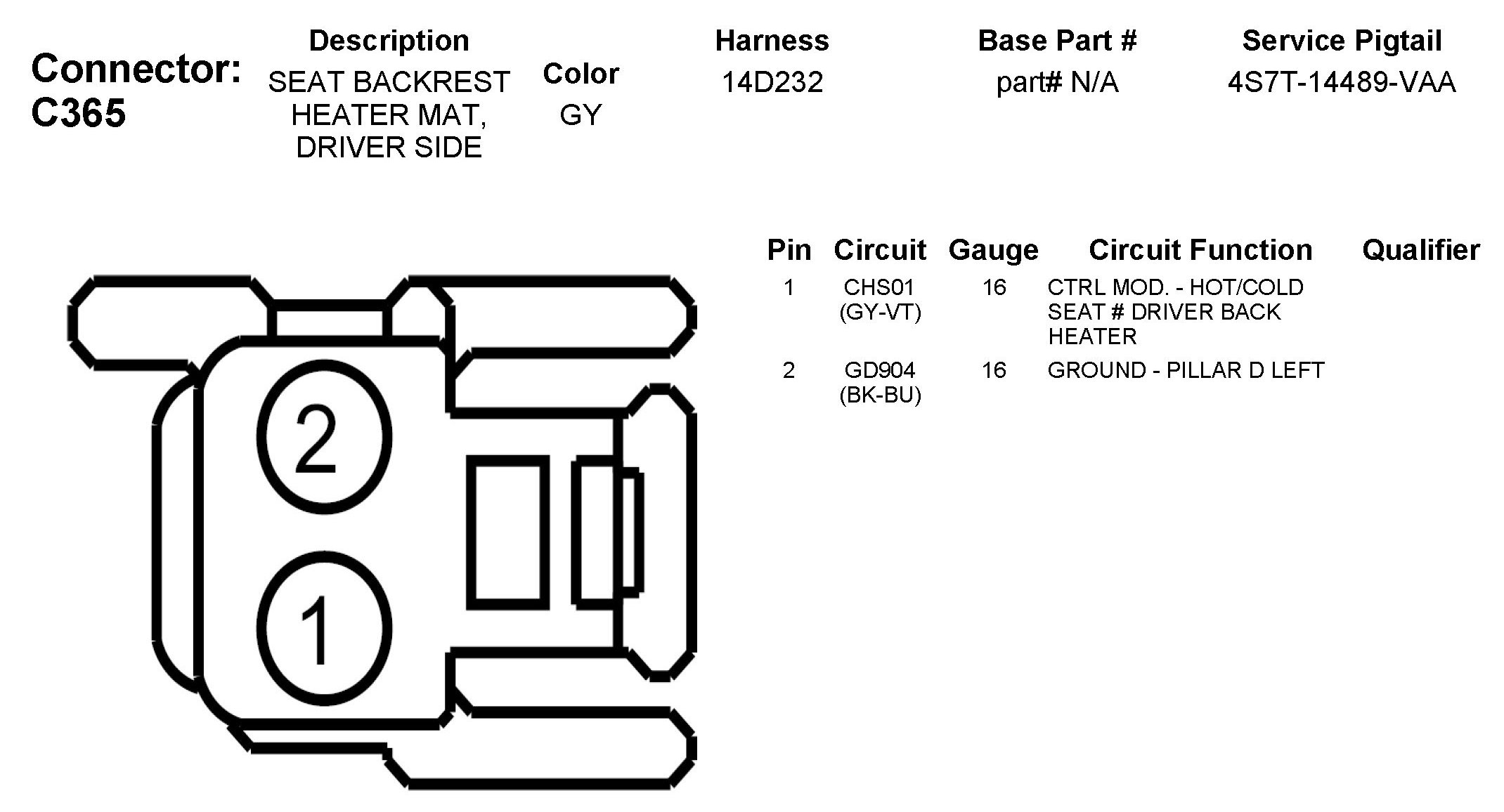

C365 Seat Backrest Heater MAT, Driver Side
C365 Seat Backrest Heater MAT, Driver Side
