Seat Temperature Control Module
>>

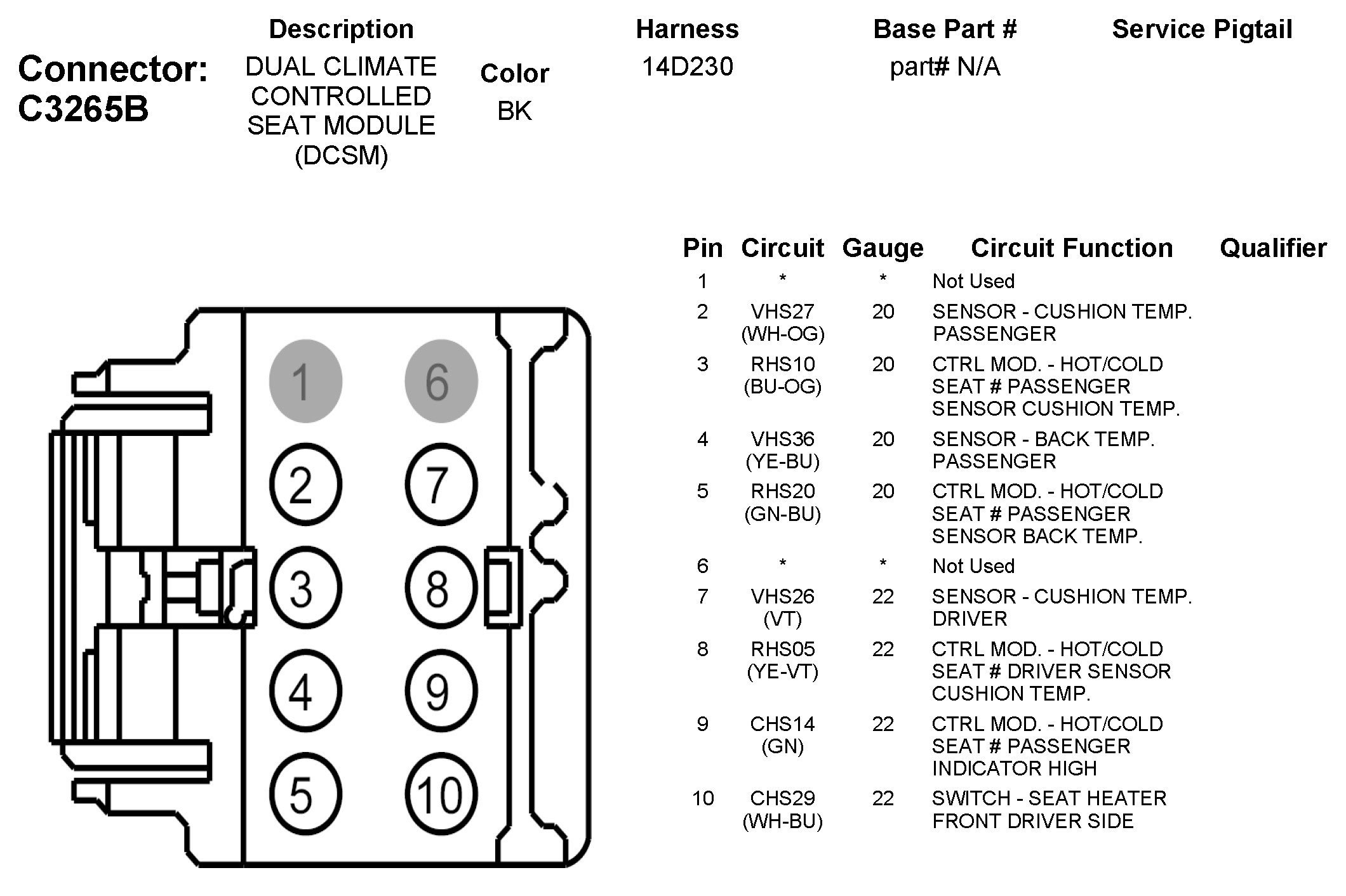

C3265B Dual Climate Controlled Seat Module (DCSM)
C3265B Dual Climate Controlled Seat Module (DCSM)
