Ford Truck
>>
2011
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>

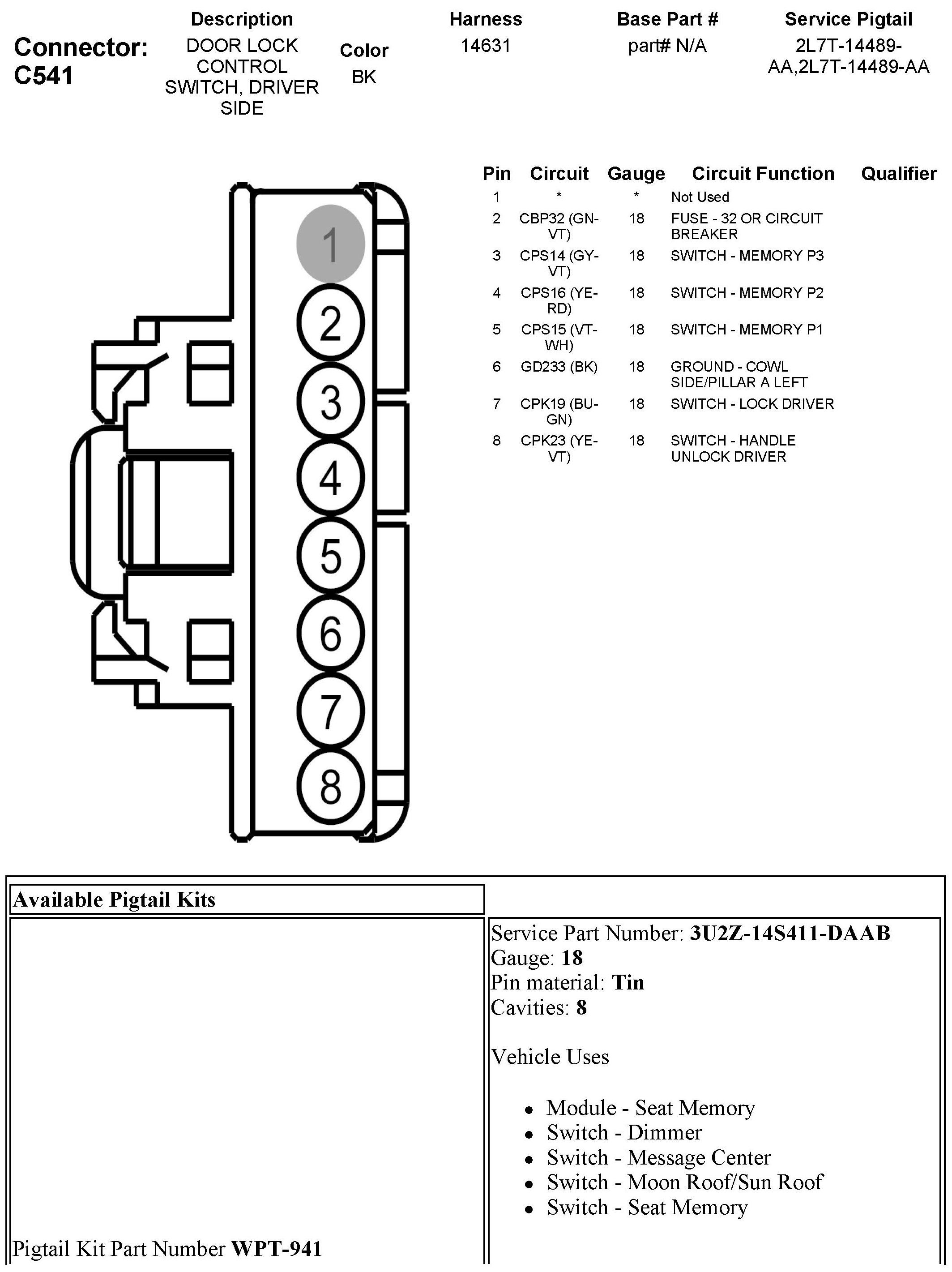

C541 Door Lock Control Switch, Driver Side
C541 Door Lock Control Switch, Driver Side
