Console - Rear, Floor

Console - Rear, Floor

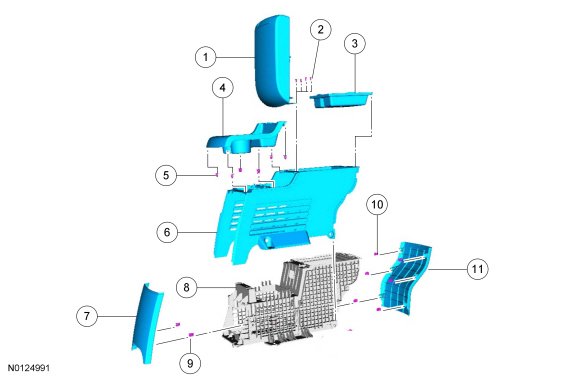

Exploded View

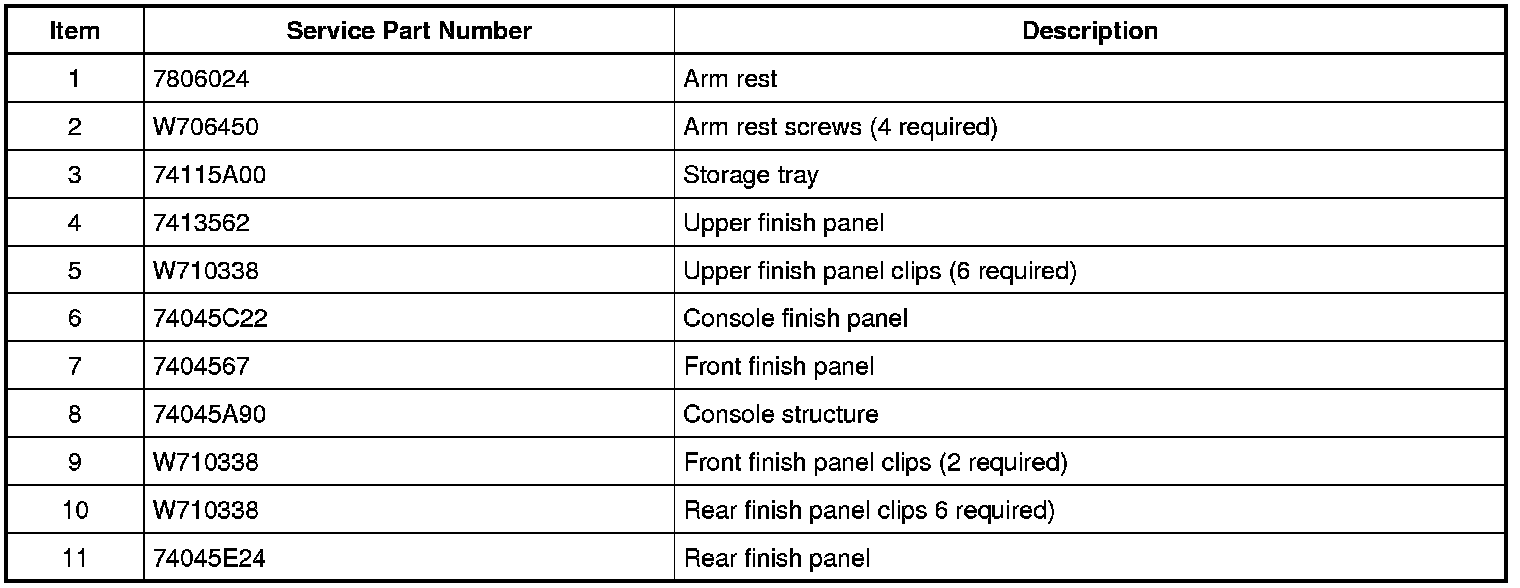

Rear Console Finish Panels

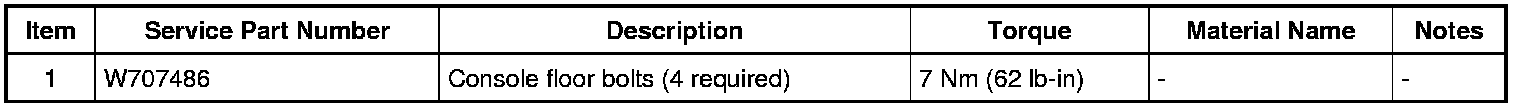

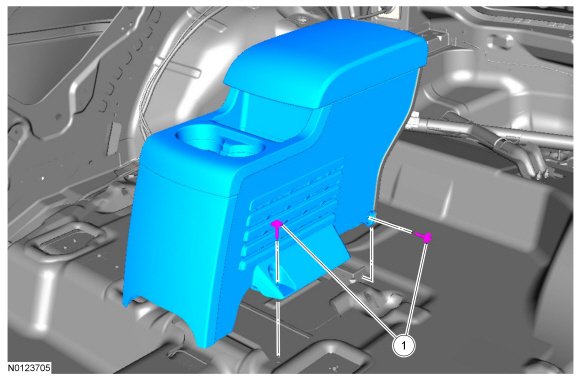

Rear Console Fasteners










Removal

1. Fold and tilt the second row passenger seats forward.

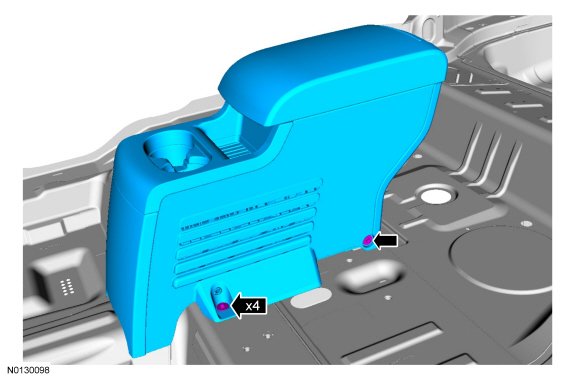

2. Remove the 4 rear floor console bolts.
- To install, tighten to 7 Nm (62 lb-in).





3. Remove the rear floor console.

Installation

1. To install, reverse the removal procedure.
