Drive Pinion Seal

Drive Pinion Seal

Special Tool(s)

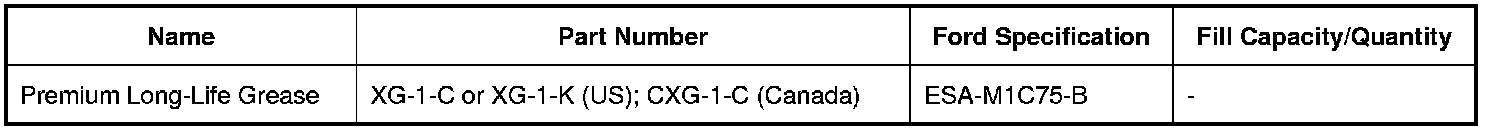

Material(s)

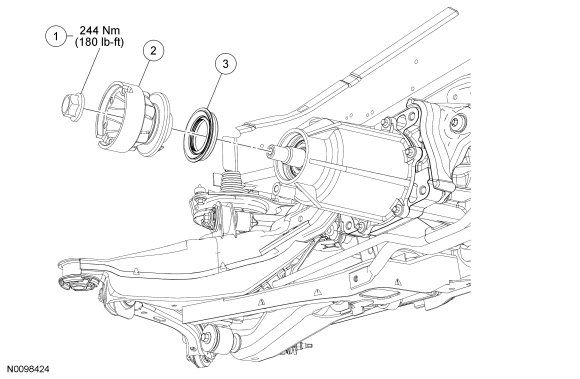

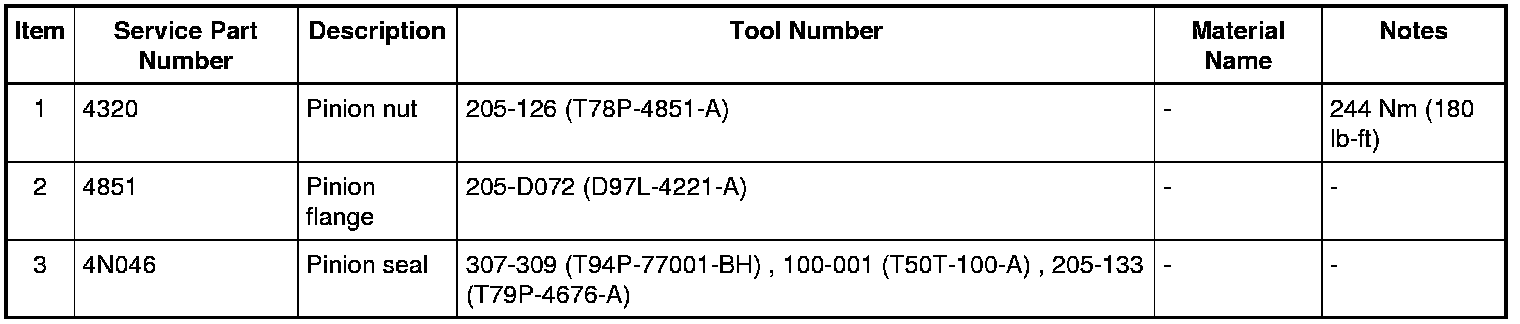

Exploded View










Removal

1. Remove the driveshaft. REFER to Driveshaft. Removal and Replacement

2. Using the Drive Pinion Flange Holding Fixture 205-126 (T78P-4851-A) , hold the pinion flange and remove the nut. Discard the nut.





3. Index mark the location of the pinion to the pinion flange.





4. Using the 2 Jaw Puller 205-D072 (D97L-4221-A) , remove the pinion flange.





5. Using the Torque Converter Fluid Seal Remover 307-309 (T94P-77001-BH) and Slide Hammer 100-001 (T50T-100-A) , remove and discard the pinion seal.





Installation

1. NOTE: Make sure the mating surface is clean before installing the new pinion seal.

Using the Pinion Seal Replacer 205-133 (T79P-4676-A) , install the new pinion seal.





2. NOTE: Lubricate the pinion flange with grease.

Align the index marks and position the pinion flange to the pinion.





3. Using the Drive Pinion Flange Holding Fixture 205-126 (T78P-4851-A) , install the new pinion nut.

- Tighten to 244 Nm (180 lb-ft).





4. Install the driveshaft. REFER to Driveshaft. Removal and Replacement
