Part 4

Transmission - Overhaul

Special Tool(s)










Material(s)






Exploded View











































Overhaul

109. Clean and inspect the overdrive/direct clutch hub and shaft assembly for damage. Install new, if necessary.

110. Install the direct clutch wave spring.





111. Lubricate the direct clutch pack in clean transmission fluid.





112. Install the direct clutch assembly and pressure plate.





113. Install the direct clutch snap ring.

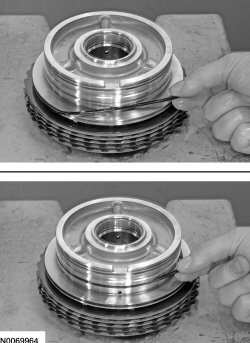

114. Install new direct clutch piston seals and lubricate the seals with petroleum jelly.





115. Install the direct clutch piston return spring.





116. Lubricate a new direct clutch piston with petroleum jelly and install the piston.





117. Install a new rear direct clutch cylinder seal and lubricate it with petroleum jelly.





118. Install the direct clutch cylinder.





119. NOTICE: Only compress the direct clutch piston return spring far enough to install the direct clutch cylinder snap ring. If the direct clutch cylinder is pressed too far, the direct clutch cylinder alignment tab may be broken off. The tab is used to align the TSS (Turbine Shaft Speed) sensor tone wheel (part of the direct clutch cylinder). If the tab is broken, erratic shifts and transmission damage can occur.

NOTE: Align the tab on the direct clutch cylinder with the slot on the overdrive/direct clutch hub and shaft assembly.

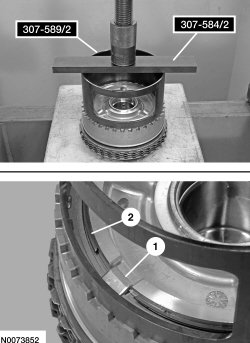

Install 307-589/2 and 307-584/2 on the direct clutch cylinder. Using a press, compress the direct clutch piston return spring and install the snap ring.

1. Do not contact the overdrive/direct clutch hub and shaft assembly with the direct clutch cylinder.

2. Install the snap ring.





120. Remove 307-589/2 and 307-584/2.

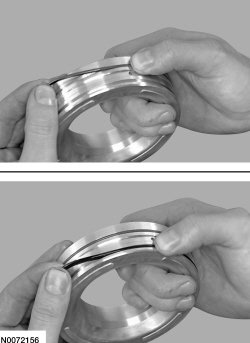

121. Install new seals on the overdrive clutch piston and lubricate the seals with petroleum jelly.





122. Install a new overdrive clutch piston inner seal and lubricate the seal with petroleum jelly.





123. Install the overdrive clutch piston in the overdrive/direct clutch hub and shaft assembly and push the overdrive clutch piston in the cylinder by hand using 307-589/1.





124. NOTE: Install the overdrive clutch piston return spring so that the holes are facing upward.

Install the overdrive clutch piston return spring.





125. Lubricate the seals on a new balance piston with petroleum jelly.

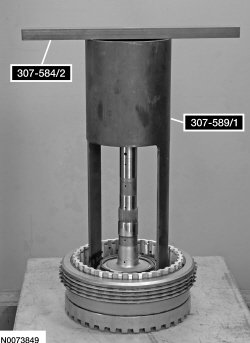

126. Install the new balance piston and install 307-589/1 and 307-584/2.





127. Using a press, compress the overdrive clutch piston return spring and install the snap ring.





128. Remove 307-589/1 and 307-584/2 from the balance piston.





129. Install the No. 2 rear sun gear thrust bearing.





130. Install the overdrive clutch hub.





131. Lubricate the overdrive clutch pack in clean transmission fluid.





132. Install the overdrive clutch pack assembly and the pressure plate.





133. Install the overdrive clutch pack snap ring.

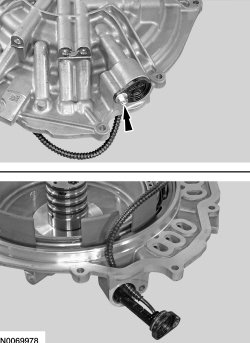

134. Remove the bolt and the TSS (Turbine Shaft Speed) sensor.





135. Using 307-584/1 and 307-584/2, compress the intermediate clutch return spring, using a press and remove the snap ring.





136. Remove 307-584/1 and 307-584/2.





137. Remove the intermediate clutch return spring.





138. Remove and discard the intermediate clutch piston.

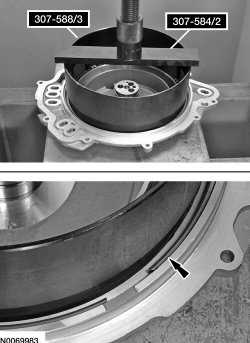

139. Install 307-584/2 and 307-588/3, using a press, compress the low/reverse clutch return spring and remove the snap ring.





140. Remove 307-584/2 and 307-588/3.





141. Remove the low/reverse clutch return spring.





142. Remove and discard the low/reverse clutch piston.
