Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2011
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Camshaft Position Sensor
>>
Diagrams
>>

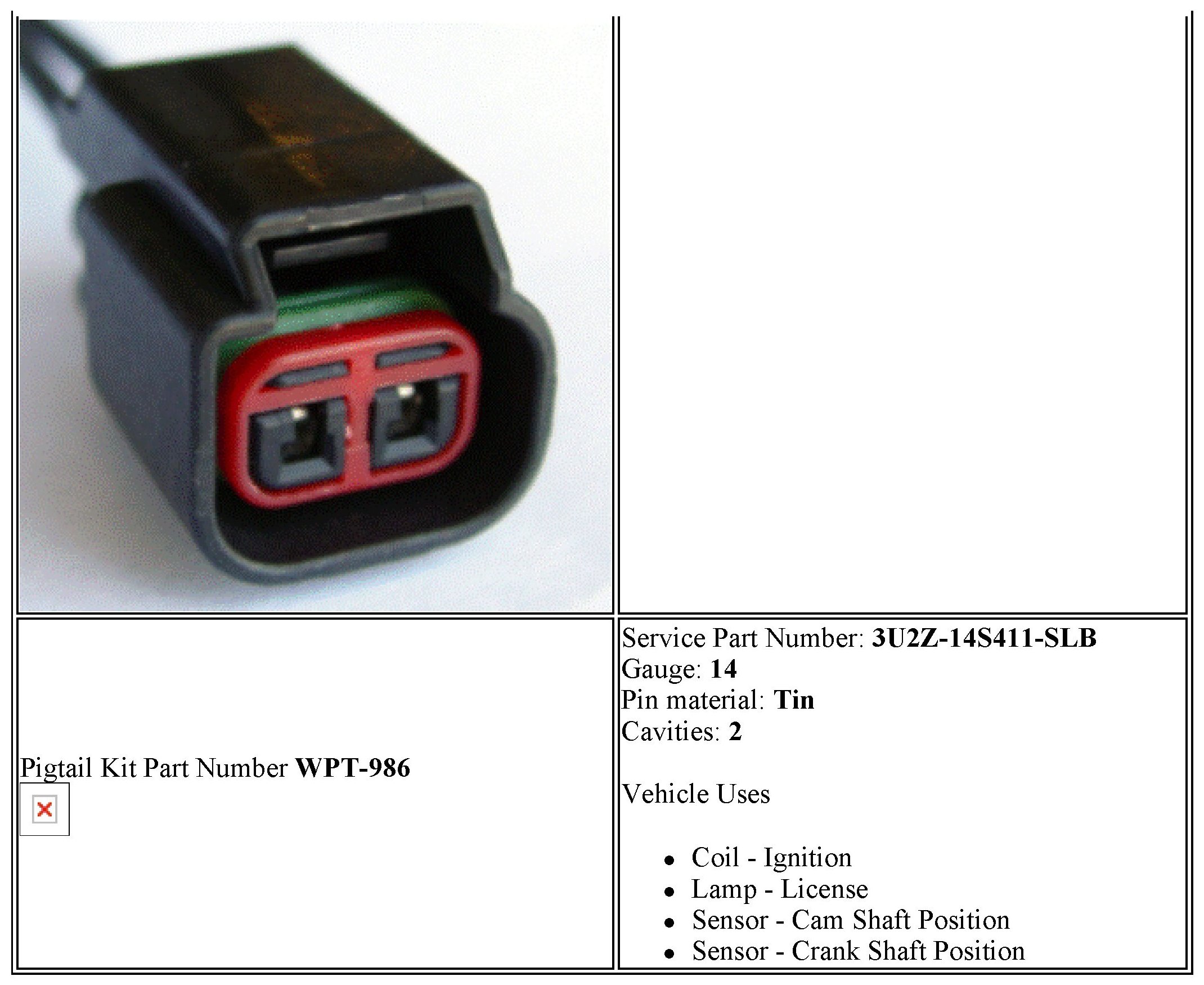

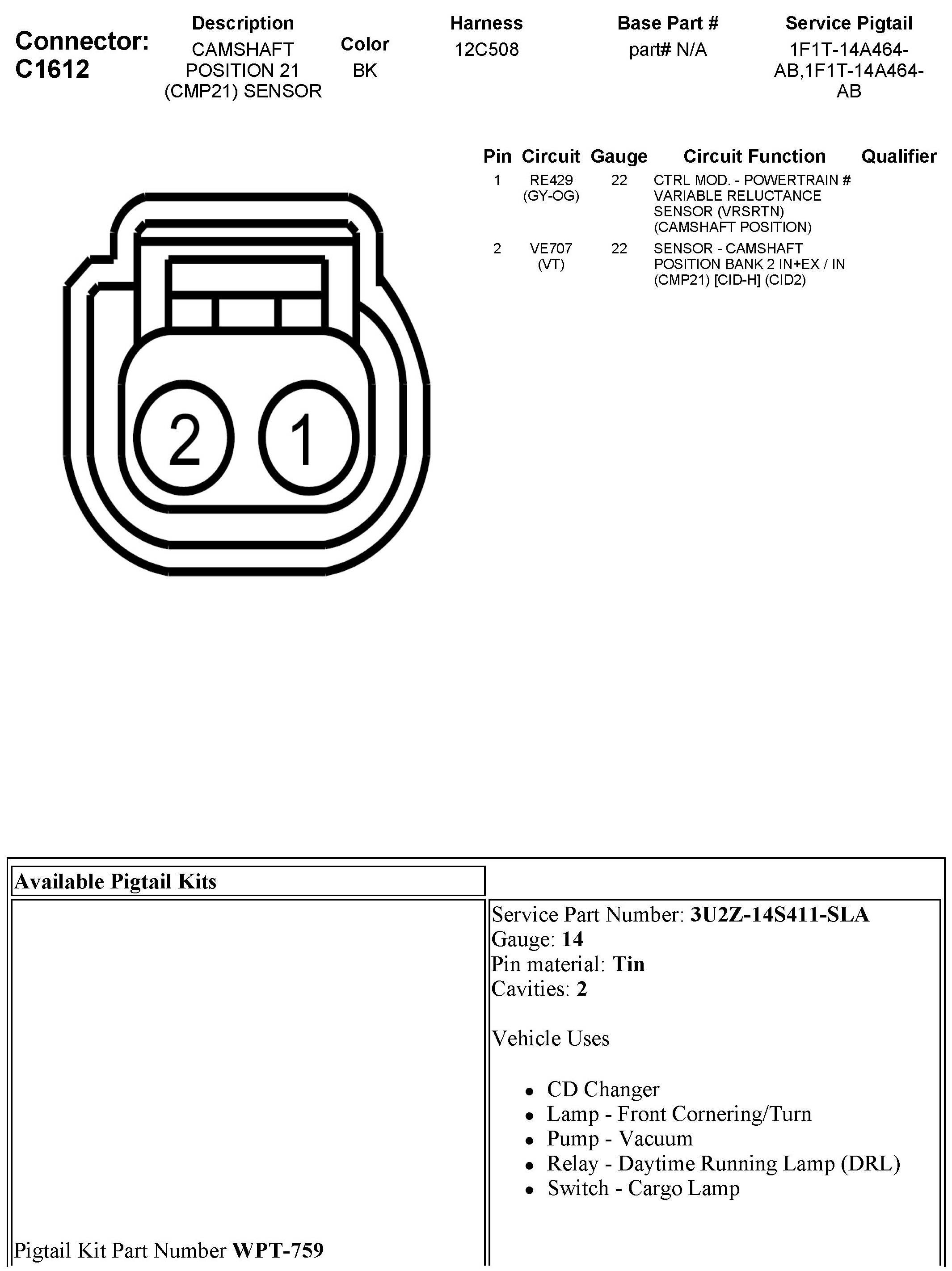

C1612 Camshaft Position 21 (CMP21) Sensor
C1612 Camshaft Position 21 (CMP21) Sensor
