Removal and Replacement

Engine Mount

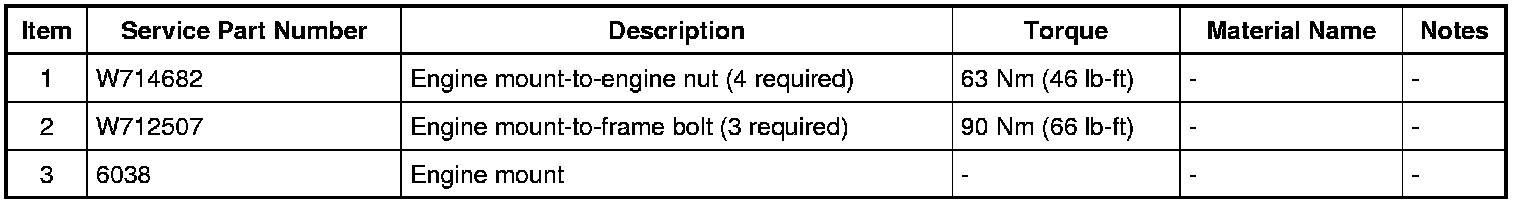

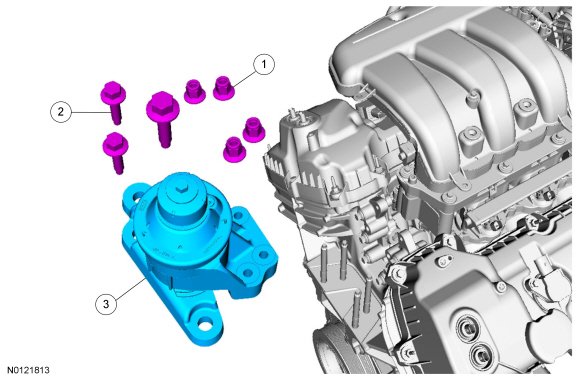

Exploded View










Removal

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting Service and Repair.

2. Remove the engine appearance cover.

3. Remove the 3 twist-type retainers and remove the air duct from the subframe.





4. NOTICE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan

Position a floor jack with a block of wood under the front of the oil pan to support the engine.





5. Remove the 4 nuts from the engine mount-to-engine.

6. Remove the 3 bolts from the engine mount-to-frame.

7. Remove the engine mount.

Installation

1. Position the engine mount onto the engine studs and hand tighten the 4 nuts.

2. Install the 3 engine mount-to-frame bolts.

- Tighten to 90 Nm (66 lb-ft).

3. Tighten the 4 engine mount-to-engine nuts.

- Tighten to 63 Nm (46 lb-ft).

4. Install the 3 twist-type retainers and the air duct to the subframe.





5. Install the engine appearance cover.
