Home
>>
Ford Truck
>>
2011
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>

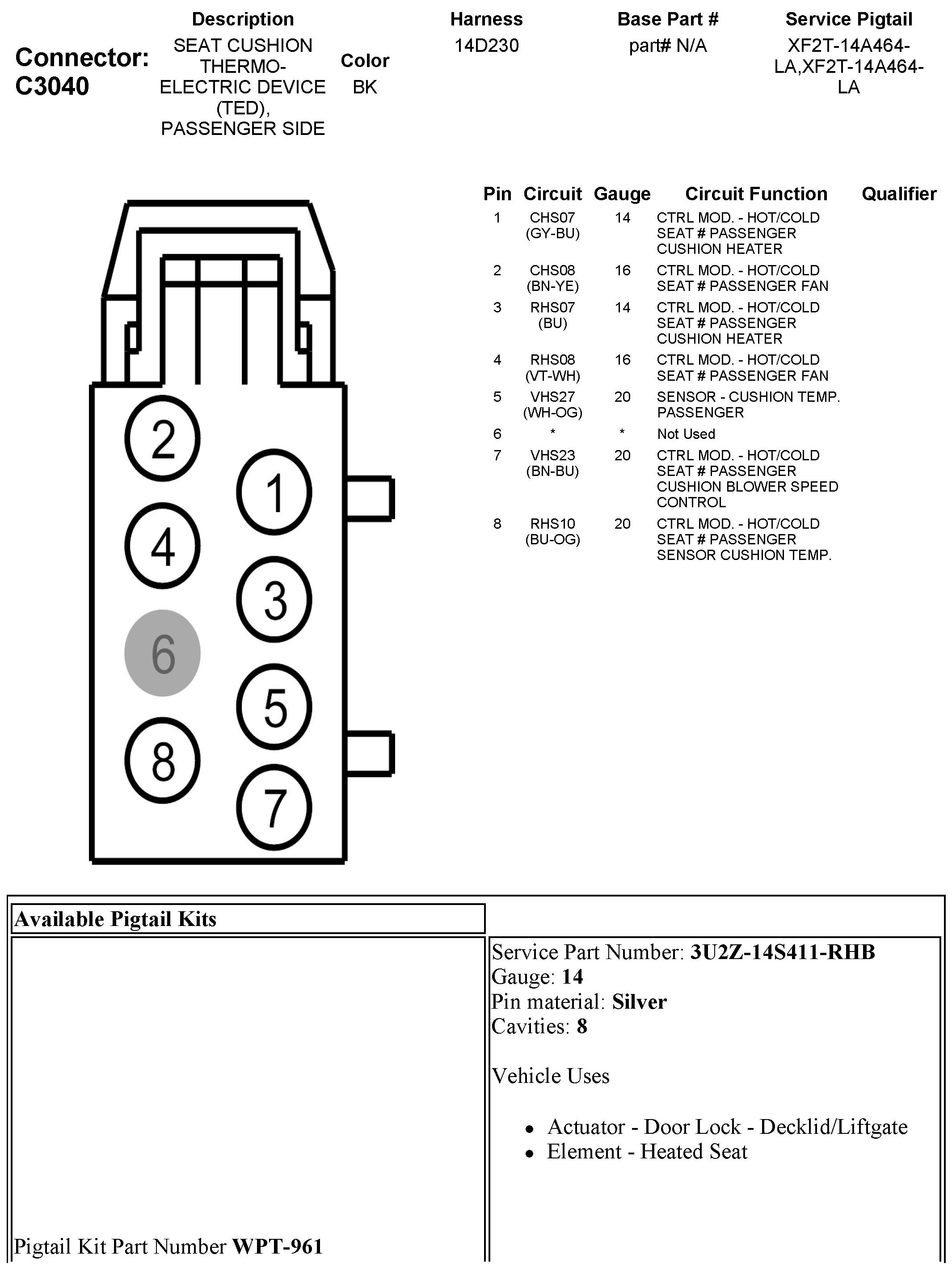

C3040 Seat Cushion Thermo-Electric Device (TED), Passenger Side
C3040 Seat Cushion Thermo-Electric Device (TED), Passenger Side
