Home
>>
Ford Truck
>>
2011
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

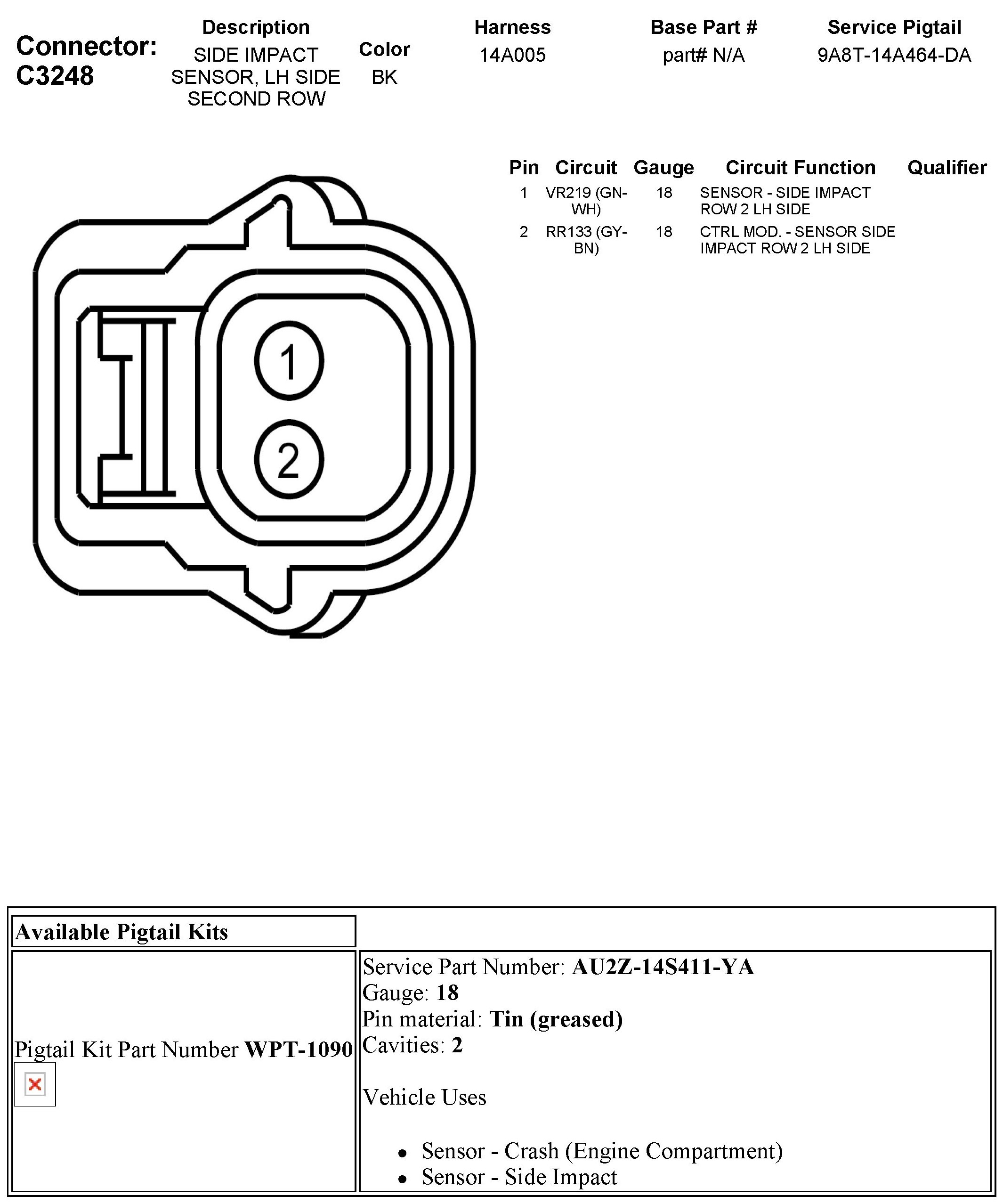

C3248 Side Impact Sensor, LH Side Second Row
C3248 Side Impact Sensor, LH Side Second Row
