Footwell Duct - Rear

Footwell Duct - Rear









Removal and Installation

All vehicles

1. Remove the front seats. For additional information, refer to Seating Seat - Front.

2. Remove the front floor console. For additional information, refer to Instrument Panel and Console Console - Front, Floor Console - Front, Floor.

3. Remove the RH and LH lower cowl trim panels and front door sill plates.

Navigator only

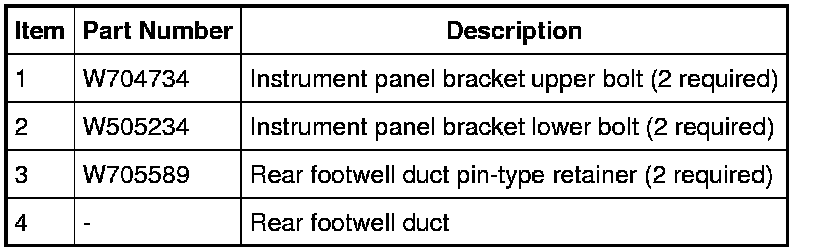

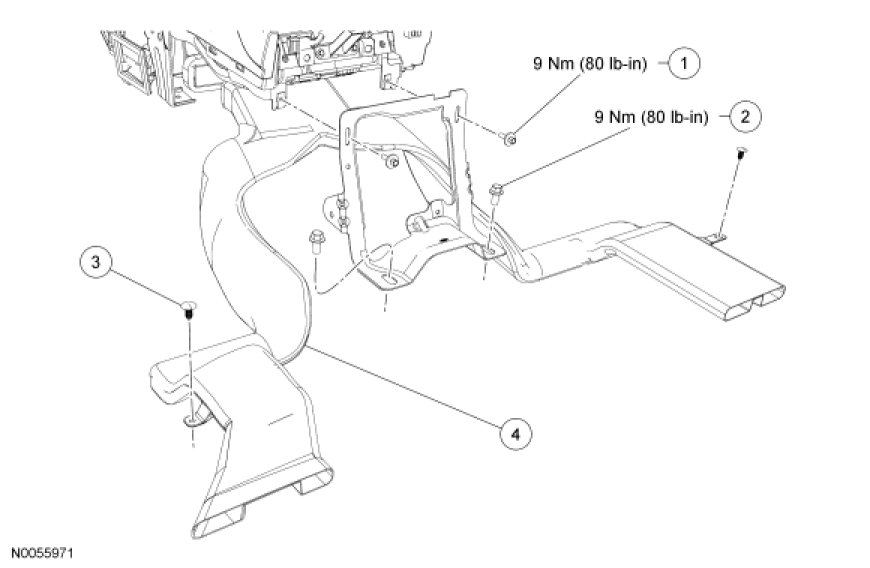

4. Remove the upper and lower instrument panel bracket bolts and position the instrument panel bracket aside.
- To install, tighten to 9 Nm (80 lb-in).

All vehicles

5. Fold back the carpet to completely uncover the rear footwell duct.

6. Remove the 2 rear footwell duct pin-type retainers.

7. Remove the rear footwell duct.

8. To install, reverse the removal procedure.
