Ford Truck
>>
2011
>>
Escape 4WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
Transaxle

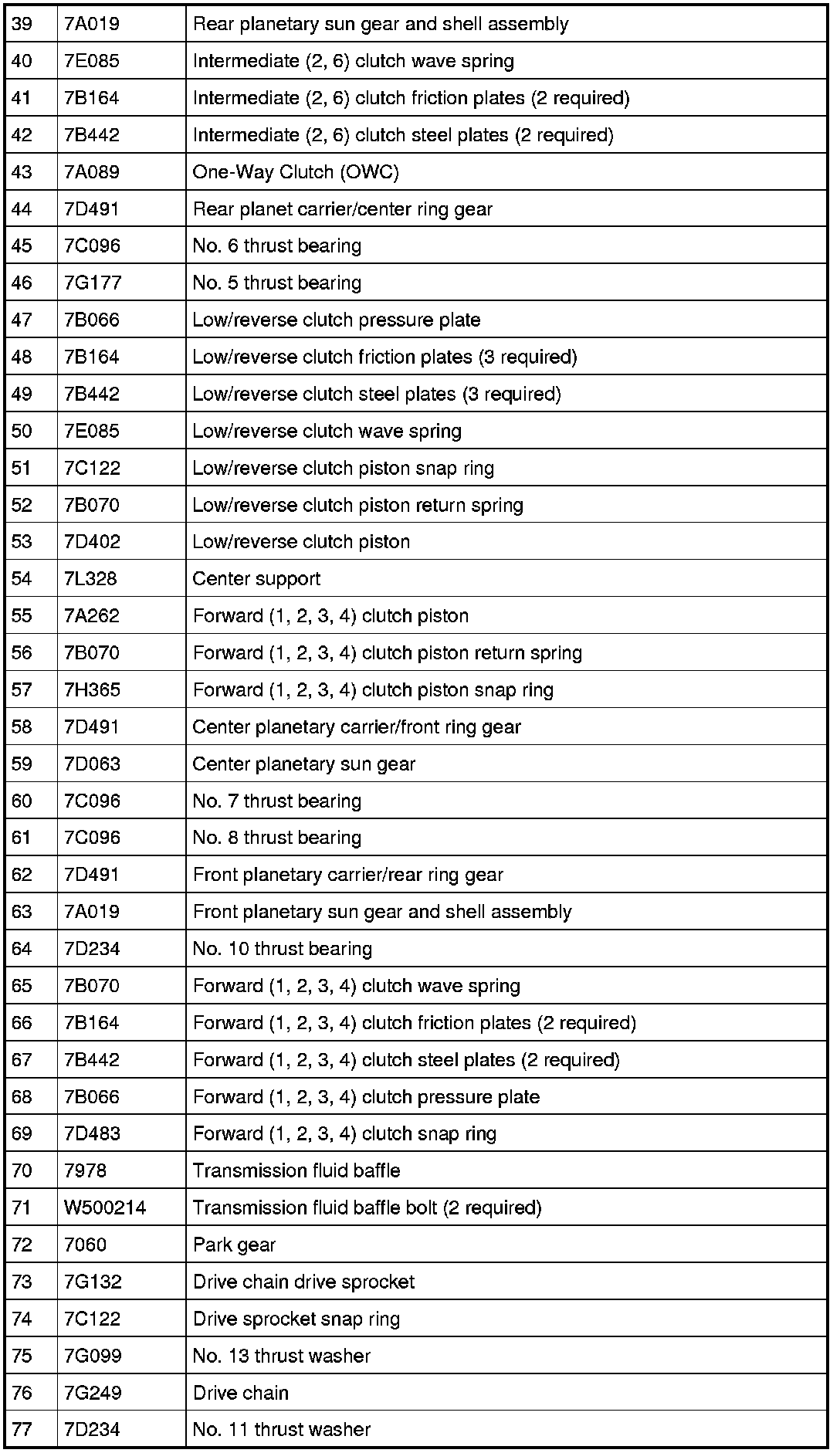

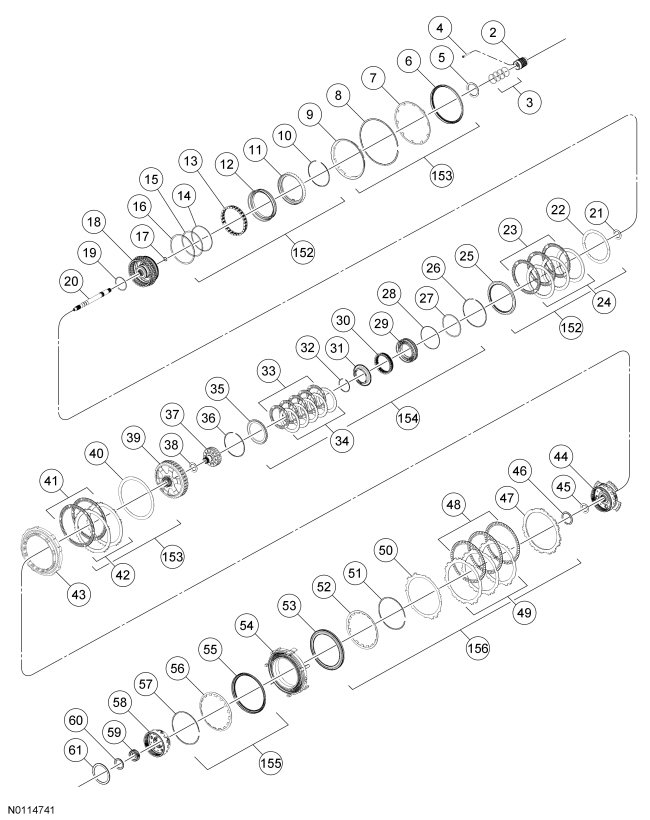

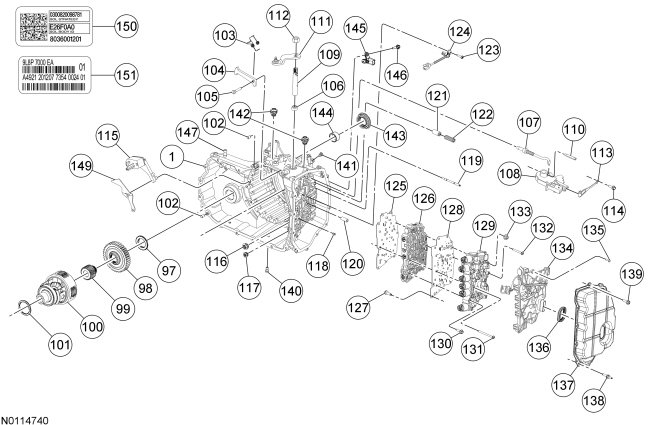

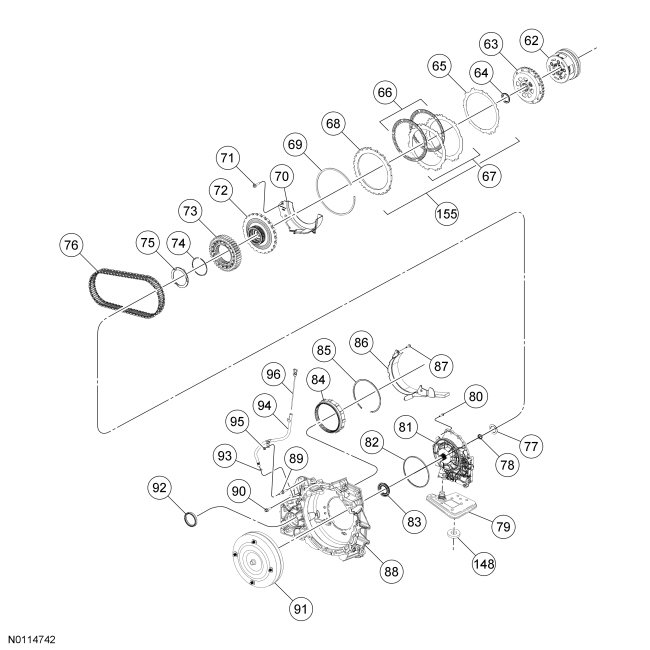

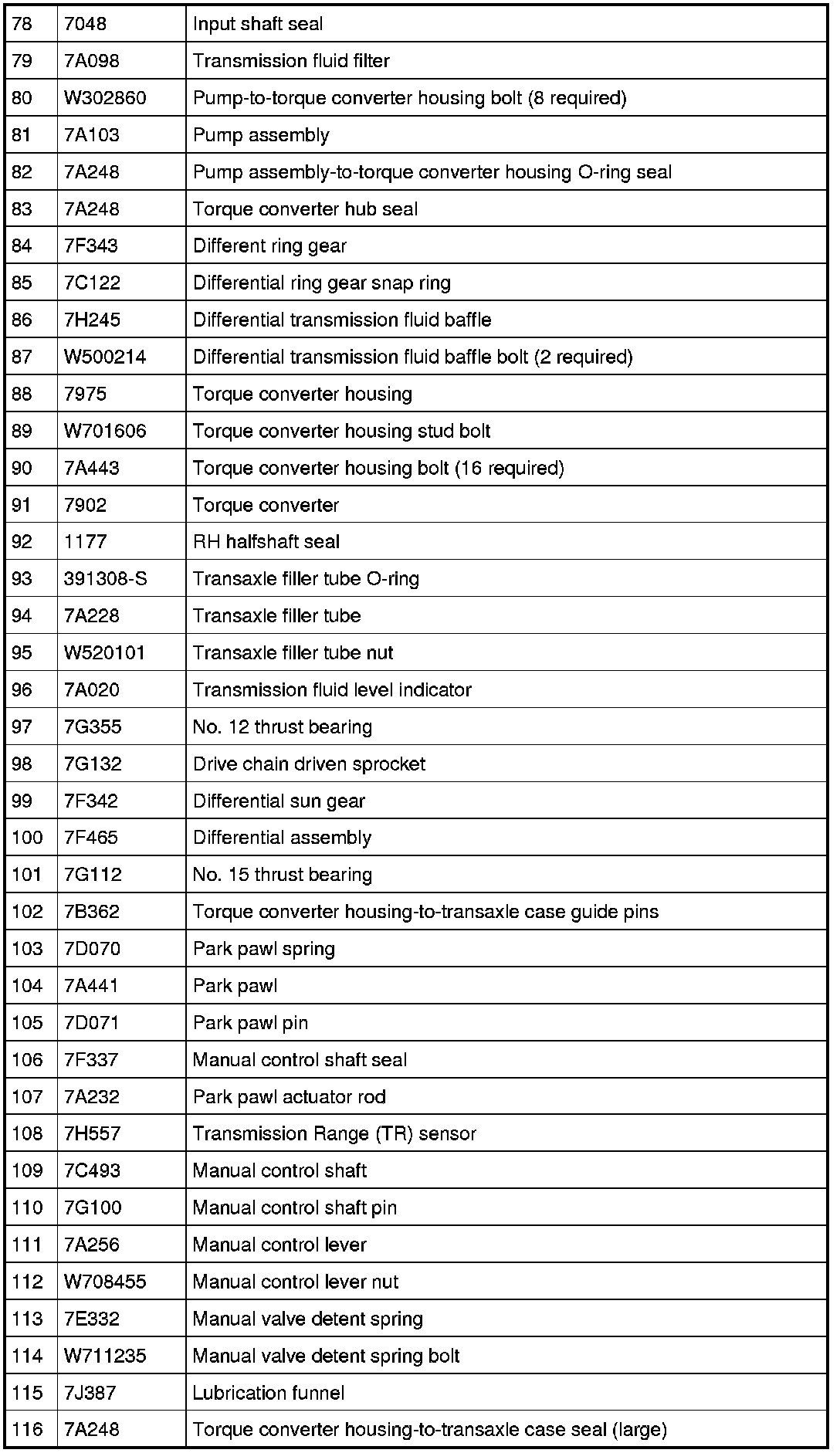

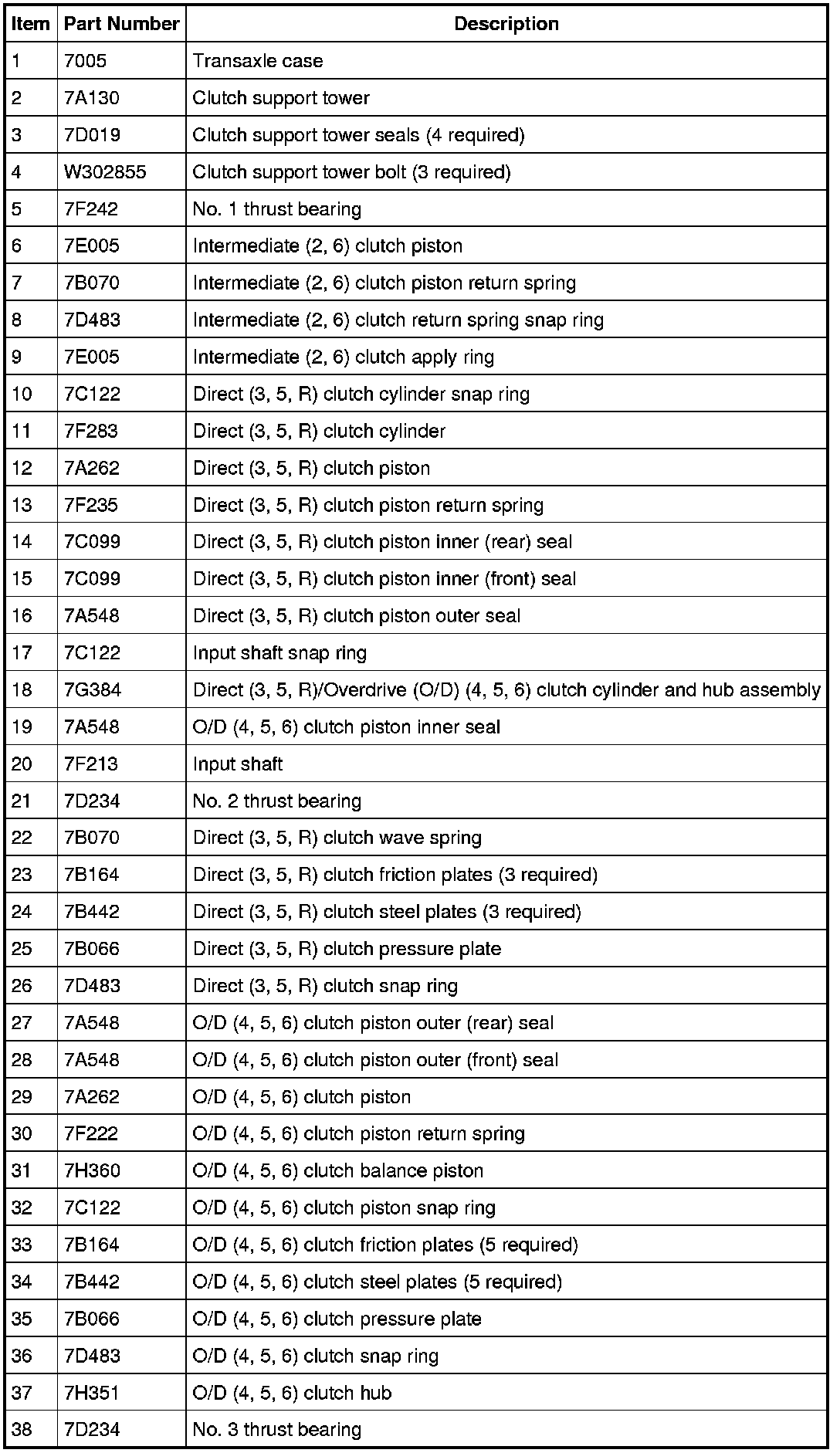

Disassembled Views
