Ford Truck
>>
2011
>>
Escape 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Utility Storage Compartment
Utility Storage Compartment

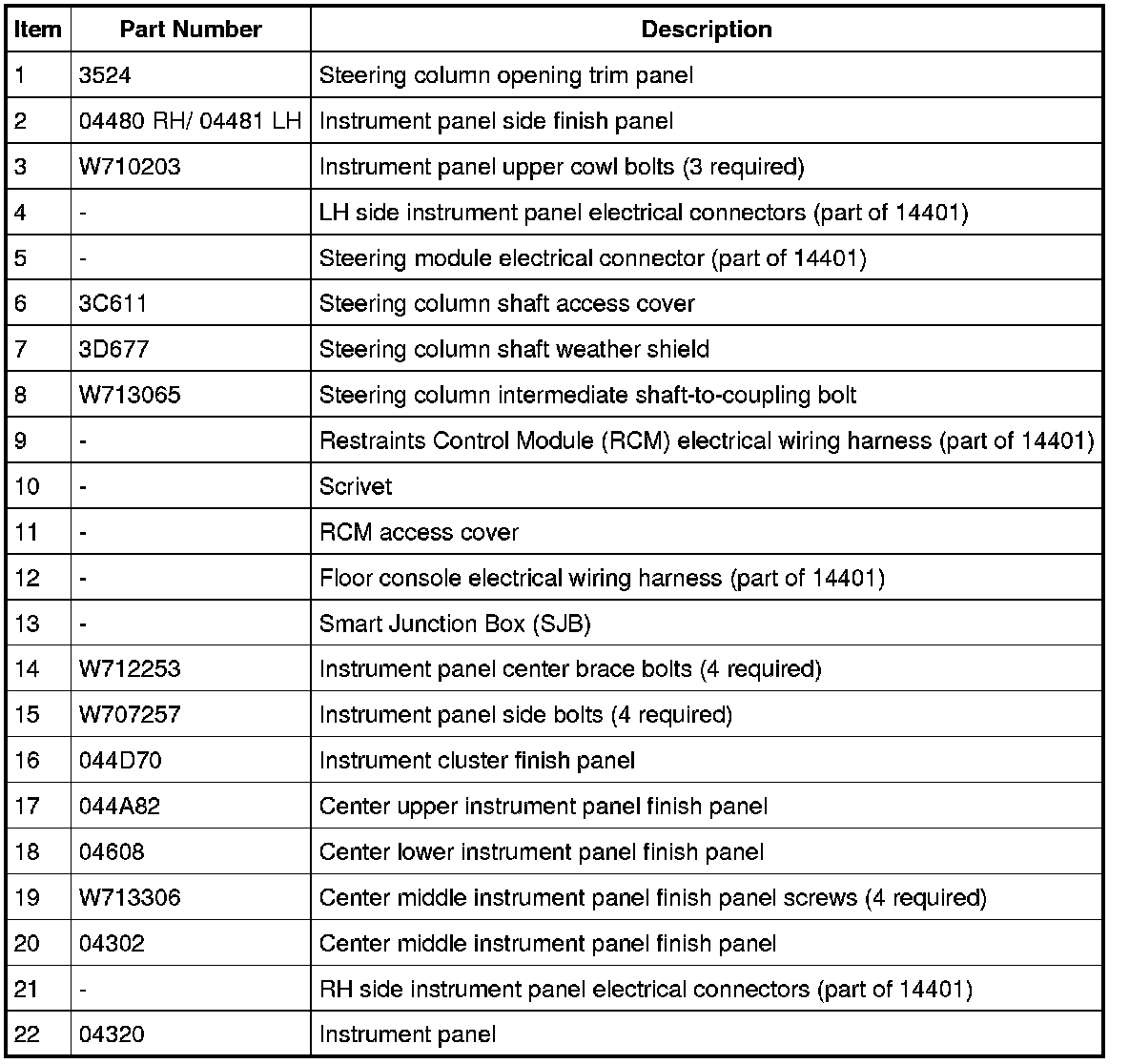

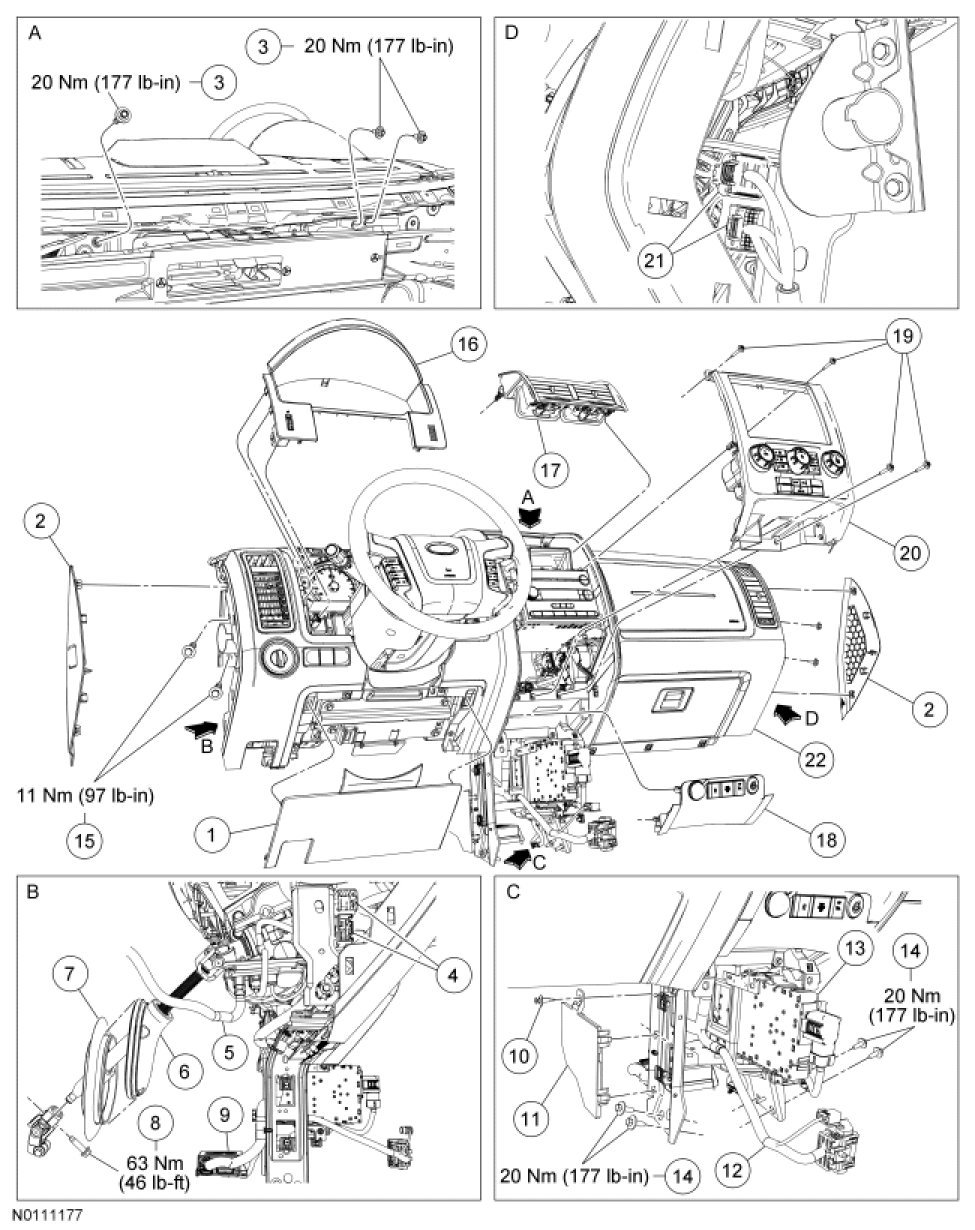

Instrument Panel - Exploded View
Instrument Panel
