Ford Truck
>>
2011
>>
Escape 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

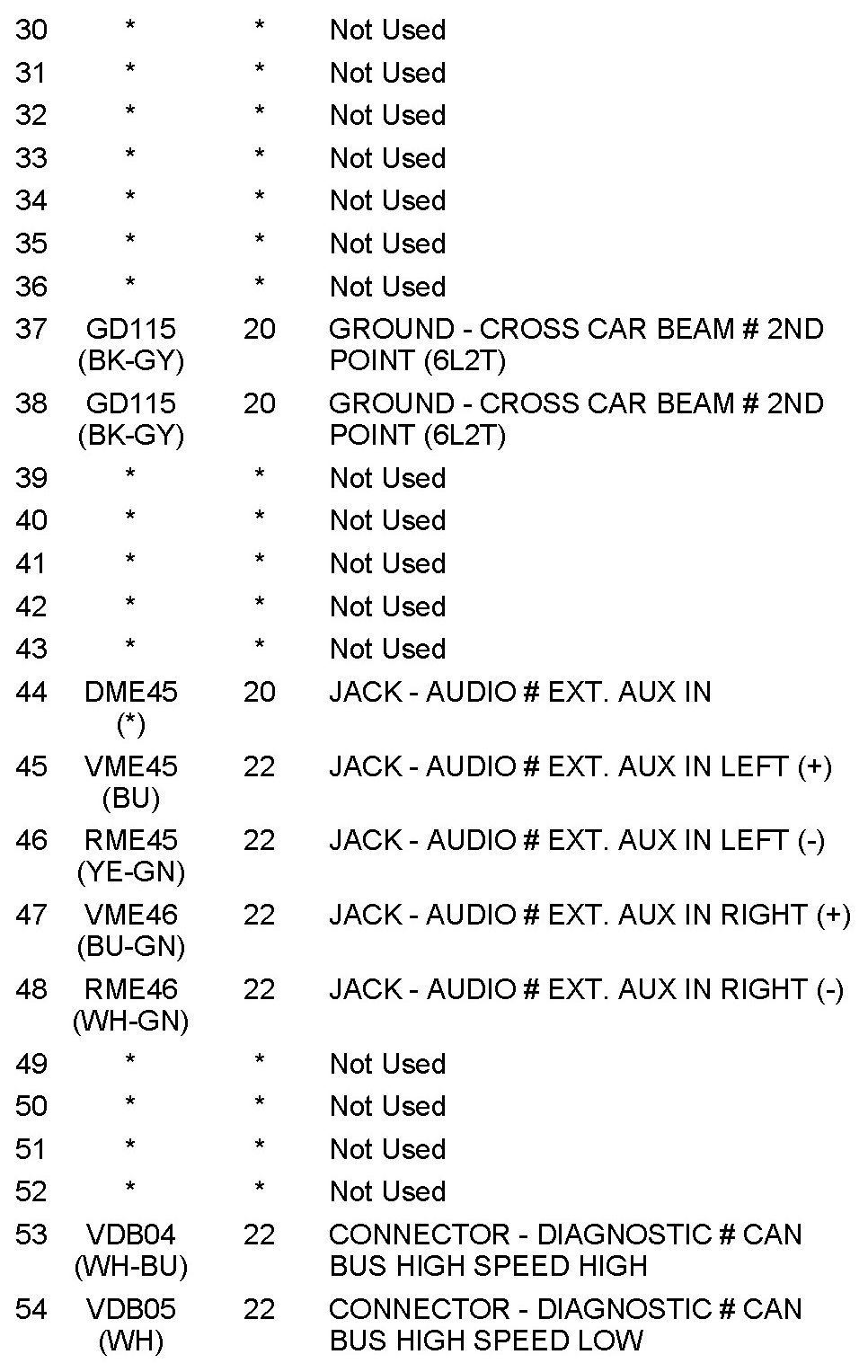

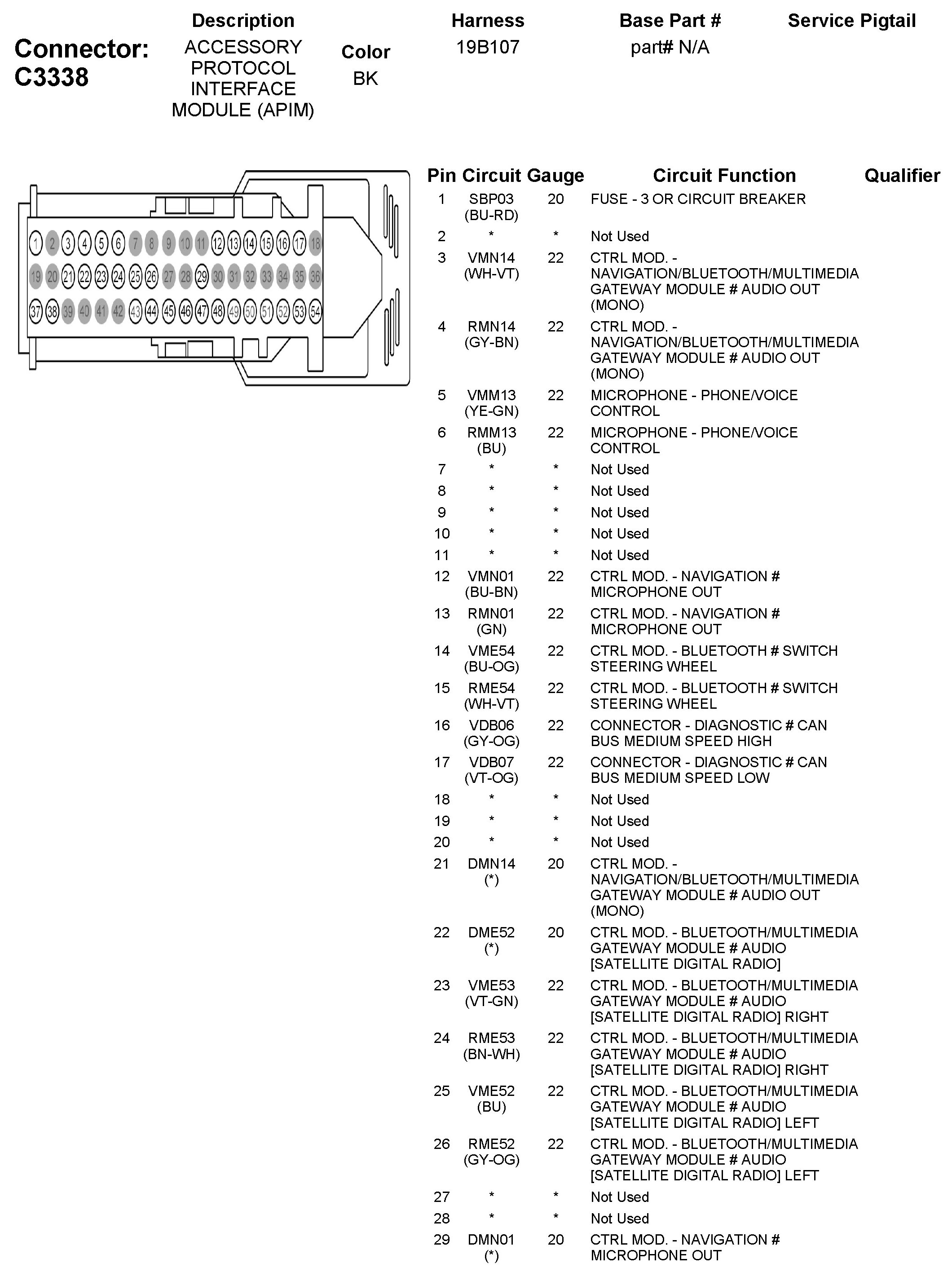

C3338 Accessory Protocol Interface Module (APIM)
C3338 Accessory Protocol Interface Module (APIM)
