Ford Truck
>>
2011
>>
Escape 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

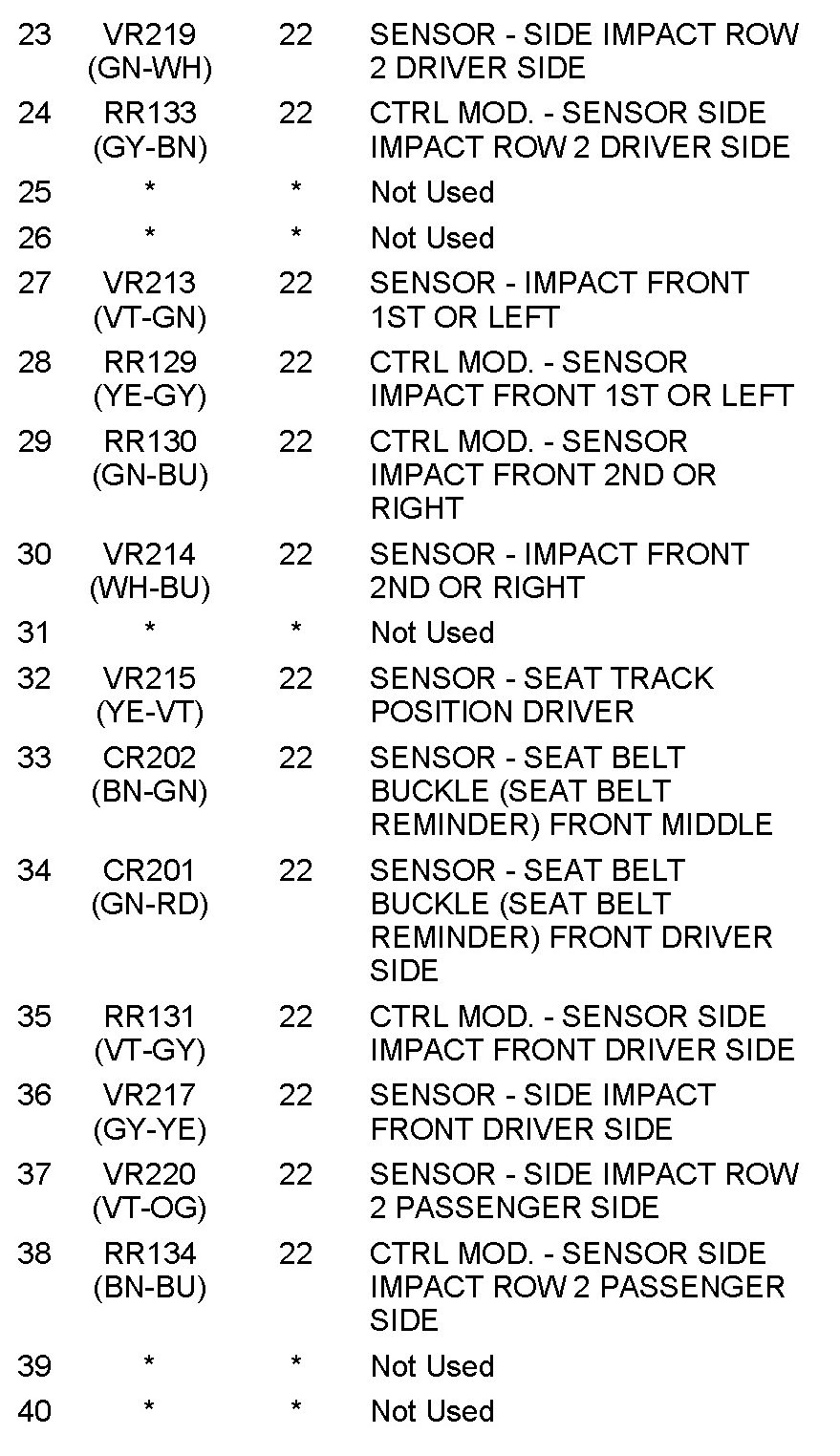

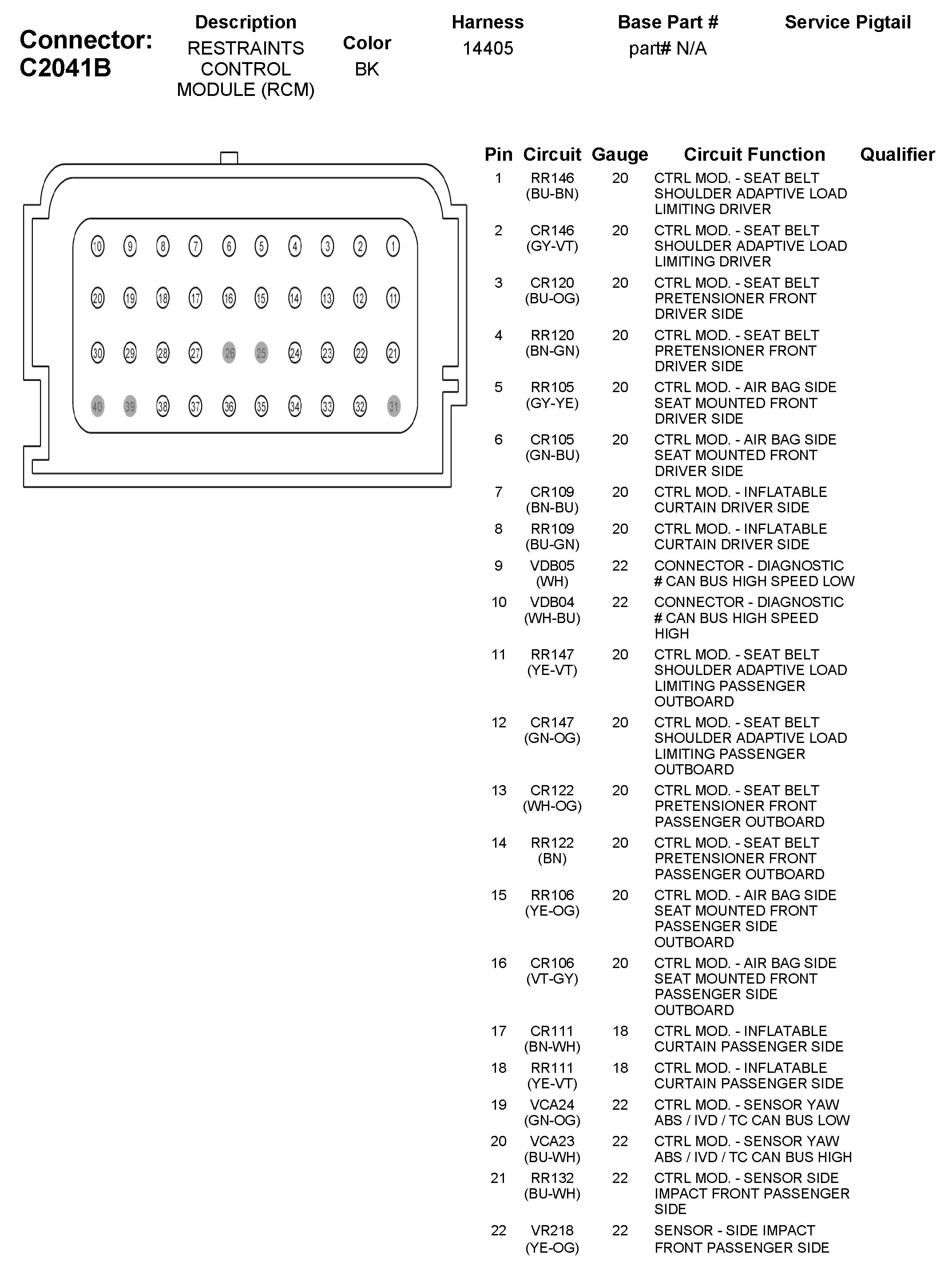

C2041B Restraints Control Module (RCM)
C2041B Restraints Control Module (RCM)
