Home
>>
Ford Truck
>>
2011
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
System Diagram
>>

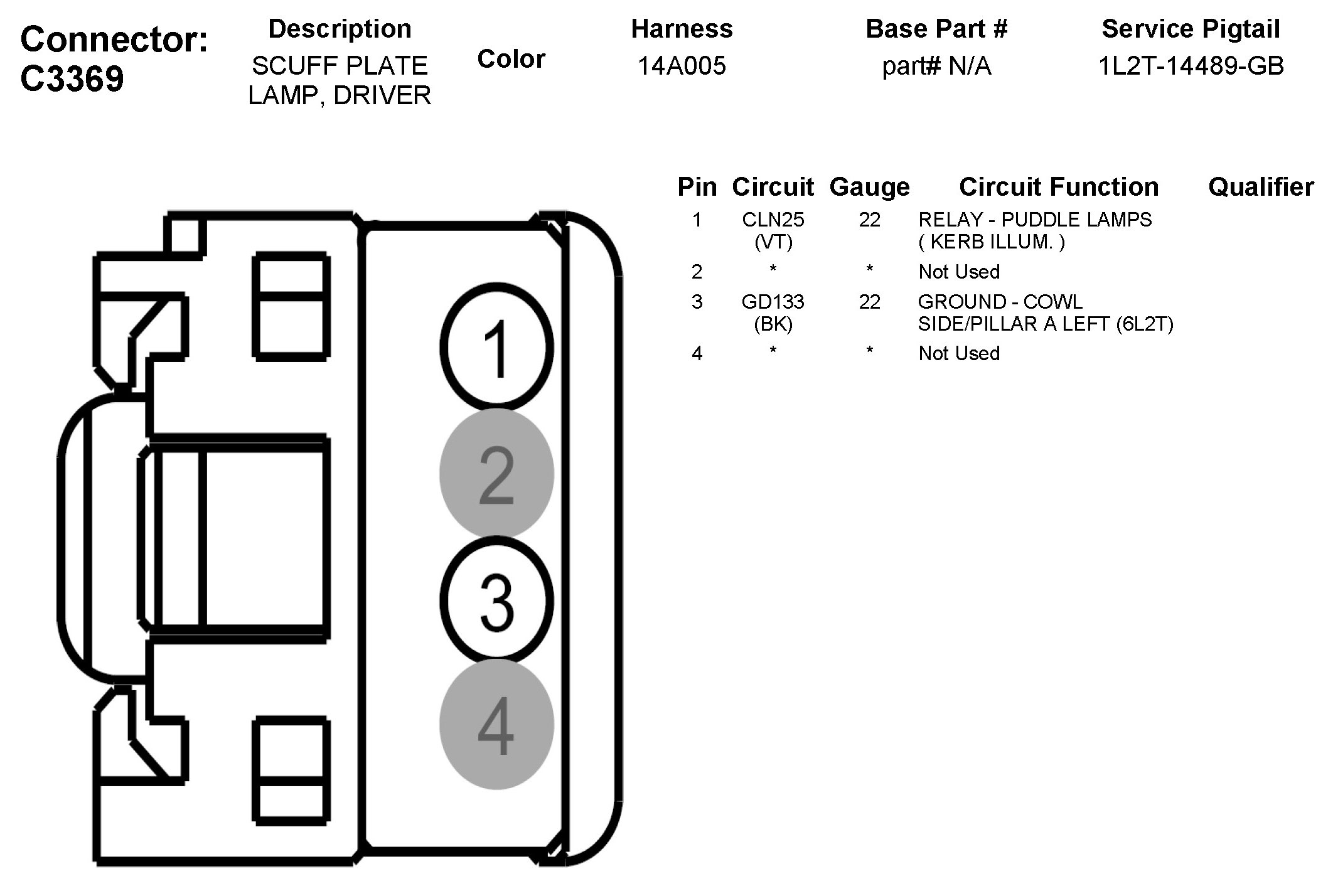

C3369 Scuff Plate Lamp, Driver
C3369 Scuff Plate Lamp, Driver
