Home
>>
Ford Truck
>>
2011
>>
E 350 V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
Main Control Valve Body
Disassembly

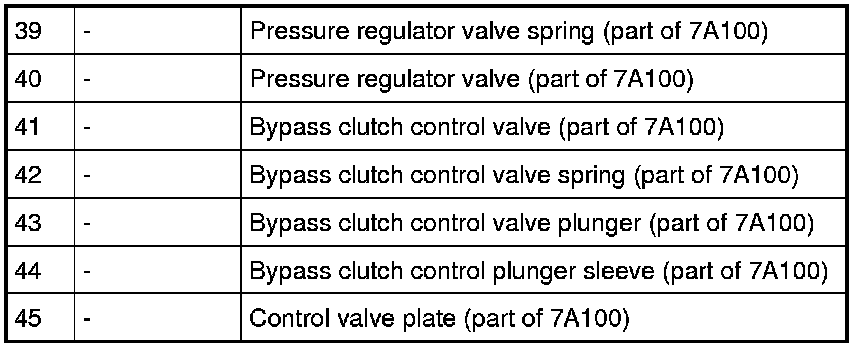

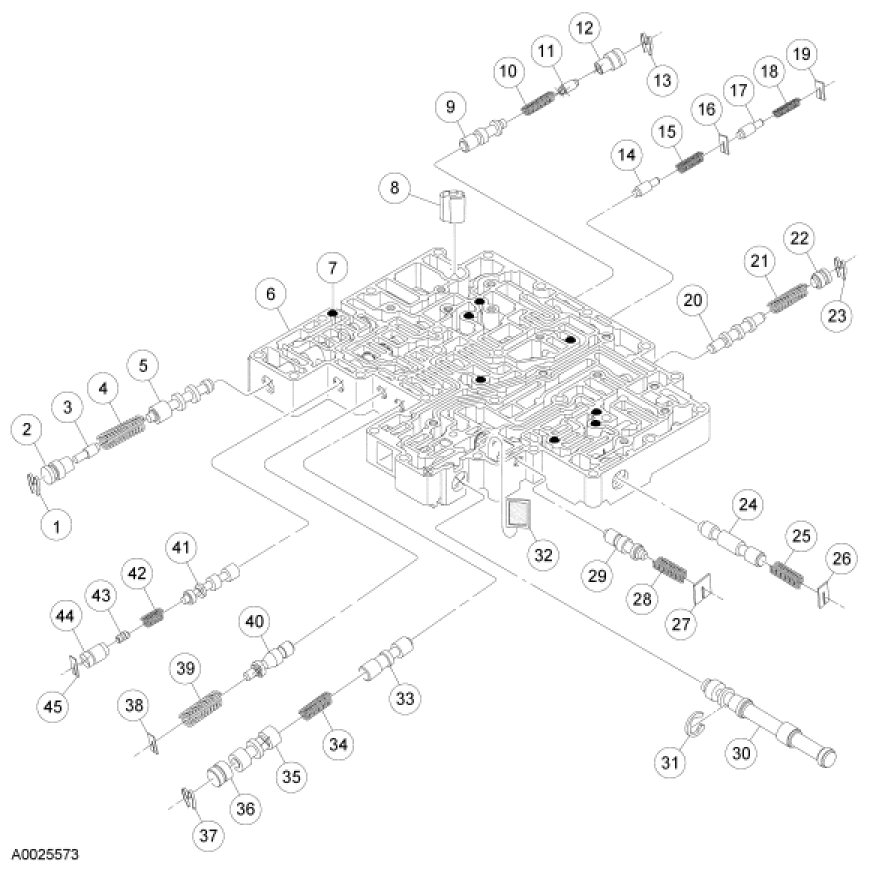

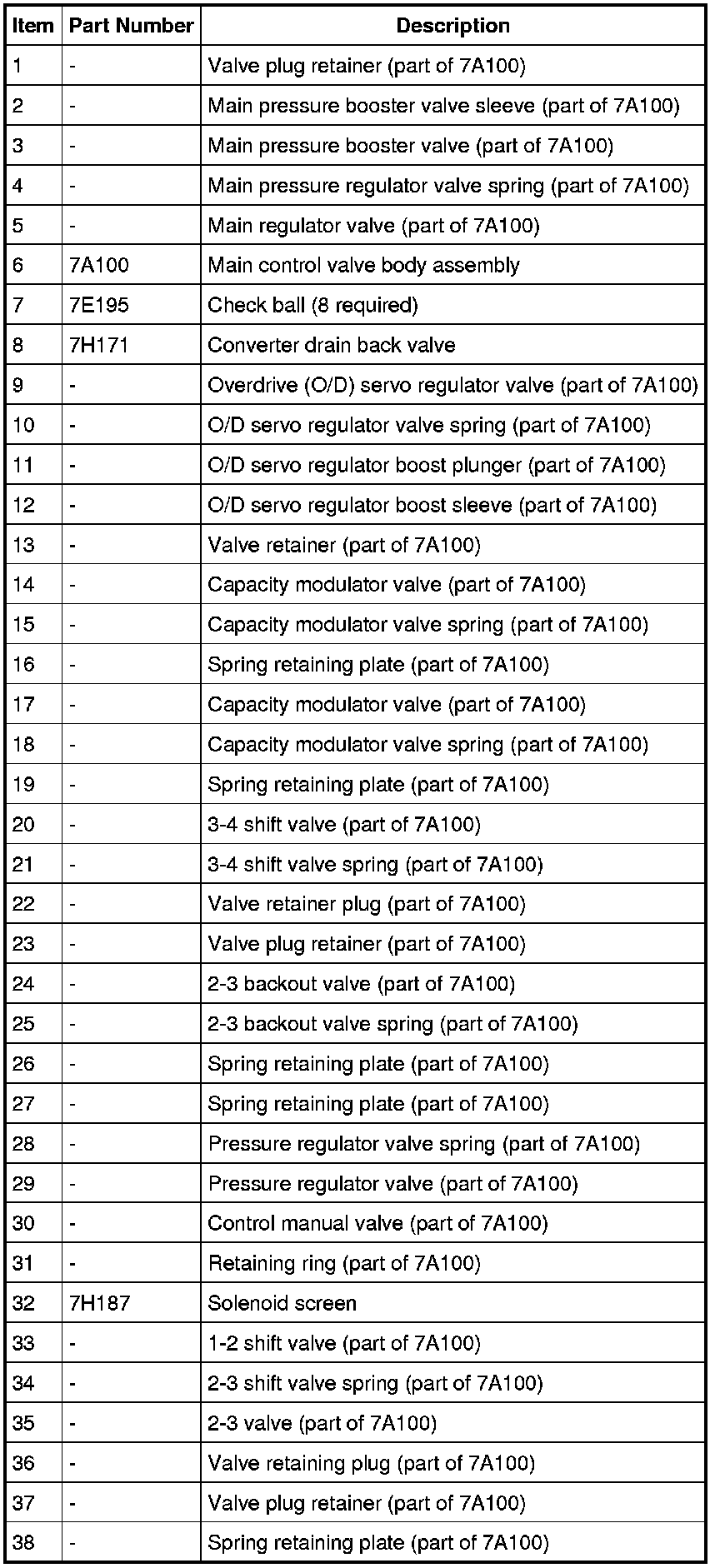

Main Control Valve Body - Disassembled View
