Home
>>
Ford Truck
>>
2011
>>
E 350 V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
>>

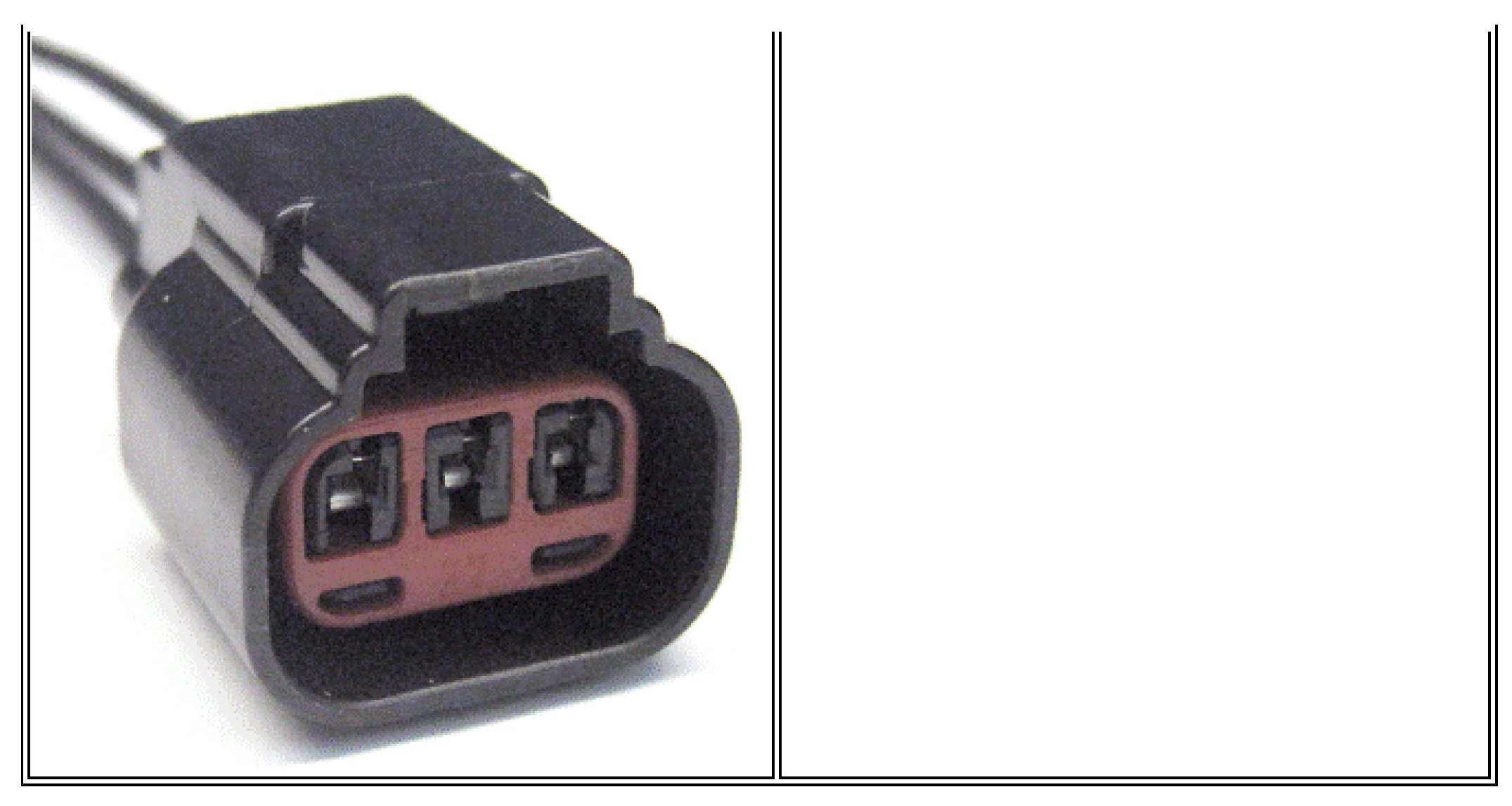

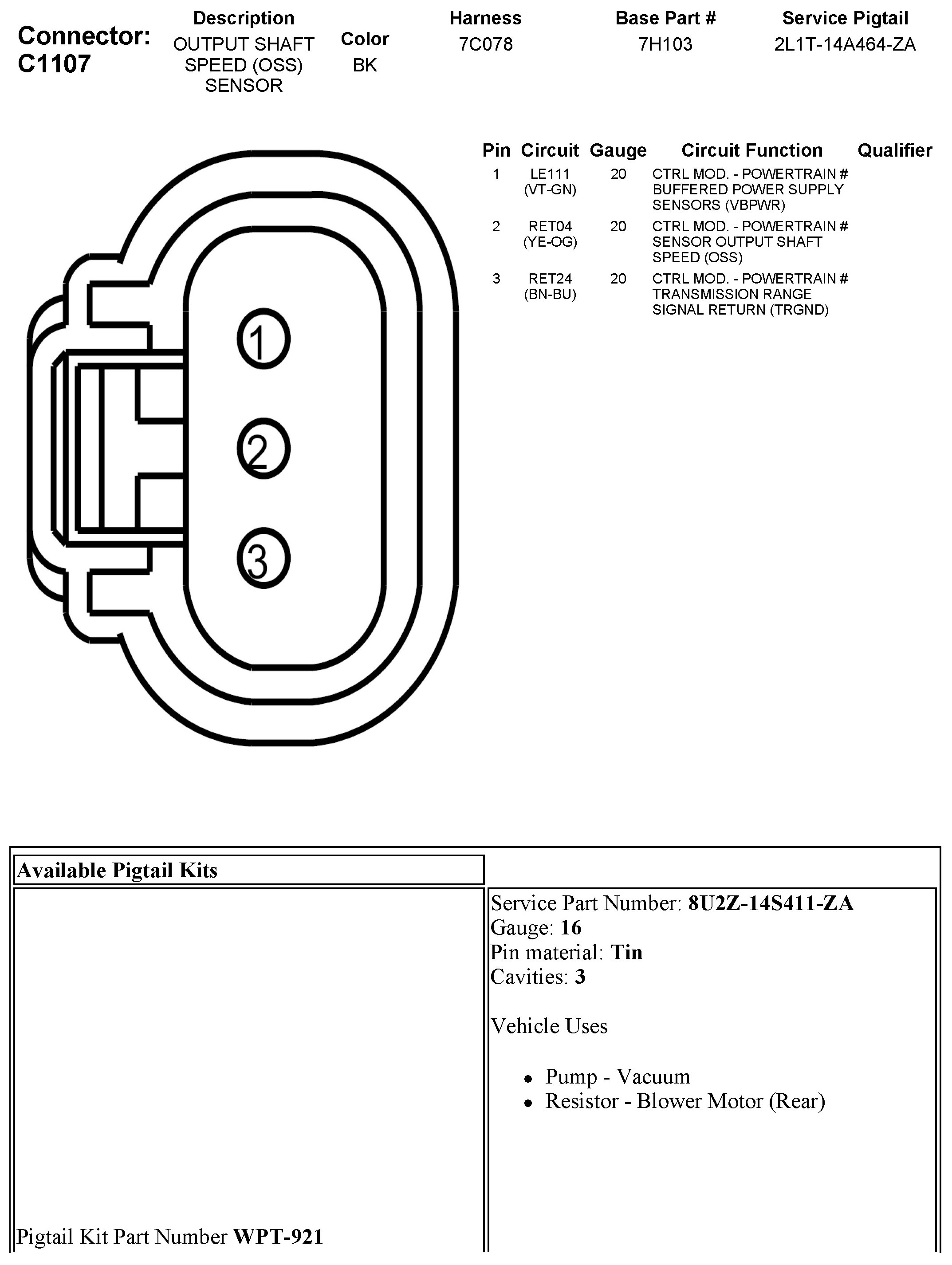

C1107 Output Shaft Speed (OSS) Sensor
C1107 Output Shaft Speed (OSS) Sensor
