Ford Truck
>>
2011
>>
E 350 V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

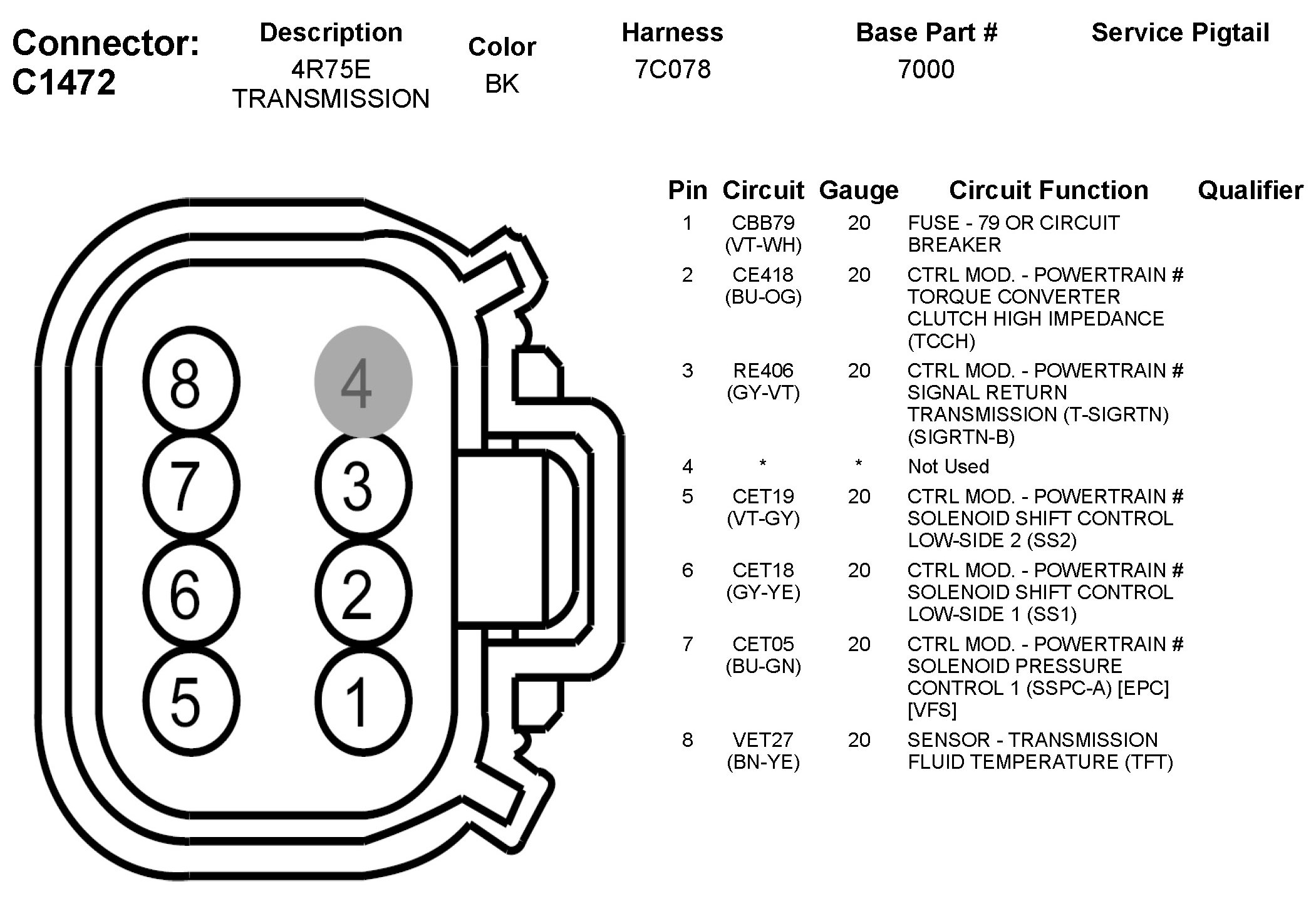

C1472 4R75E Transmission
C1472 4R75E Transmission
