Ford Truck
>>
2010
>>
Explorer AWD V8-4.6L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
5R55S
>>

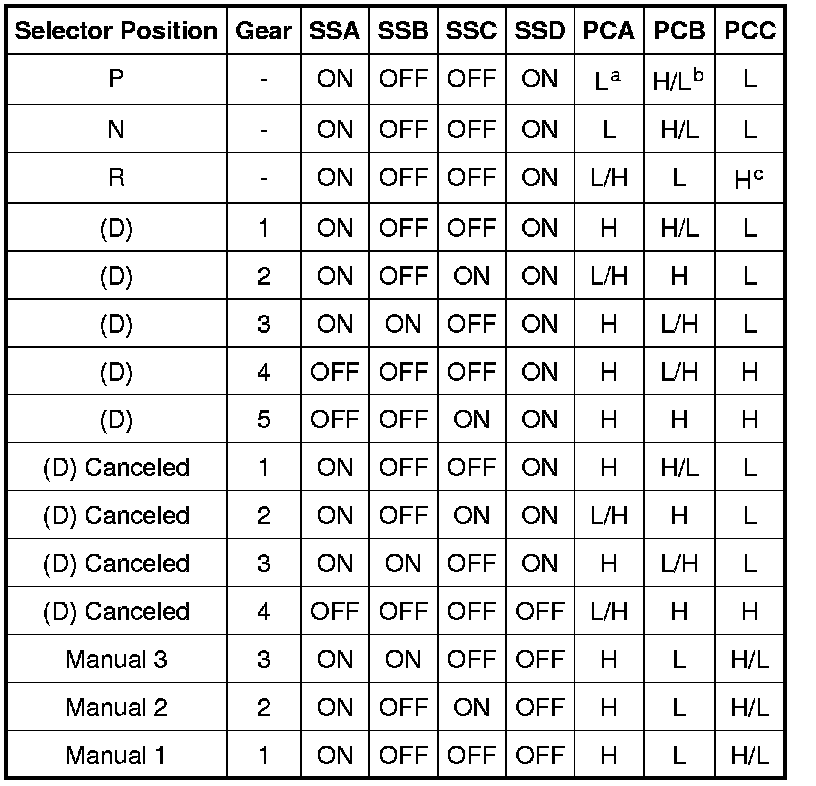

Solenoid Operation Chart
Solenoid Operation Chart
Solenoid Operation Chart
a
Low
b
PCM Controlled
c
High
