Ford Truck
>>
2010
>>
Explorer AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
5R55S
>>

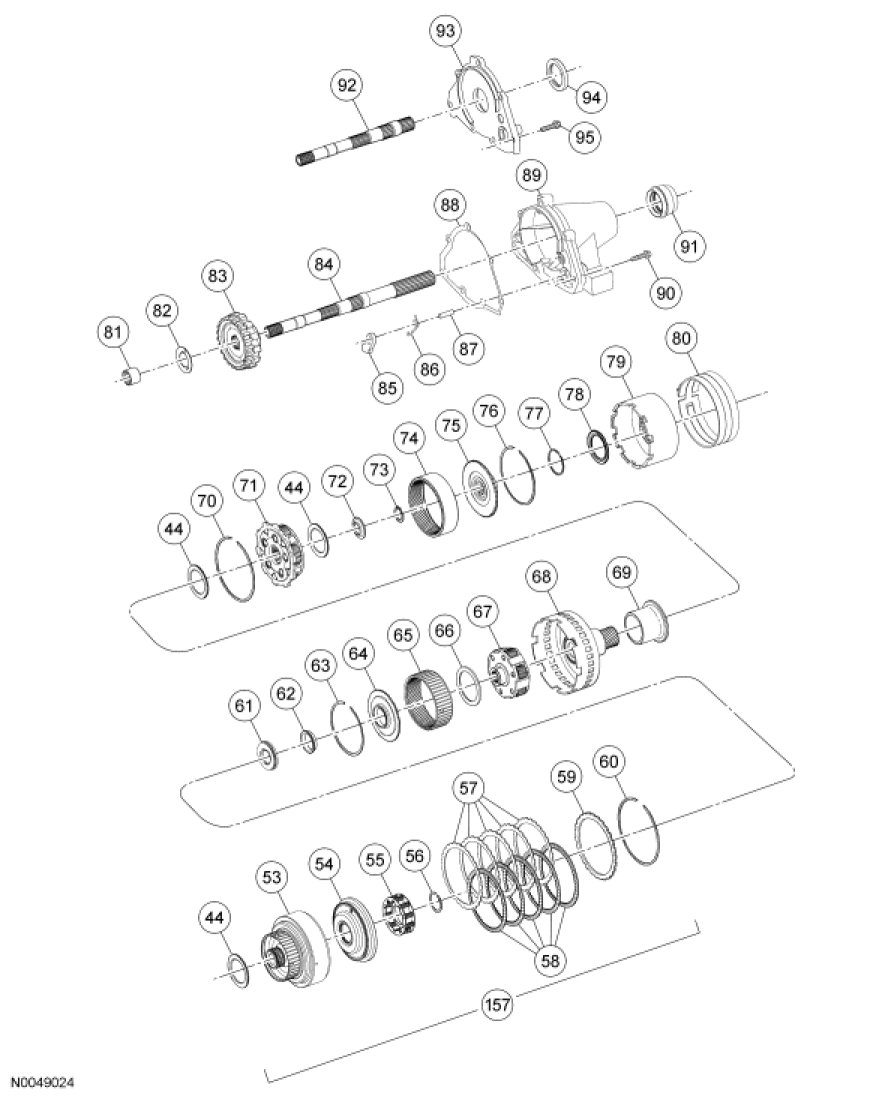

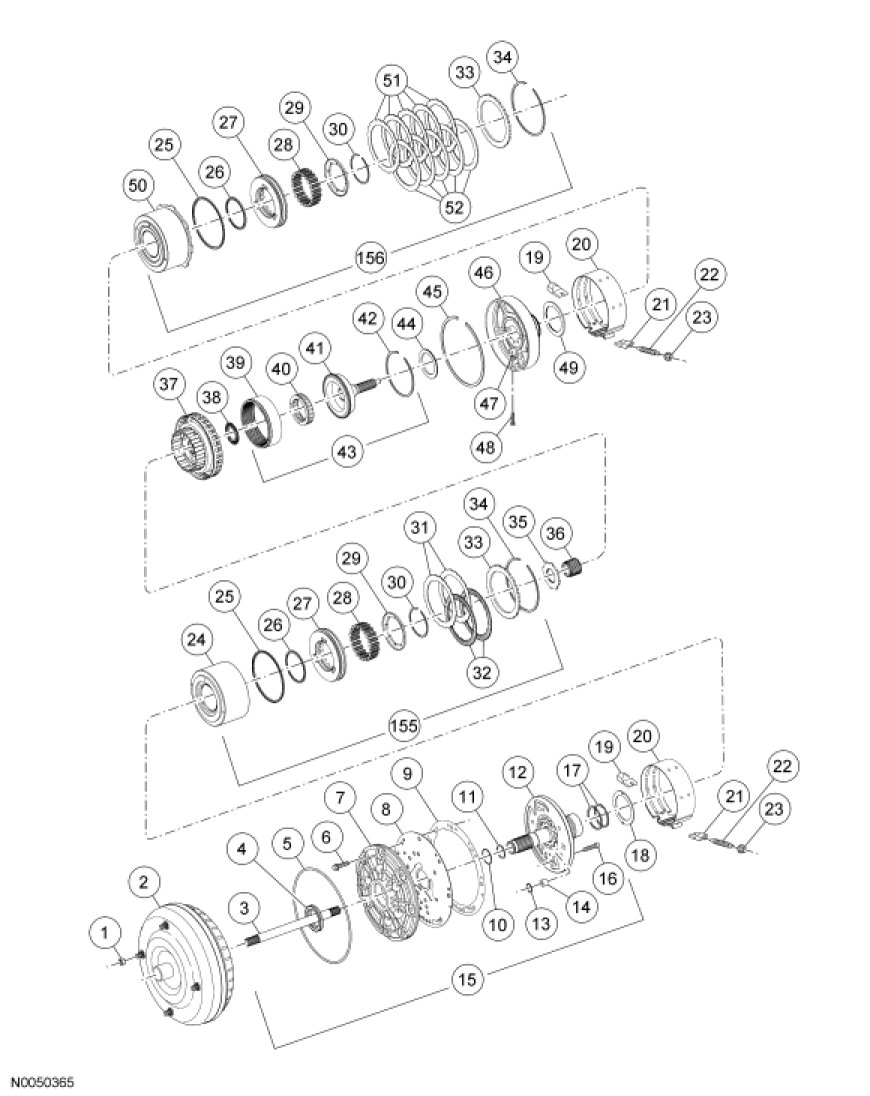

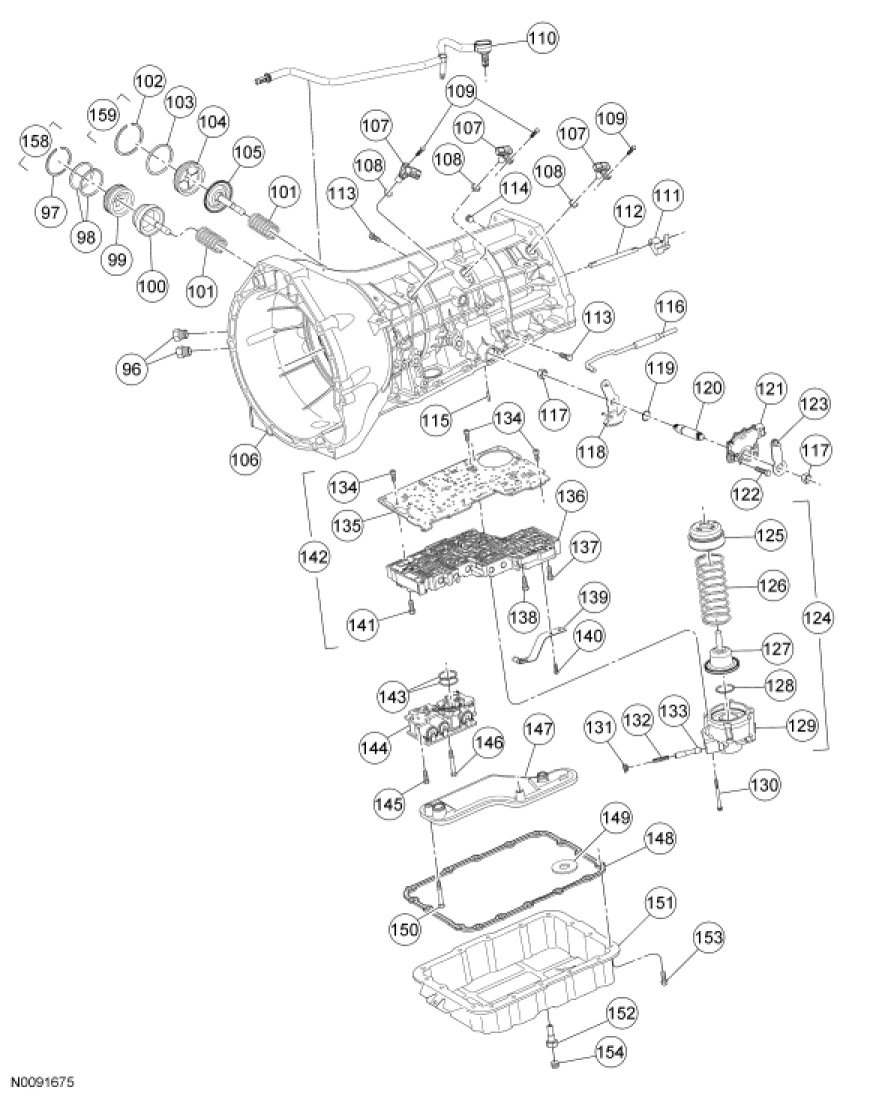

Disassembled Views
Disassembled Views
Transmission
Disassembled Views
Disassembled Views
Disassembled Views
